5

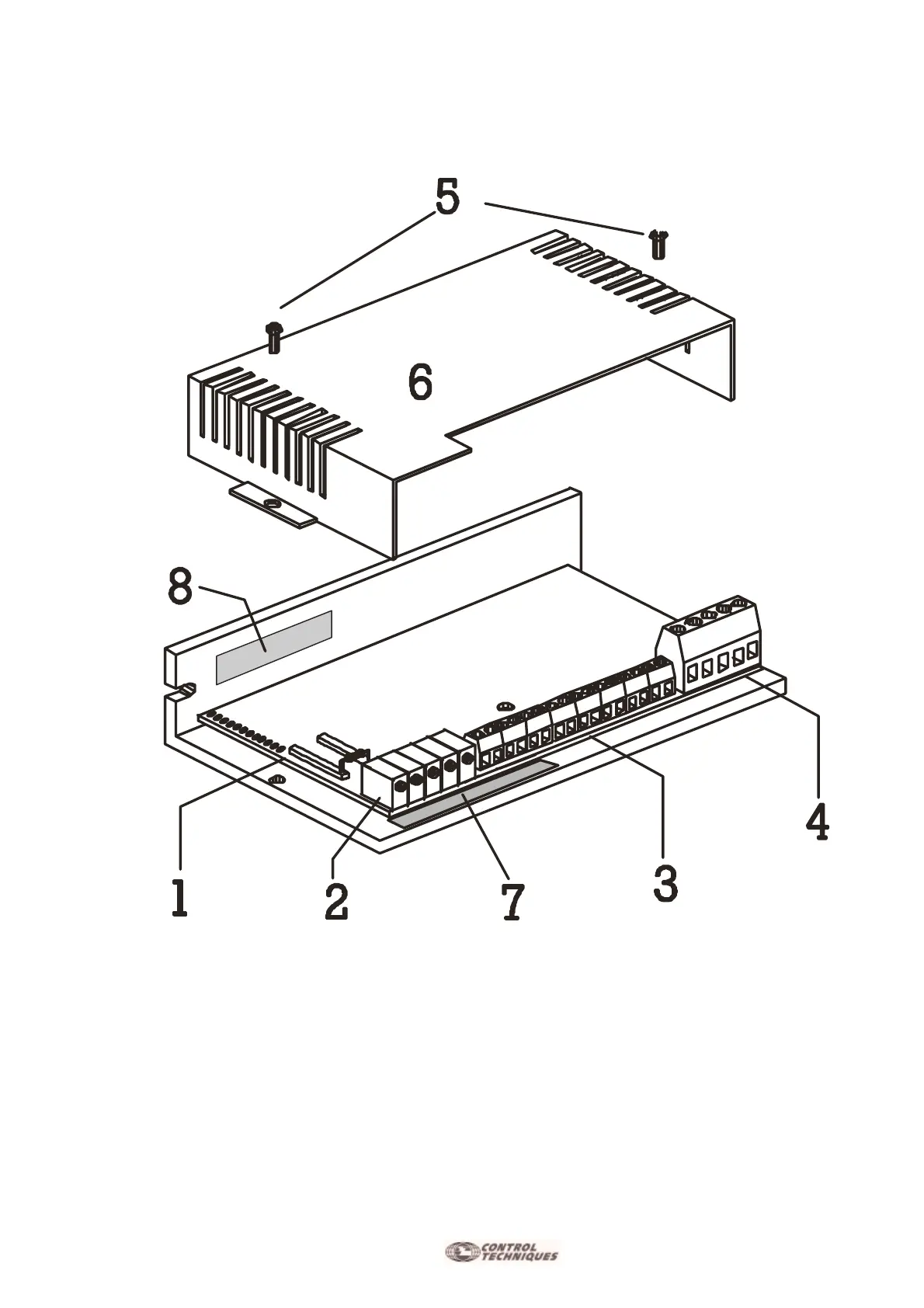

1.3 Drive Description
1 Calibration component area (socket and links)
2 Calibration Potentiometers
3 Signal terminals
4 Power terminals
5 Fixing screws
6 Module cover
7 Module Label
8 Serial number
