16

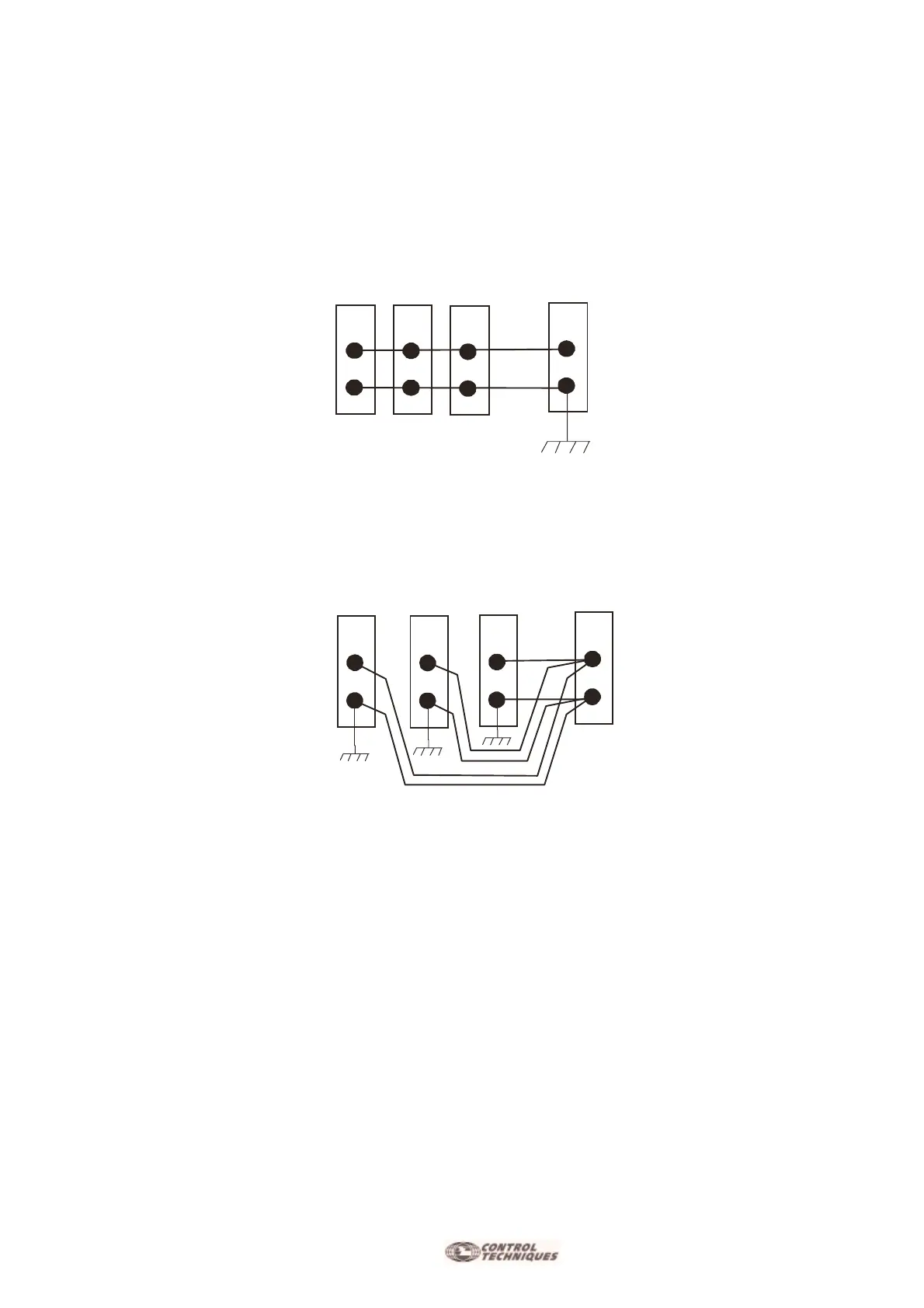

3.2 Multiple Connections
In case of Multi-axis application from a single power supply, use the "STARY" type of power supply
distribution. DO NOT use cascade type connections such as "SEQUENCE".
DO NOT USE THIS WIRING!
USE THIS WIRING!
Connect the MiniAx to the power supply using the shortest route possible. Max. 1m. (Contact CONTROL
TECHNIQUES for additional information.
+Vdc
-Vdc
+AT
+AT
+AT
- AT
- AT
- AT
Power Supply
MiniAx
+Vdc
-Vdc
+AT
+AT
+AT
- AT
- AT
- AT
Power Supply
MiniAx
