12 Unidrive M300/HS30 Quick Start Guide
Issue Number: 7

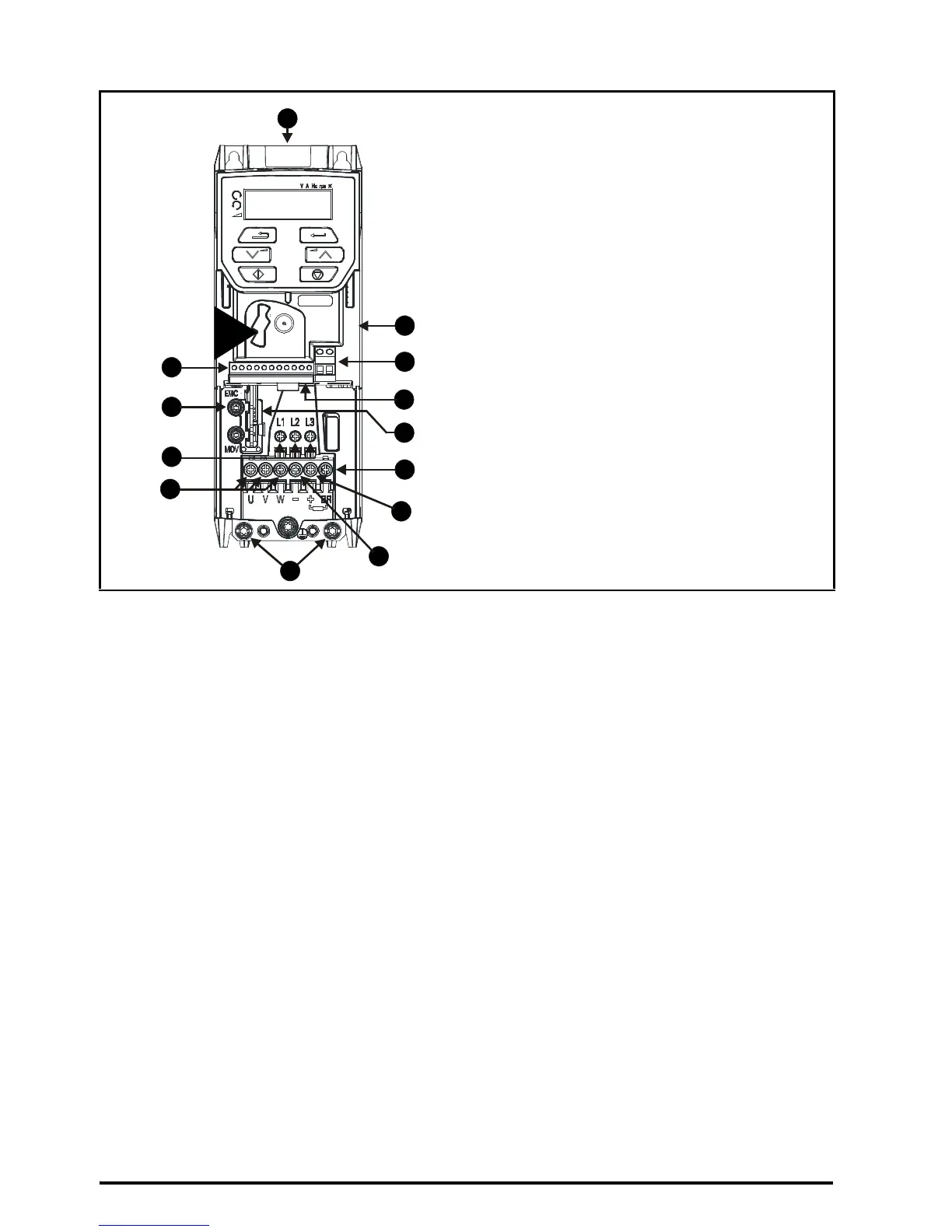

Figure 3-1 Feature diagram (size 2 shown)
* Before removing the screw, refer to section 4.5 EMC on page 22.
6
8
9
5
7
12
4
1
3
2
11
10
2
13
3
Key
1. Rating label (On side of drive)
2. Identification label
3. Option module connection
4. Relay connections
5. Control connections
6. Braking terminal
7. Internal EMC filter screw
*
8. DC bus +
9. DC bus -
10. Motor connections
11. AC supply connections
12. Ground connections
13. Safe Torque Off connections
