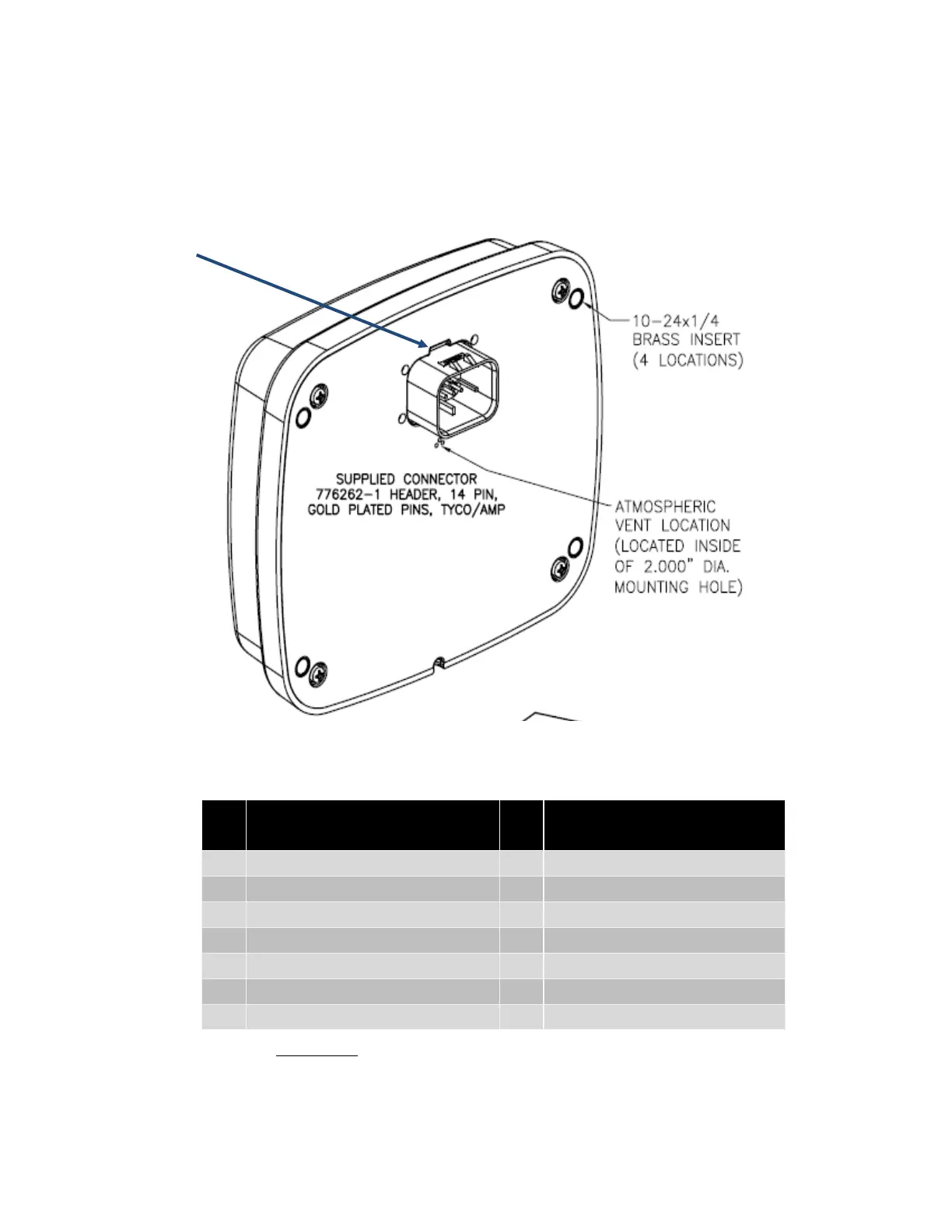

MODULE CONNECTORS

MODULE CONNECTOR (14 Pin)

Function

Fuel Solenoid/10 amp

MPU

Water Temp

Battery Positive

Key Auto Detect

Auto Crank Signal/ 10 amp

Switched Power to C3M

Preheat Signal 5 amp

Battery Negative

RY #1 Start Warning/5 amp

Fuel Level

Oil Pressure

Remote Start Input

Primary Connector

14 Pin

CAUTION:

N/O Contact of relay #1 is limited to providing a

ground signal. Common is tied to ground internally.
