MX2N series HMI PLC all in one programming manual
7 Pulse capture function application
1) Supports the pulse capture function of X0-X5, corresponding to: X0-M8170, X1-M8171,
X2-M8172, X3-M8173, X4-M8174, X5-M8175.

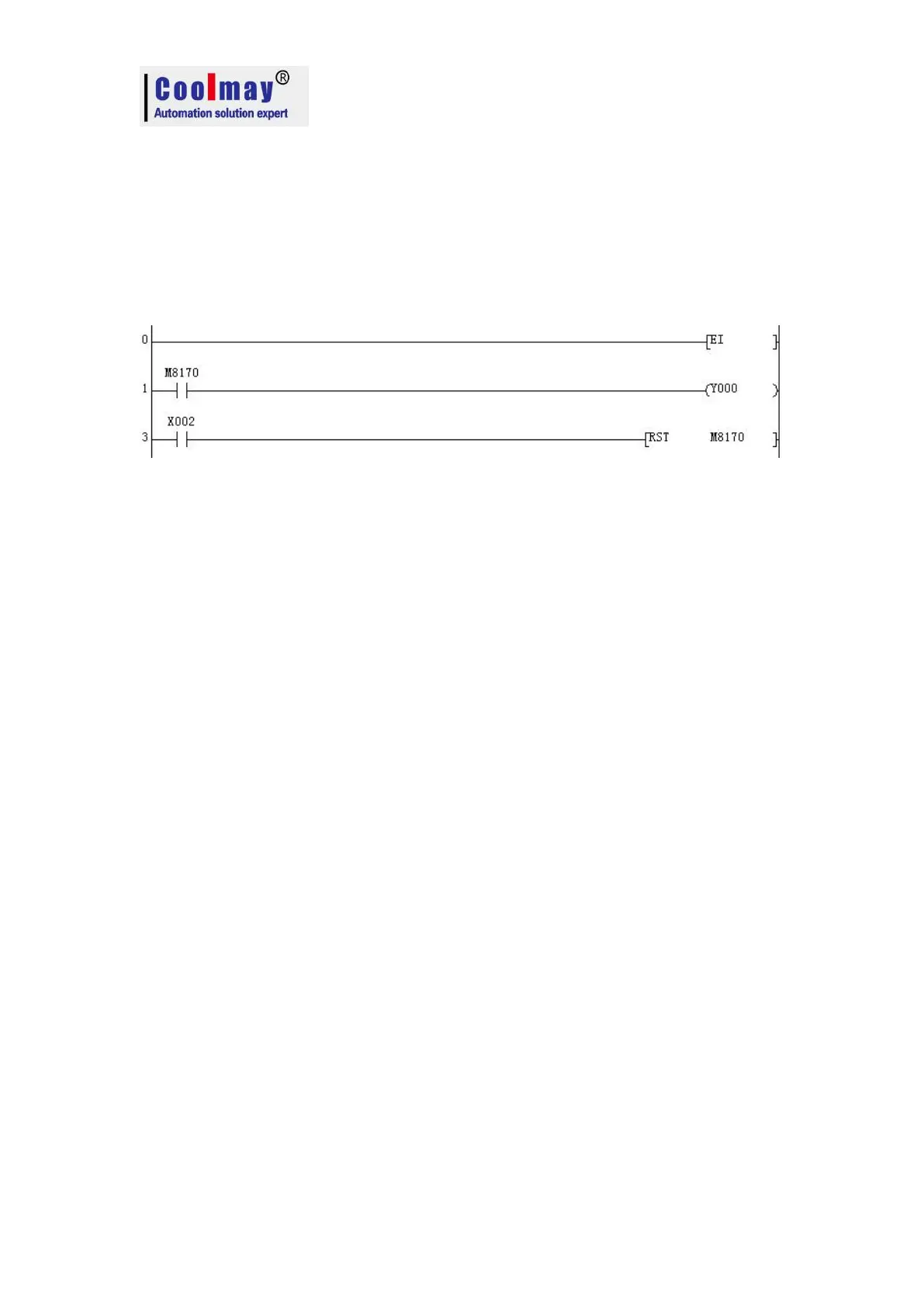

2) Using the pulse capture function, you need to use the EI instruction first. The example is
as follows:
