1.3 Hardware description

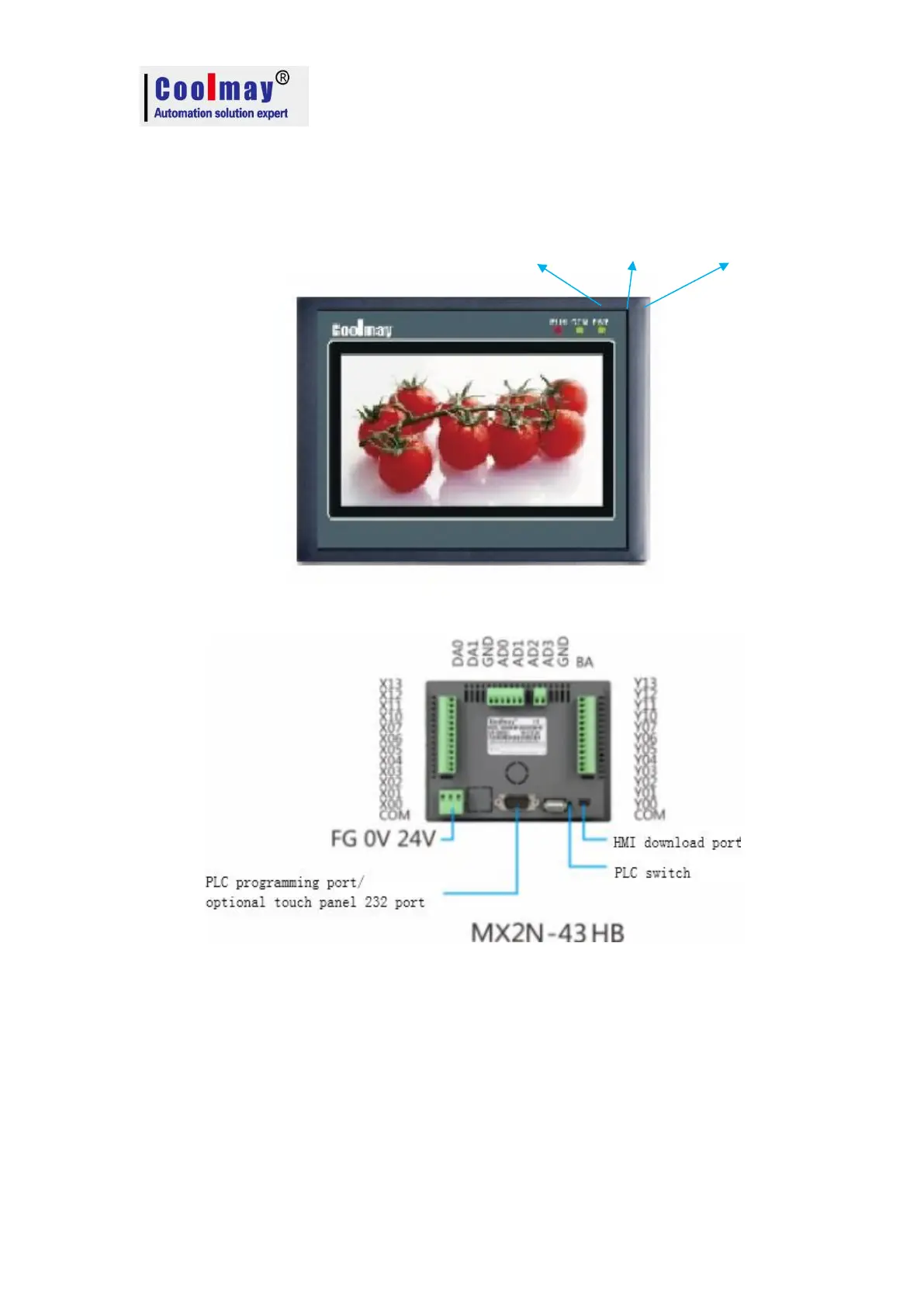

1.3.1 MX2N-43HB structure description and dimension
PLC Run light Com port of plc and hmi Power light
* Dimension(mm)
：
134*102*30
* Cutout size(mm)
：
119*93
* Installation: Clip installation
* Display size(mm): 97*56
