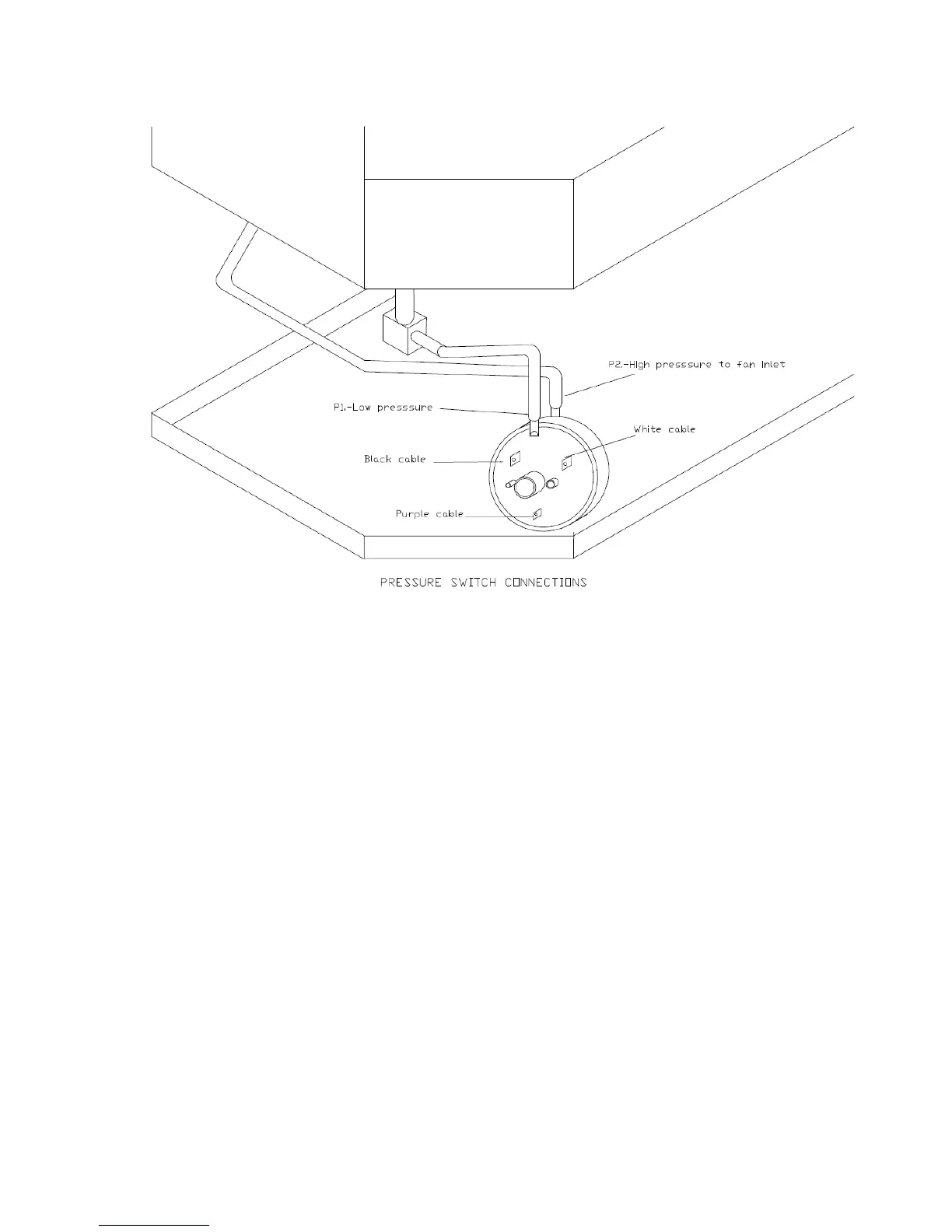

PRESSURE SWITCH
BURNER REMOVAL
ONLY TO BE CARRIED OUT BY AN COONARA AUTHORISED
TECHNITIAN
The Coonara Clear View & Barossa burner is of composite type. The bottom part is
made of Steel and the top is made of high temperature ceramic with the gas port holes
and features embedded in the casting. The burner does not require any maintenance
during the heater’s operational life. The accidental cracking of the ceramic logs or
burner could happen. If this occurs the part needs to be replaced by following these
instructions:
1. Remove 2 screws, one at each end of air intake. Then lift and pull the fascia towards
you. This will unclip the two hanging hooks.
2. Undo the 4screws holding glass frame, 2 each side of the door.
3. Carefully remove ceramic logs. Take note of positioning of all logs for when you
reassemble logs. (see photos of log set positioning on page 20-22)
4. Remove M5 nut from under left hand side of the firebox. Then undo the gas pipe
for the burner injector. Then remove brass nut from injector fitting. This will allow
you to carefully lift and remove the whole burner assembly.
5. To assemble follow the same steps in reverse order.
