Electrical Operation of Closing
Solenoid Test
Refer to Figure 13 to assemble and connect the equip-
ment. The recloser head casting and the control must be
solidly grounded and in a test cage.
1. With the yellow manual operating handle down to
LOCKOUT position, energize the high-voltage trans-
former.
2. Using a hotstick, raise the yellow operating handle to
the CLOSED position. The recloser should close
immediately, indicating correct operation of the clos-
ing solenoid.
Type VXE Single-Phase Electronically Controlled Recloser Installation and Operation Instructions
18

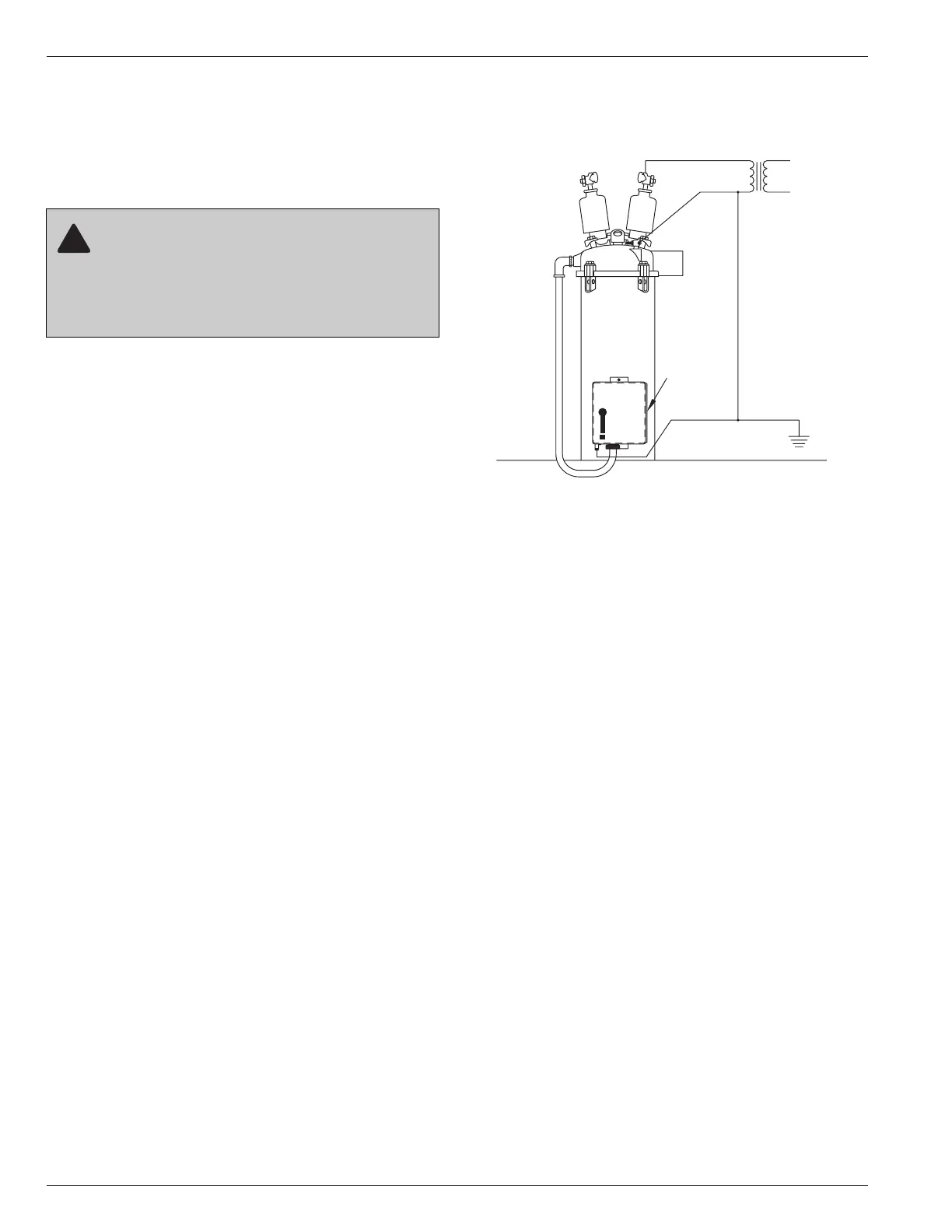

Figure 13.
Suggested test diagram for high-voltage closing.
WARNING: Hazardous voltage. The switchgear
and high voltage transformer must be in a test
cage or similar protective device to prevent accidental
contact with the high voltage parts. Solidly ground all
equipment. Failure to comply can result in death,
severe personal injury, and equipment damage. T221.3
* Source shall not limit the kVA output of the transformer.
