14 of 20 496371 Issue 1
5 1 & 2 Latching, 3-8 Momentary
on
1 2 3 4 5 6 7 8
6 1-8 Momentary
on
1 2 3 4 5 6 7 8
7 1-8 Latch ON, Manual Clear
on
1 2 3 4 5 6 7 8
8 1-8 Toggle
on
1 2 3 4 5 6 7 8

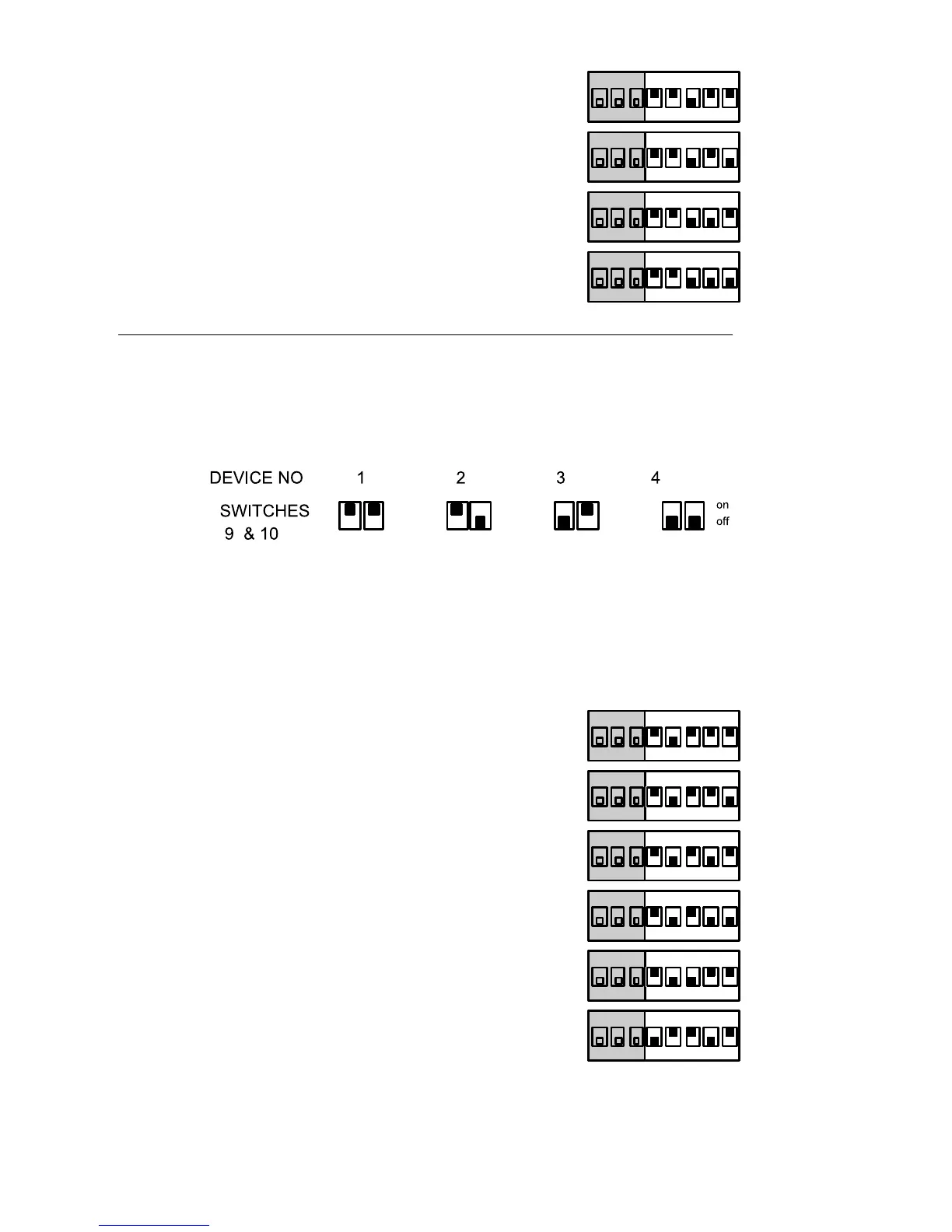

Modes 9 To 13, and 19 - Transmitter Switch Settings
At the transmitter:
• Set switches 1 to 8 to the site code
• Set switches 9 and 10 to a device number in the range 1 to 4 as
follows:
The receiver allocates two channels to each device (for example channel 1
and 2 to device 1, channel 3 and 4 to device 2). Odd numbered channels
correspond to channel A from the transmitter. Even numbered channels
correspond to channel B from the transmitter.
MODE SW SETTING
9 1,3,5,7 Momentary, 2,4,6,8 Latching
on
1 2 3 4 5 6 7 8
10 3,5,7 Momentary, 1,2,4,6,8 Latching
on
1 2 3 4 5 6 7 8
11 5,7 Momentary, 1,2,3,4,6,8 Latching
on
1 2 3 4 5 6 7 8
12 7 Momentary, 1-6, & 8 Latched
on
1 2 3 4 5 6 7 8
13 1-8 Latching
on
1 2 3 4 5 6 7 8
19 1-8 Momentary
on
1 2 3 4 5 6 7 8
Modes 9 to 13, and 19 4618
