Cooper VR Series - Type VR Contact Assembly Parts

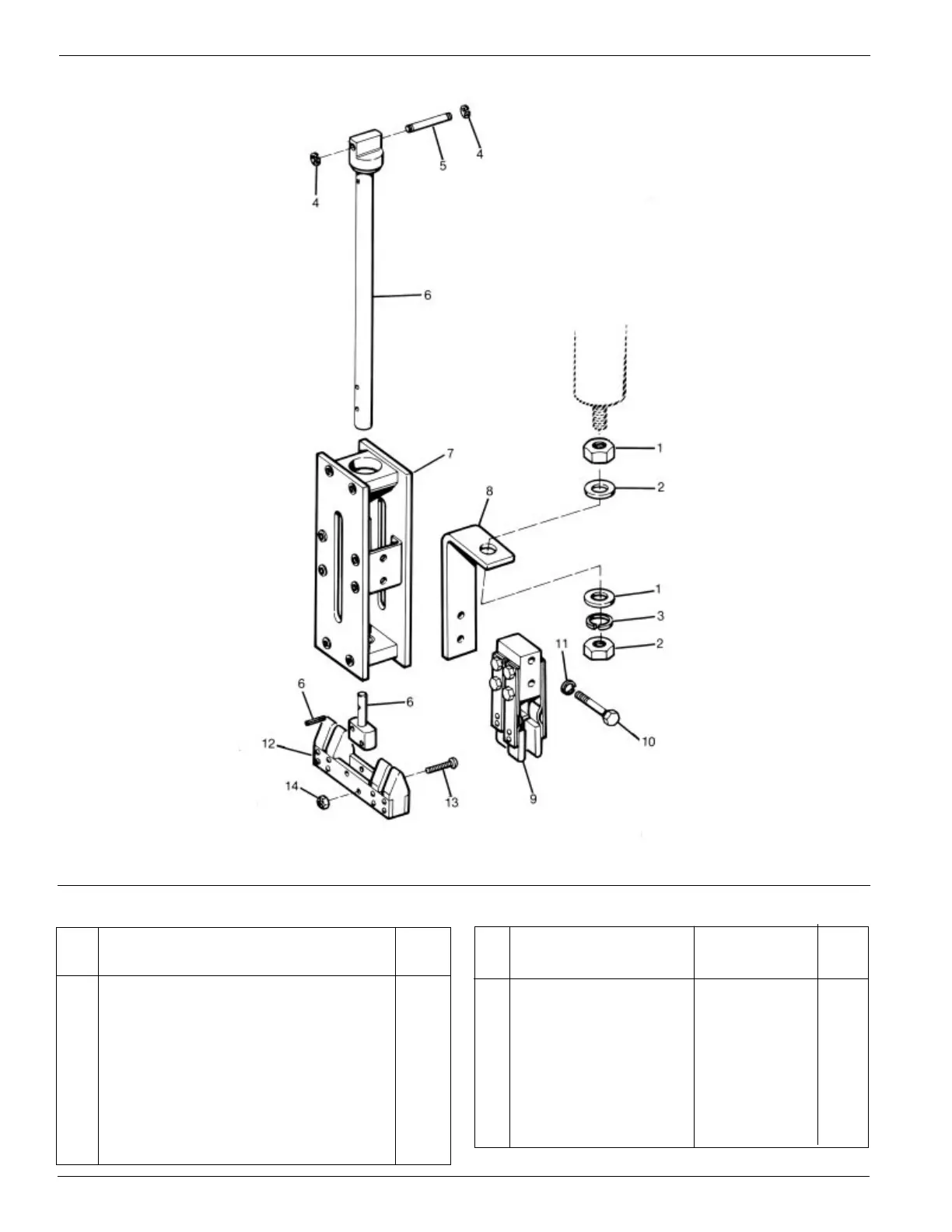

Figure 40.
Type VR contact assembly parts.
20
Type VR Contact Assembly Parts (Figure 40)
Qty.
Item Catalog Per
No. Description Number Assy.
1 Hex jam nut, light, 5/8-18,
brass K880725318062A 4
2 Washer KP2028A45 4
3 Split lockwasher, med, 5/8,
bronze K900830062000A 2
4 Retaining ring, Type C, 1/4,
stl (WA514) K970901250000M 2
5 Pin KP31 24A18 1
6 Contact rod assembly KA200VR 1
Stationary contact assembly
complete (includes items 7
through 11) KA199VR1 1
Qty.
Item Catalog Per
No. Description Number Assy.
7 Contact housing support
assembly KA211 VR1 1
8 Mounting bracket KP134VR1 2
9 Stationary contact assembly KA209VR 2
10 Capscrew, hex hd, 5/16-18 x
2-1/4, stl K730101131225A 4
11 Split lockwasher, med, 5/8, stl K900801062000A 4
12 Movable contact assembly KA201VR 1
13 Machine screw, rd hd, 10-32
x 1, stl K721501310100A 2
