Cooper VR Series - Quick-Close Mechanism Parts

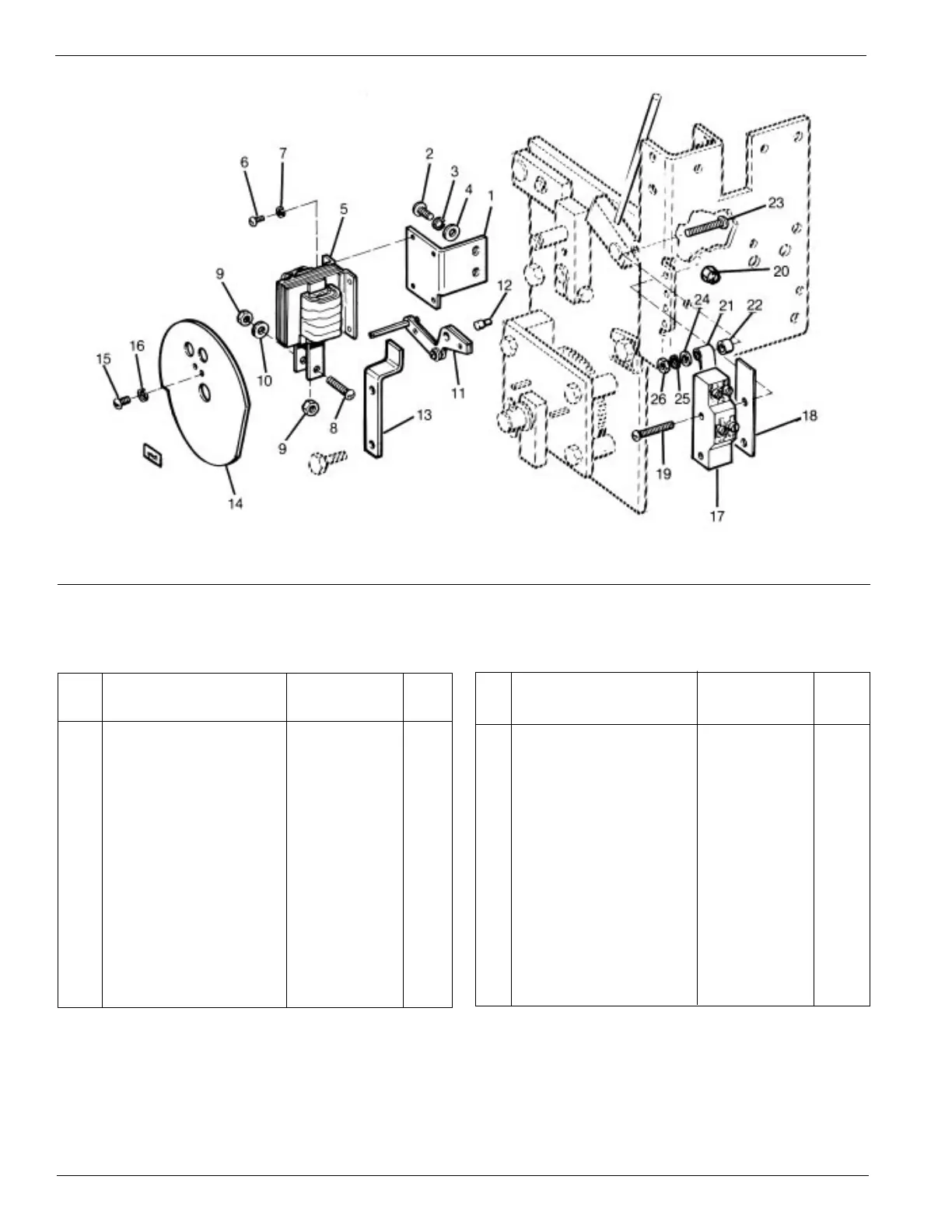

Figure 44.
Quick-close mechanism parts.
26
Type VR Contact Assembly Parts (Figure 40)
Qty.
Item Catalog Per
No. Description Number Assy.
1 Bracket KP188VR 1
2 Machine screw, rd hd, 10-32
x 3/4, stl K721501310075Z 2
3 Split lockwasher, med, No. 10,
stl K900801010000Z 2
4 Plain washer, No. 10 SAE,
brass K900225010000Z 2
5 Solenoid assembly, 120 vac KA185VR1 1
6 Machine screw. rd hd, 10-32
x 5/16, stl K721501310031Z 2
7 Split lockwasher, med, No. 10,
stl K900801010000Z 2
8 Machine screw, rd hd, 8-32 x 1,
stl K721501108100Z 1
9 Hex nut, 8-32, stl K881001132008Z 2
10 Plain washer, No. 8S, brass K900525014031A 1
11 Latch assembly KA72VR 1
12 Pin KP185VR 1
Qty.
Item Catalog Per
No. Description Number Assy.
13 Bracket KP186VR 1
14 Cam KP312VR 1
15 Machine screw, rd hd, 1/4-20
x 1 /2, stl K721501125050Z 1
16 Split lockwasher, med, 1/4 K900801025000Z 1
17 Miniature switch KP2181A13 1
18 Insulation KNC1070A1 1
19 Machine screw, rd hd, 6-32
x 1, stl K721501106100Z 2
20 Elastic stop nut, 6-32 KP2020A6 2
21 Latch assembly KA204VR900 1
22 Spacer KP3032A11 1
23 Machine screw, 6-32 x 1, brass K721525106100A1 1
24 Plain washer, No. 6S, brass K900525017037A 1
25 Split lockwasher, med, No. 6,
sil brz K900830006000A 1
26 Hex nut, 6-32 brass K881025132006A 1
