5. Remove the four pins holding the scanner
unit and then the unit.

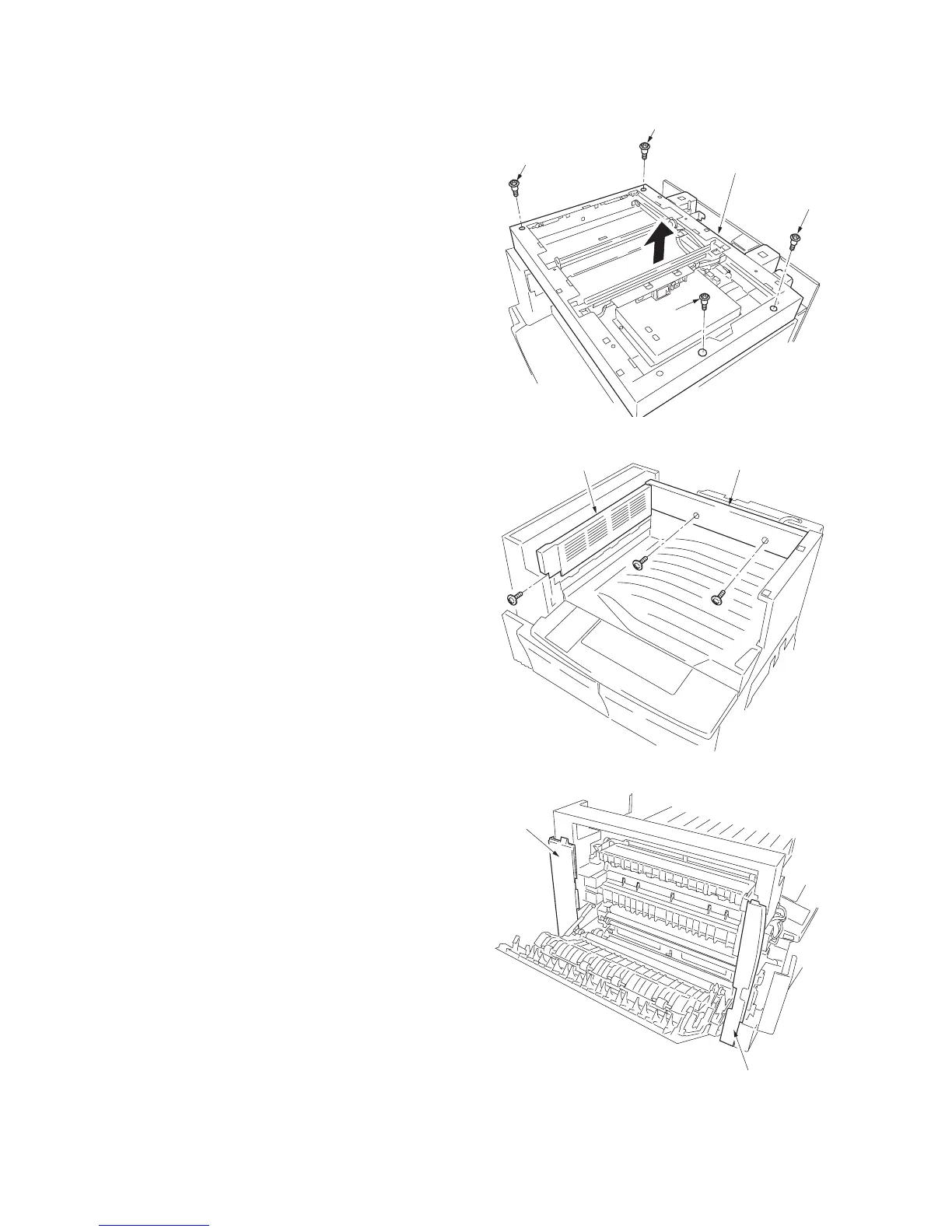

Figure 1-6-56
6. Remove the screw holding the exit cover
and then the cover. Remove the two screws
holding the inner rear cover and then the
cover.
Figure 1-6-57
7. Remove the front and rear left cover.
Figure 1-6-58
Scanner unit
Pin
Pin
Pin
Pin
Inner rear cover
Exit cover
Front left cover
Rear left
cover
