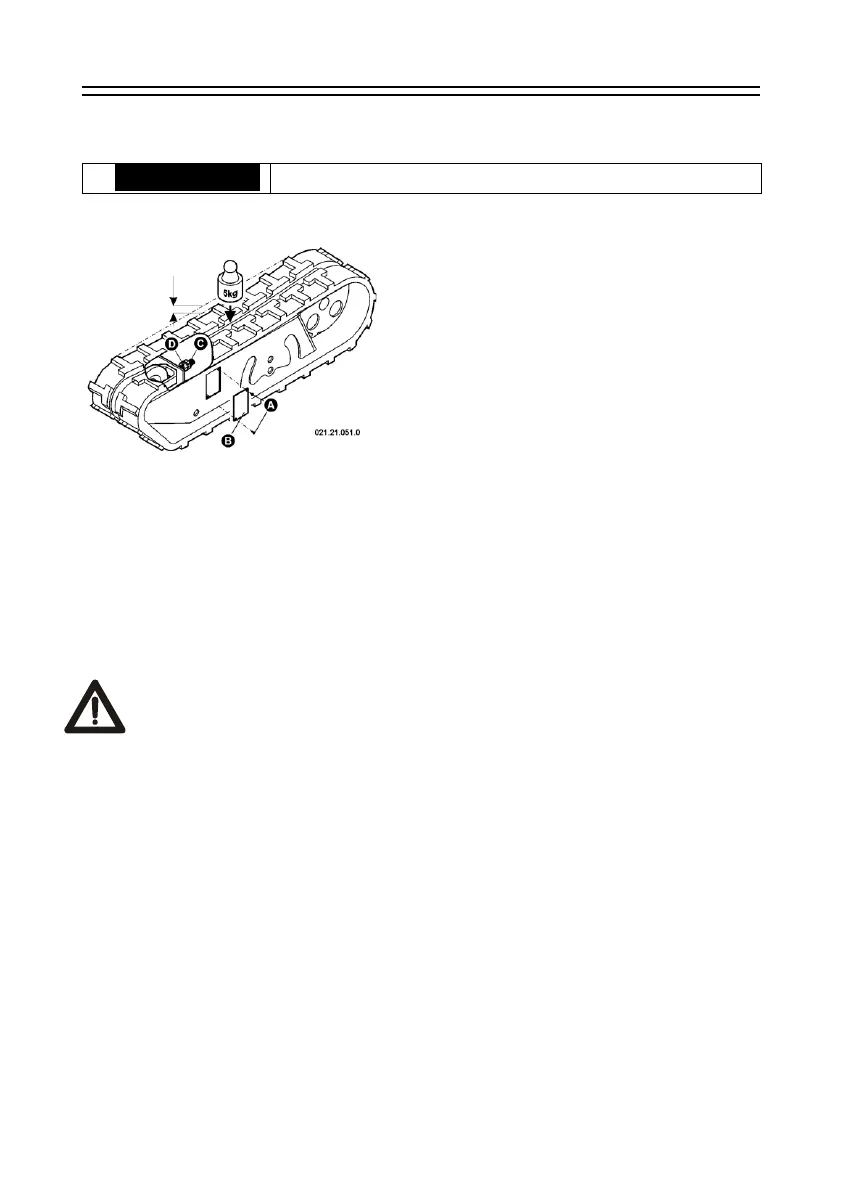

fig. 34 - Regulation track tension
nut “D”;
•
Check that the arrow is at 20 mm;
The correct tension of the tracks is
im- portant in order to guarantee
their longevity and for your own
safety: to check it, apply a pressure
of 5 kg on the track and check that
the arrow is at about 20 mm.
tension of the tracks correctly:
• Take off the cover “B” by
unscrewing the two screws “A”;
• Using two wrenches, loosen the
counter-nut “C”;
• Regulate the tension by working on
• When you have finished regulating, block the counter-nut;
• Put the cover back on;
• Repeat the same procedure on the other track.
CAUTION: If mud verify that the arrow is 40 mm.
