Cornelius 200 - Cabinet Parts List; Figure 12. Cabinet Parts Breakdown

23 166240010
CABINET PARTS LIST
1
1
2
2
3
3
4
4
5
6
7
8
9
200 525 and 725

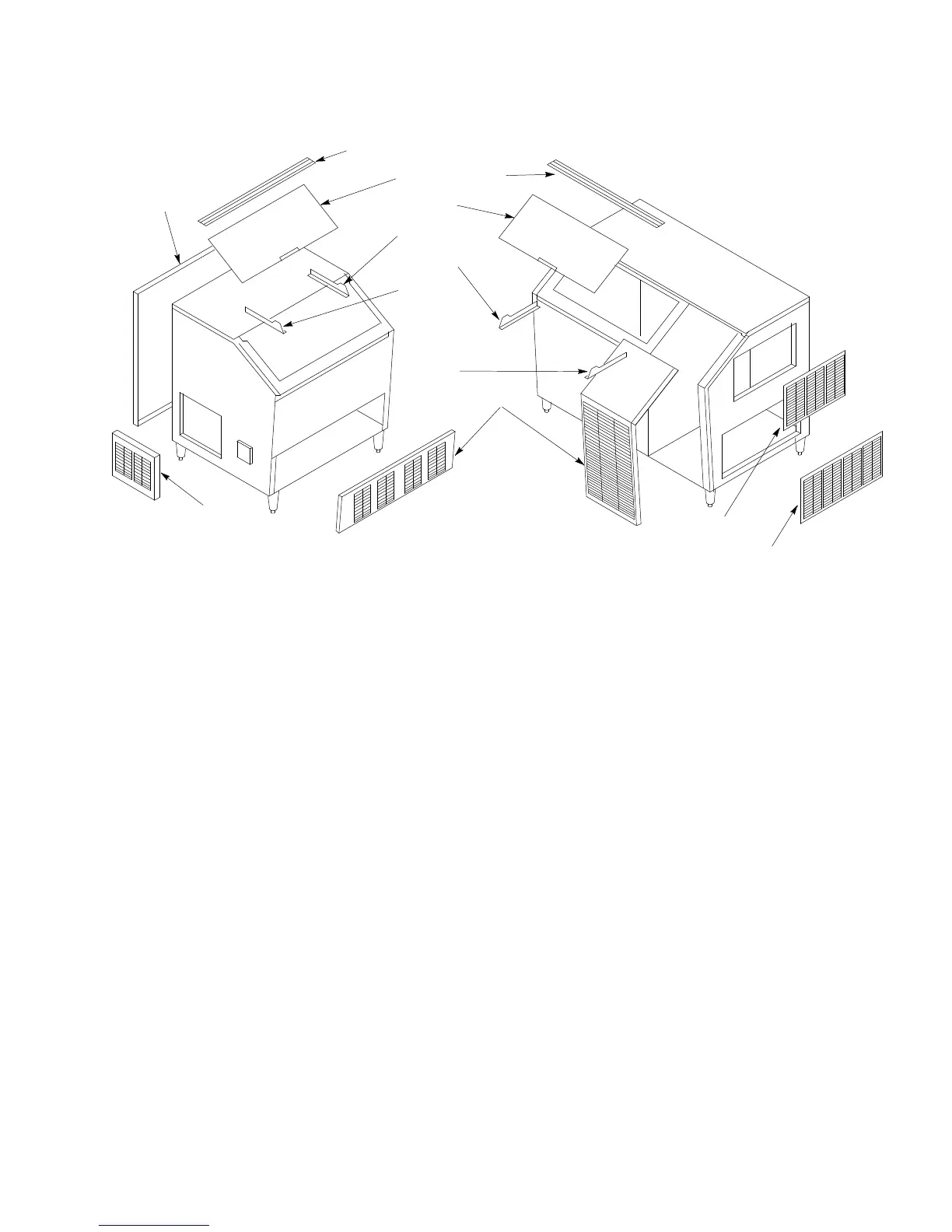

FIGURE 12. CABINET PARTS BREAKDOWN
ITEM
NO .
DESCRIPTION AF200PSCR
AF200PSC50R
AF200SSCR AF525PSCR
AF525PSC50R
AF525SSCR AF725PSCR
1 Bin Door 09120 09120 09120 09120 36555
2 Door, Track, LH 25007 25007 25007 25007 25007
3 Door, Track, RH 08824 08824 08824 08824 08824
4 Door Trim 09112 09112 09112 09112 08681
5 Back Panel 163278001 25043 N/A N/A N/A
6 Front Panel 163275002 25853 163283002 26857 163283001
7 Side Louvered Panel 163275013 163275014 N/A N/A N/A
8 Upper Louvered Access N/A N/A 163275003 25042 163275003
9 Lower Louvered Access N/A N/A 163275001 24154 163275004
