SPECIFICATIONS 525
26 1/2-IN.
67-CM
ON-OFF
SWITCH
AIR IN
A
B
D
E
C
REAR VIEW
OF CABINET
A- 3/8 WATER INLET (S.A.E. MALE FLARE)
B- 1/2 O.D. TUBE (CONDENSATE DRAIN)
C- 3/4 N.P.T. BIN DRAIN
D- CONDENSER WATER IN (W/C ONLY)
E- CONDENSER WATER OUT (W/C ONLY)
ELECTRICAL
BOX AREA
26-IN.
66-CM
34-IN.
86-CM
40-IN.
102-CM
MIN.
6-IN.
15-CM
MIN.
14-IN.
36-CM
38 3/4-IN.
97-CM
24 3/4-IN.
63-CM
13 1/2-IN.
34-CM
2-IN.
5-CM
2 1/2-IN.
6-CM
3 1/2-IN.
9-CM
3 1/2-IN.
9-CM
5/8-IN.
2-CM
3 3/8-IN.
9-CM
4 5/8-IN.
12-CM
5 5/8-IN.
14-CM
19 1/2-IN.
50-CM
3 3/4-IN.
10-CM
26 3/8-IN.
67-CM
3 5/8-IN.
9-CM

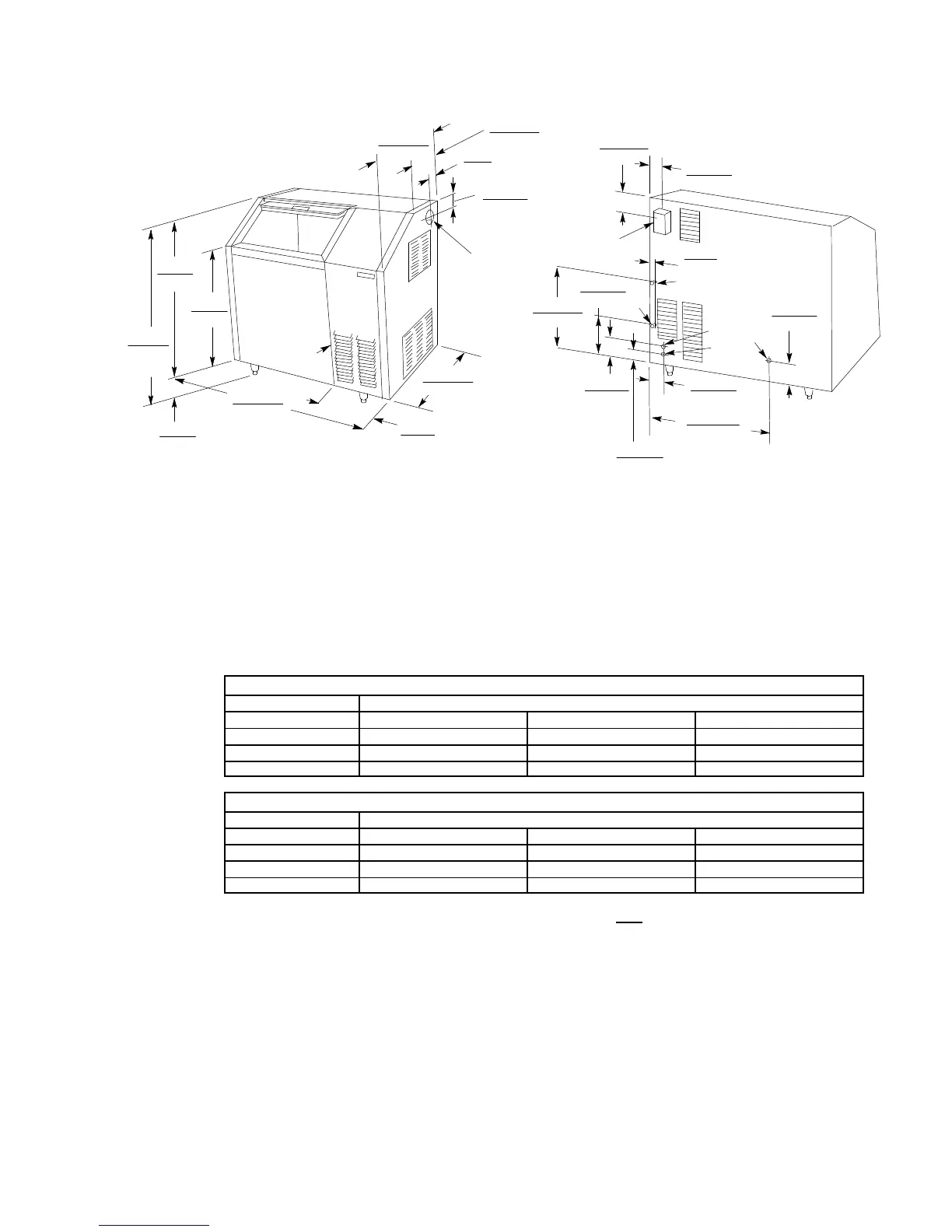

FIGURE 2. 525 SERIES SPECIFICATIONS
ICE PRODUCTION CAPACITY (approximate)
AF-525-P(S)-SCR PRODUCTION CHART
AIR TEMPERATURE WATER TEMPERATURE
50°F/10°C 70°F/21°C 80°F/27°C
50°F/10°C 654 lbs/297 kgs 588 lbs/267 kgs 552 lbs/251 kgs
70°F/21°C 639 lbs/290 kgs 563 lbs/256 kgs 521 lbs/237 kgs
90°F/27°C 562 lbs/255 kgs 479 lbs/218 kgs 448 lbs/204 kgs
AF-525-P-SC50R PRODUCTION CHART
AIR TEMPERATURE WATER TEMPERATURE
50°F/10°C 70°F/21°C 80°F/27°C
50°F/10°C 629 lbs/286 kgs 528 lbs/240 kgs 494 lbs/225 kgs
70°F/21°C 621 lbs/282 kgs 525 lbs/239 kgs 489 lbs/222 kgs
90°F/27°C 493 lbs/224 kgs 414 lbs/188 kgs 387 lbs/176 kgs
525
Compressor Model Copeland RS43CIE-IAA-214 (115V 60HZ)
Copeland RS43CIE-IAZ-214 (220V 50HZ)
Condenser Air Cooled
Refrigerant Charge 17 oz. R--404a
Refrigerant Control Automatic Expansion Valve (34-PSI)
Inlet Water Supply 3/8” SAE Male Flare
Voltage 115V 60HZ or 220V 50HZ
Total Amp Draw 15.5 Amps (115V 60HZ)
6.0 Amps (220V 50HZ)
Gearmotor Amp Draw 2 Amps (115V 60HZ)
1 Amp (220V 50HZ)
Gearmotor Electrical Rating 1/8 hp
Maximum Fuse Size 20 Amp (115V 60HZ)
15 Amp (220V 50HZ)
