SPECIFICATIONS 725
ON-OFF
SWITCH
AIR IN
A
B
D
E
C
REAR VIEW
OF CABINET
A- 3/8 WATER INLET (S.A.E. MALE FLARE)
B- 1/2 O.D. TUBE (CONDENSATE DRAIN)
C- 3/4 N.P.T. BIN DRAIN
D- CONDENSER WATER IN (W/C ONLY)
E- CONDENSER WATER OUT (W/C ONLY)
ELECTRICAL
BOX AREA
40-IN.
102-CM
MIN.
26-IN.
66-CM
34-IN.
86-CM
2 1/2-IN.
6-CM
2-IN.
5-CM
17 1/8-IN.
43-CM
30-IN.
76-CM
28 3/8-IN.
72-CM
16 3/8-IN.
42-CM
48-IN.
122-CM
6-IN.
15-CM
2 3/4-IN.
7-CM
2 3/8-IN.
6-CM
5/8-IN.
2-CM
3 1/4-IN.
8-CM
4 1/2-IN.
11-CM
5 5/8-IN.
14-CM
19 1/2-IN.
50-CM
5 1/32-IN.
13-CM
32 1/16-IN.
81-CM
4-IN.
10-CM

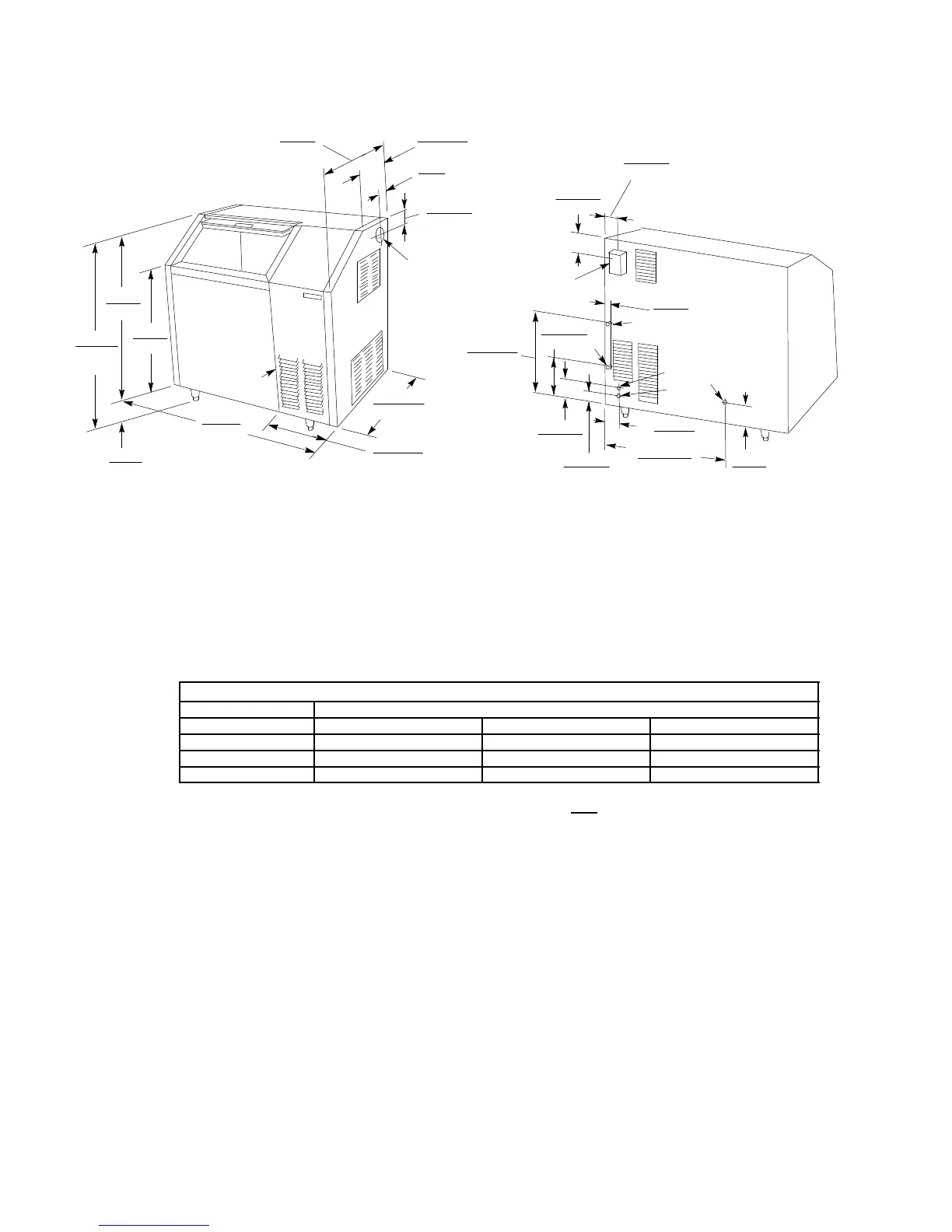

FIGURE 3. 725 SERIES SPECIFICATIONS
ICE PRODUCTION CAPACITY (approximate)
AF-725-P-SCR PRODUCTION CHART
AIR TEMPERATURE WATER TEMPERATURE
50°F/10°C 70°F/21°C 80°F/27°C
50°F/10°C 654 lbs/297 kgs 588 lbs/267 kgs 552 lbs/251 kgs
70°F/21°C 639 lbs/290 kgs 563 lbs/256 kgs 521 lbs/237 kgs
90°F/27°C 562 lbs/255 kgs 479 lbs/218 kgs 448 lbs/204 kgs
725
Compressor Model Copeland RS43CIE--IAA--214
Condenser Air Cooled
Refrigerant Charge 17 oz. R--404a
Refrigerant Control Automatic Expansion Valve (34-PSI)
Inlet Water Supply 3/8” SAE Male Flare
Voltage 115V 60HZ
Total Amp Draw 15.5 Amps
Gearmotor Amp Draw 2 Amps
Gearmotor Electrical Rating 1/8 hp
Maximum Fuse Size 20 Amp
