McDonald’s
®

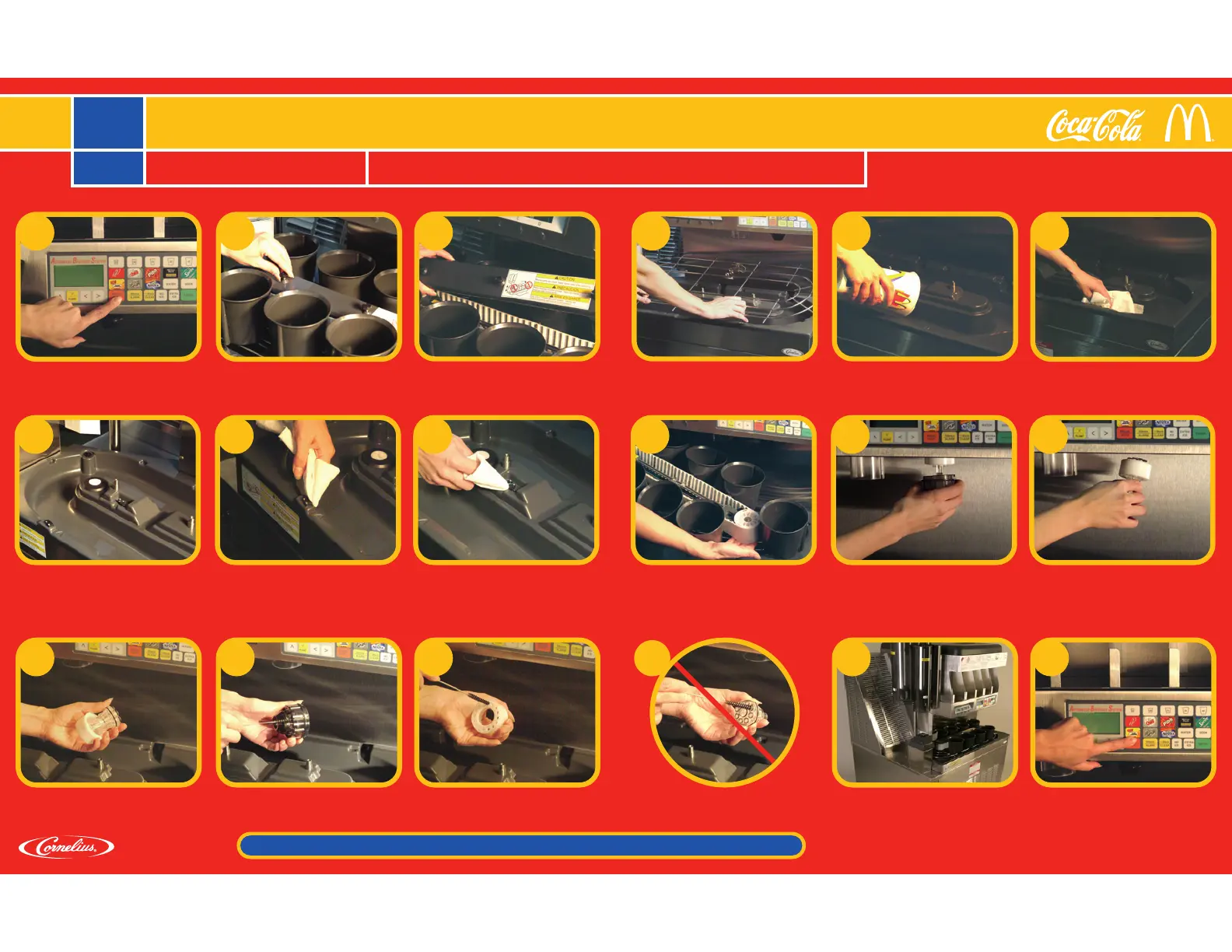

ABS Basic Daily Cleaning02
02 Loosen the screws (3) that retain
the cup conveyor cover.
03 Remove the conveyor cover and
conveyor assembly. Do not carry
conveyor by cup holder.
04 Remove the grille from the drip
tray and clean with warm soapy
water.
• Inspect the cup locator spring.
05 Pour warm (NOT HOT) water down
drip tray drain. Flush the drip tray
using carbonated water. Hot water
or coffee will crack drip tray.
06 Wipe down the drip tray area,
splash panel and clean any spills
from the machine exterior using
McD APC with a clean cloth.
01 Press the red “AUTO/MANUAL”
button to place the ABS unit into
“MANUAL” mode.
08 Roll the end of the paper napkin into a point and dip into the carbonated
water and wipe both sensors.
CAUTION: Never use a cleaning cloth, brush or abrasive cleansers on sensors.
07 Make sure water deflector is
properly installed; this will help
prevent motor failures.
(Order replacement if the
deflector is missing.)
11 Prepare sanitize solution by adding one packet of McD Sanitizer to 2 1/2
gallons of lukewarm water in a clean sanitized bucket.
• Remove the nozzle from the dispenser by turning and pulling down.
12 Remove the diffuser from the valve by pulling down. Place the nozzle and
diffuser in the Sanitizer solution.
10 Clean the conveyor assembly using
luke warm soapy water.
• Do not use hot water or place in
dishwasher. Rinse with plain water.
• Reinstall the grille and conveyor
assembly.
14 Clean the diffuser and nozzle using the nylon brush. Rinse with lukewarm water.
• Reinstall the diffuser and nozzle. Ensure they are located correctly in the machine.
• Dirty components can cause excess foaming.
13 Remove collar from diffuser.
• Check to see if syrup deflector
is properly installed.
17 Wipe dirt and dust from the outside of the machine with McD APC solution
and wipe dry with a soft, sanitized cloth.
• Apply McD Stainless Steel Cleaner dressing to all exterior stainless steel
surfaces and wipe dry with a paper towel.
• Drink orders should be cleared before going back to “AUTOMATIC” mode.
18 Press the red “AUTO/MANUAL” button to place the ABS into “AUTO” mode.
16 Do not the clean the holes
in the bottom of diffuser.
© 2008 IMI CORNELIUS
WWW.CORNELIUS.COM
620807805B Revision: B
Daily MaintenanceA Tools:
McD APC, Paper Towel, Clean Cloth, Carbonated Water, Clean Paper Napkin,
McD Sanitizer, Sanitizing Bucket, Nylon Nozzle Brush and a Clean Sanitized Cloth.
CAUTION: Do not wipe the keypad or LCD displays with solvents or cleaning agents.
Do not use cleansers containing bleaching agents as they usually contain materials that
will discolor the stainless steel. Heavy discoloration should be removed with McD
“No Scratch” Pad. Never use plain steel wool as it will scratch the panel. Do not use a
cleaning cloth, brush or abrasive cleansers on sensors. The cleaning cloth may leave
oily residue on the lens causing a malfunction.
To order job aid cards contact Coca-Cola Parts: 1-800-638-2653 Part #111099 -or- www.3Wire.com 3Wire Part #1039561
