CH1500, CH2000 & CH3000 Chiller Operator’s & Installation Manual
Publication Number: 621055837OPR - 14 - © 2010-2014, Cornelius Inc.
SERVICE
When servicing this Chiller, it is important to note the information contained on the data plate located in the upper rear
of the unit.
If technical assistance is needed, the phone technician will need the Model and Serial Number of your chiller. That
information is found on the data plate.
The Model and Serial Number are also needed when ordering replacement parts.

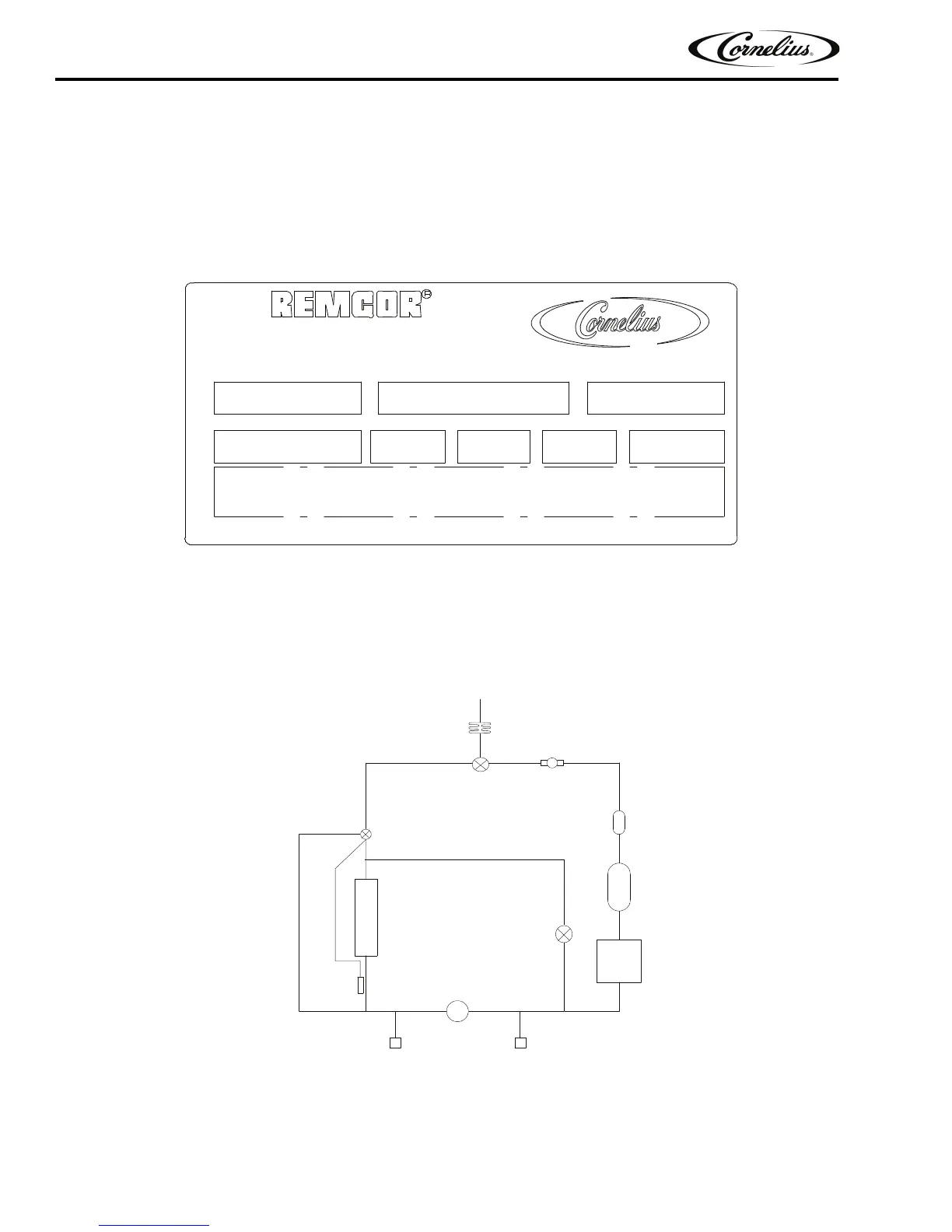

Figure 7. Unit Data Label
REFRIGERATION DIAGRAM
Figure 8. Refrigeration Piping Schematic with Hot Gas Bypass
REMCOR PRODUCTS COMPANY
G L EN DAL E H EI GHTS, I L. 60139--2268
MODEL NO. SERIAL NO.PA R T N O .
VOLTS AMPS
R134AHZ PH
MADE I N U.S.A.
BAR CODE
®
TXV E QUALIZER
LINE
TXV S E NS ING
BULB
TXV
E VAP OR ATOR
COMPRESSOR
LOW PRESSURE
SWITCH
HIGH PRESSURE
SWITCH
SIGHT GLASS
FILTER/DRIER
LIQUID
RECEIVER
CONDENSER
LIQUID LINE
SOLENOID VALVE
HOT GAS BYPASS
VALVE
To Next Page
