Cornelius CH1500 - Pump & Tank Assembly

CH1500, CH2000 & CH3000 Chiller Operator’s & Installation Manual
© 2010-2014, Cornelius Inc. - 17 - Publication Number: 621055837OPR
PUMP & TANK ASSEMBLY
1
2
3
4
5

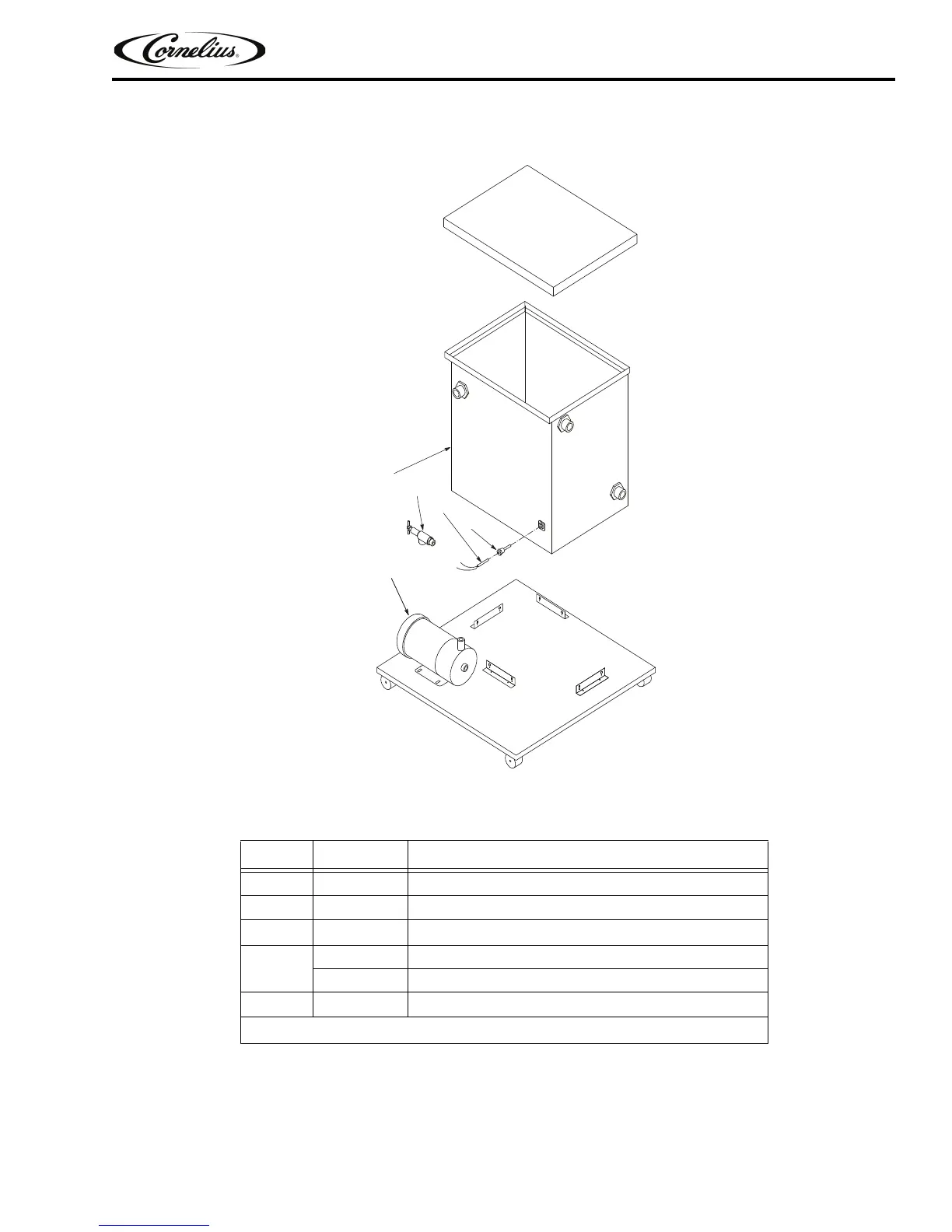

Figure 11. Pump & Tank Exploded View
Table 4. Pump & Tank Components
Item No. Part No. Name
1
15404R Thermowell, Temperature Control
2
32589 Temperature Probe
3
51096 Tank Assembly
4
620408104 Pump
620710601 Pump CH2000, CH3000
5
40646 Valve By-Pass
* Call the Service Dept. for proper pump identification.
