ILLUSTRATED PARTS LIST
QUANTUM SERIES JUICE DISPENSER
1
2
3
4
5
6
7
8 9
10
11
12
13
14

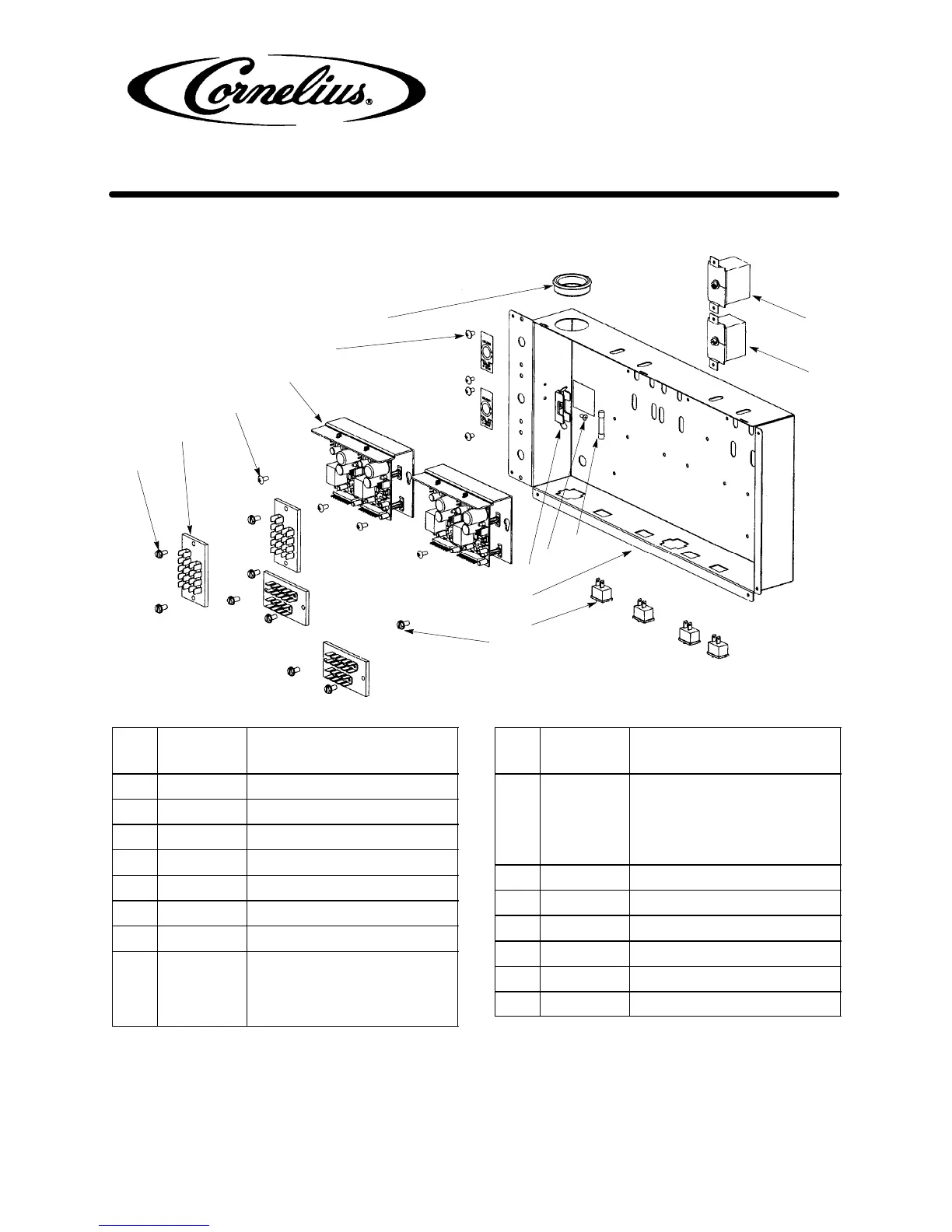

FIGURE 11. ELECTRICAL BOX (DC) ASSEMBLY
Item
No. Part No. Name
Box Elec Asy
1 07061001 Screw No. 10 x 3/8”
2 0733903 Bushing Snap
3 07115001 Screw TF 8-32 TRPH 12
4 0734801 Rivet Pop
5 59328001 Fuse 6.25 Amp
6 7245059 Fuseholder
7 45106 Box Elec (1000 and 2000 Series)
45673 Box Elec (3000 Series)
45414 Box Elec (4000 Series)
Item
No. Part No. Name
8 45138 Reg Voltage Asy (1000 Series)
45238 Reg Voltage Asy (2000 and 4000
Series)
45674 Reg Voltage Asy (3000 Series)
9 46306 Thermostat Concentrate
10 46307 Thermostat Water Evap
11 49273 Block Term
12 45432 Switch
13 07061003 Screw No. 10 x 3/8” HHWF
14 348871 Screw No. 8-32 x 1/4”
Manual Part No. 720901120IPL
4-25-2001 Rev: 12-3-01
IMI Cornelius Co., 2001
QUANTUM SERIES
14 of 16
Rev A
