ILLUSTRATED PARTS LIST
QUANTUM SERIES JUICE DISPENSER
Item
No. Part No. Name
Box Elec Asy
1 45110 Box Elec (1000 and 2000 Series)
45668 Box Elec (3000 Series)
45410 Box Elec (4000 Series)
2 07061001 Screw No. 10 x 3/8”
3 49273 Block Term
4 46308 Relay Start 115V 60HZ
463081 Relay Start 220V 50HZ
5 0735201 Bushing
6 07061003 Screw No. 10 x 3/8”
7 45028 Transfrmr 115V 60HZ (Not Shown)
45028001 Transfrmr 240V 50HZ (Not Shown)
8 60600002 Ballast (Not Shown)
1
2
3
4
5
6

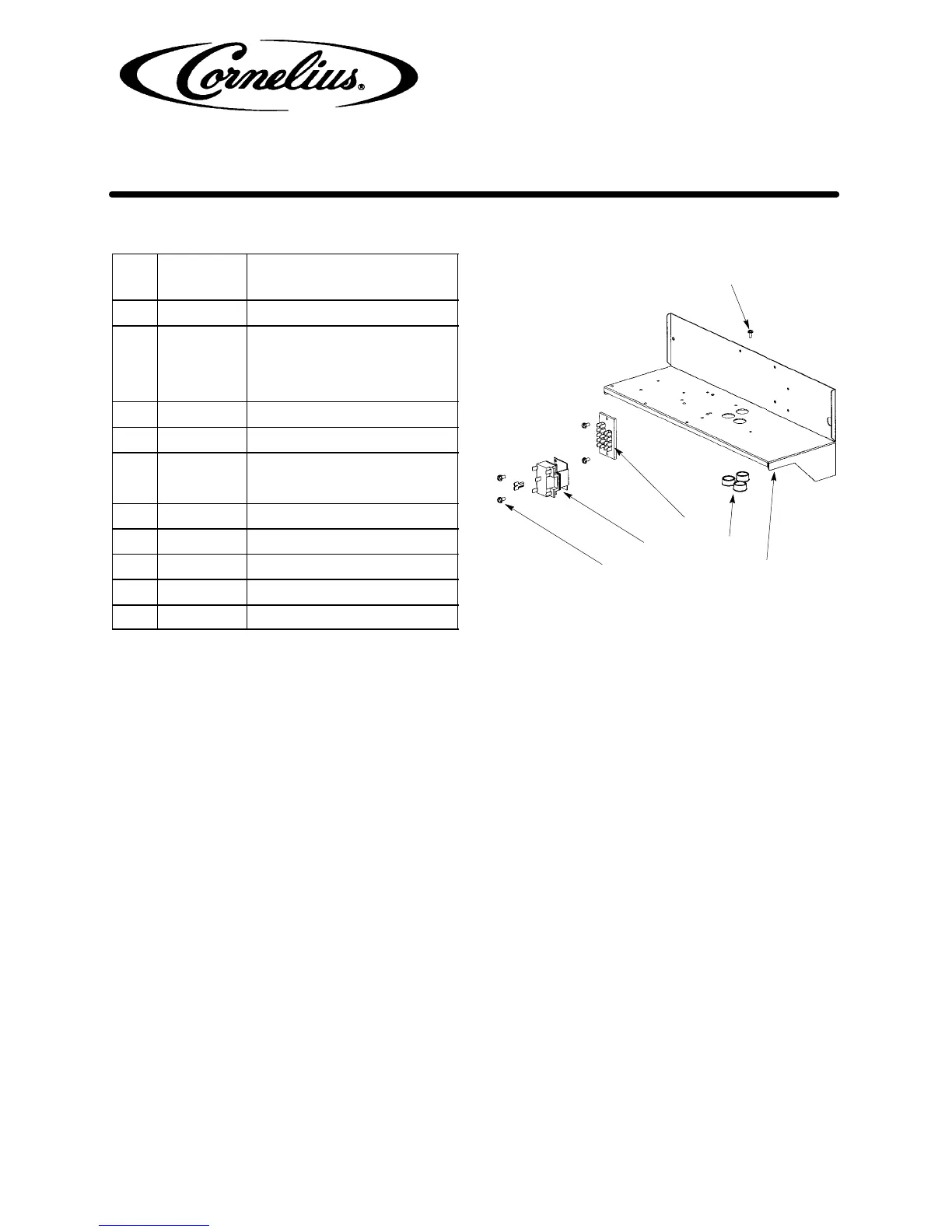

FIGURE 12. ELECTRICAL BOX (AC) ASSEMBLY
Manual Part No. 720901120IPL
4-25-2001 Rev: 12-3-01
