CORNING PCH-02U - General; Carton Contents

STANDARD RECOMMENDED PROCEDURE 003-722 | ISSUE 4 | OCTOBER 2015 | PAGE 2 OF 10
1. General
This document describes the recommended procedure for installing the Pretium®-02U Rack-
mountable housing (Figure 1). The unit ts into 19-inch utility racks and occupies two rack
spaces. A separate mounting bracket kit is required to install the unit into a 23-inch rack. The
housing accepts up to four CCH-style connector panels and/or modules (purchased separately).
Factory-stubbed units are also available. Contact your customer service representative to
purchase accessories that are sold separately.

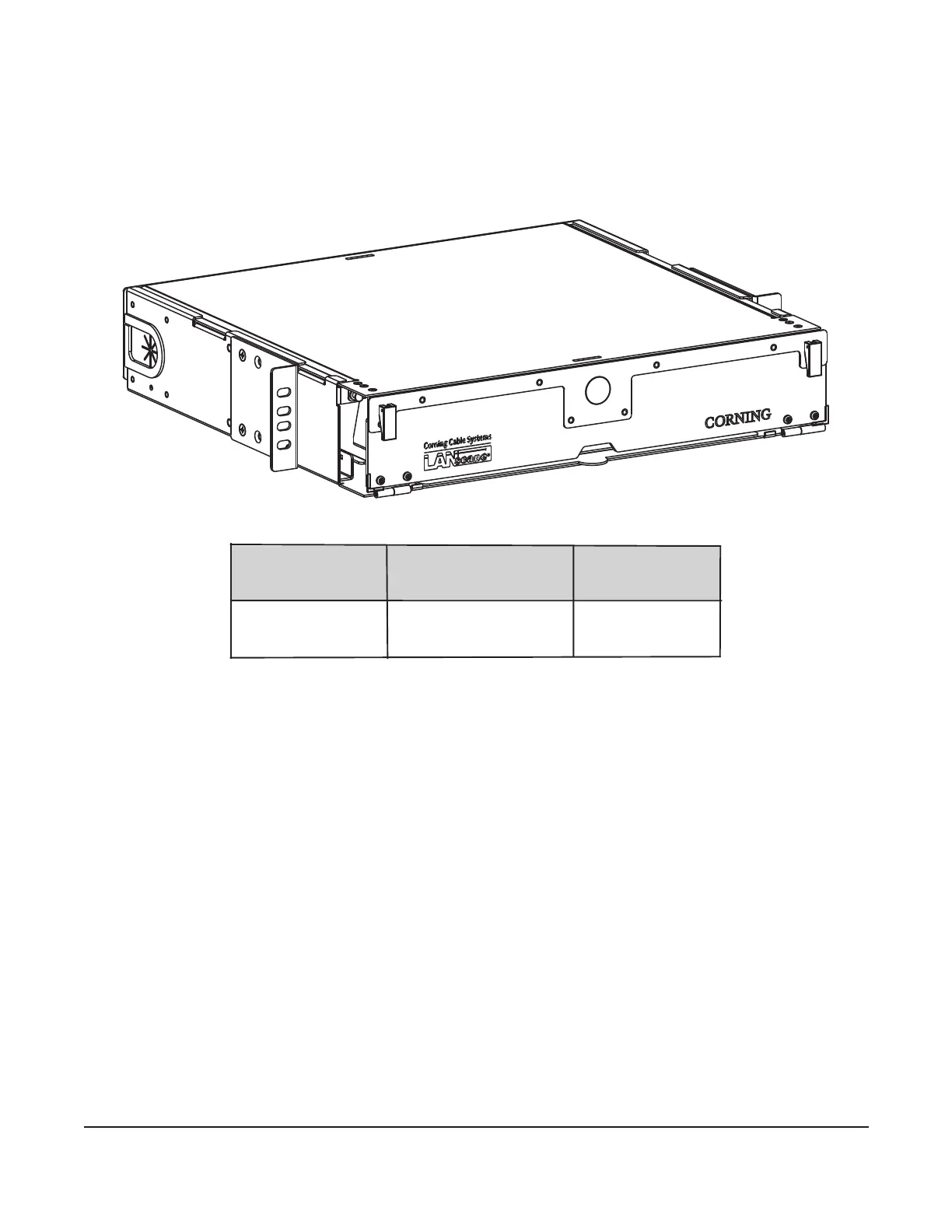

Figure 1
Unpacking Stubbed Units
If you are installing a stubbed unit, follow the directions provided with the shipping container to
remove the stubbed housing from its packaging. Place the housing on a work surface to perform
preliminary work before mounting the unit in a rack.
2. Carton Contents
• Pretium®-02U Housing with (2) mounting brackets
• Hardware Kit containing:
• (1) Unit Identication label
• (2) Front labels
• (2) 6-32 Nylon locknuts
• (8) Cable ties
• (1 ft) Spiral wrap
• (1 ft) Double-sided hook-and-loop strap
• (1) Fanout body bracket
• (1) Internal strain-relief bracket (cable plate)
• (1) External strain-relief bracket
KPA-0147
Dimensions
(H x W x D)
3.5 x 17 x 16.5 in.
(9 x 43 x 42 cm)
Part Number
Weight
PCH-02U
12.6 lb (5.7 kg)
KPA-0157
