CTG2000 / CTG3000 / CTG5000 6 09/20/19
CTG2000 / CTG3000 / CTG5000
1/4", 3/8", & 1/2" Digital Torque Wrench

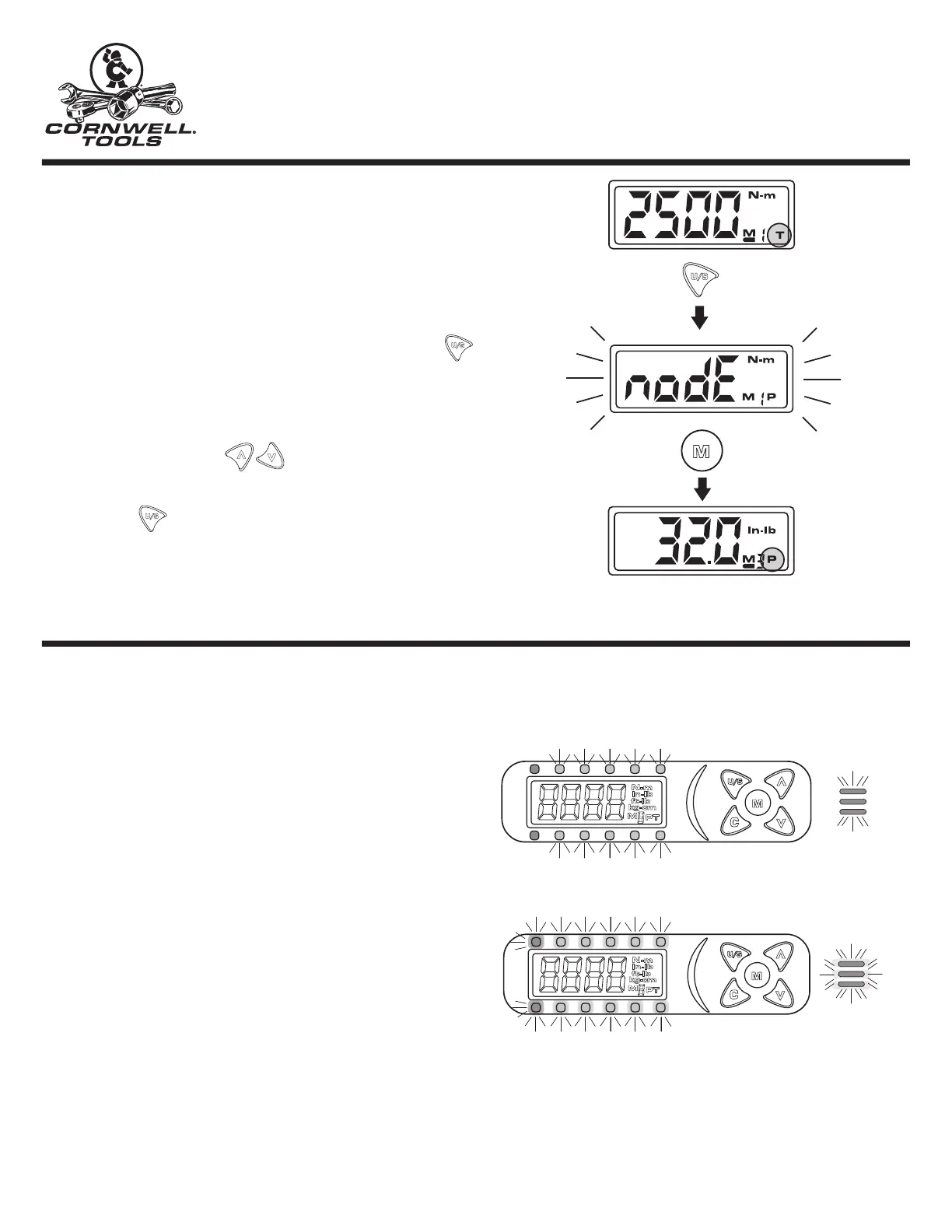

SELECTING TRACK AND PEAK MODES
At start up either a (P) or (T) will show in the lower right
hand corner of the display depending on the last time the
wrench was used.
Note: Track (T) mode is the factory default.
1. In order to change the mode, press and hold the
button for 2 seconds.
Note: The display will briefly flash the "mode"
screen.
2. Use the Up/Down buttons to toggle
between the Track (T) and Peak Hold (P) modes.
3. Press button four (4) times to exit mode setting.
After setting the (T) Track mode and assigning a
Memory Pre-Set to use, operator can begin to apply
load to the wrench.
As a load is gradually applied to the wrench, the
display will show the operator the amount of torque
on the fastener.
When 80% of the desired torque is reached, the green
lights will begin to flash and the and alarm tone will
beep intermittently.
When 99.5% of the desired torque has been reached,
the alarm will change to a steady tone and the green
lights will stop flashing and stay on. The red light will
also illuminate.
Flashing lights and intermittent
tone at 80% of desired torque
Solid lights and steady tone at
99.5% of desired torque
This mode allows the operator to visually monitor the amount of load that is being applied.
Visual and auditory aids assist the operator in maintaining a consistent torque.
PRESS
PRESS
TRACK MODE
