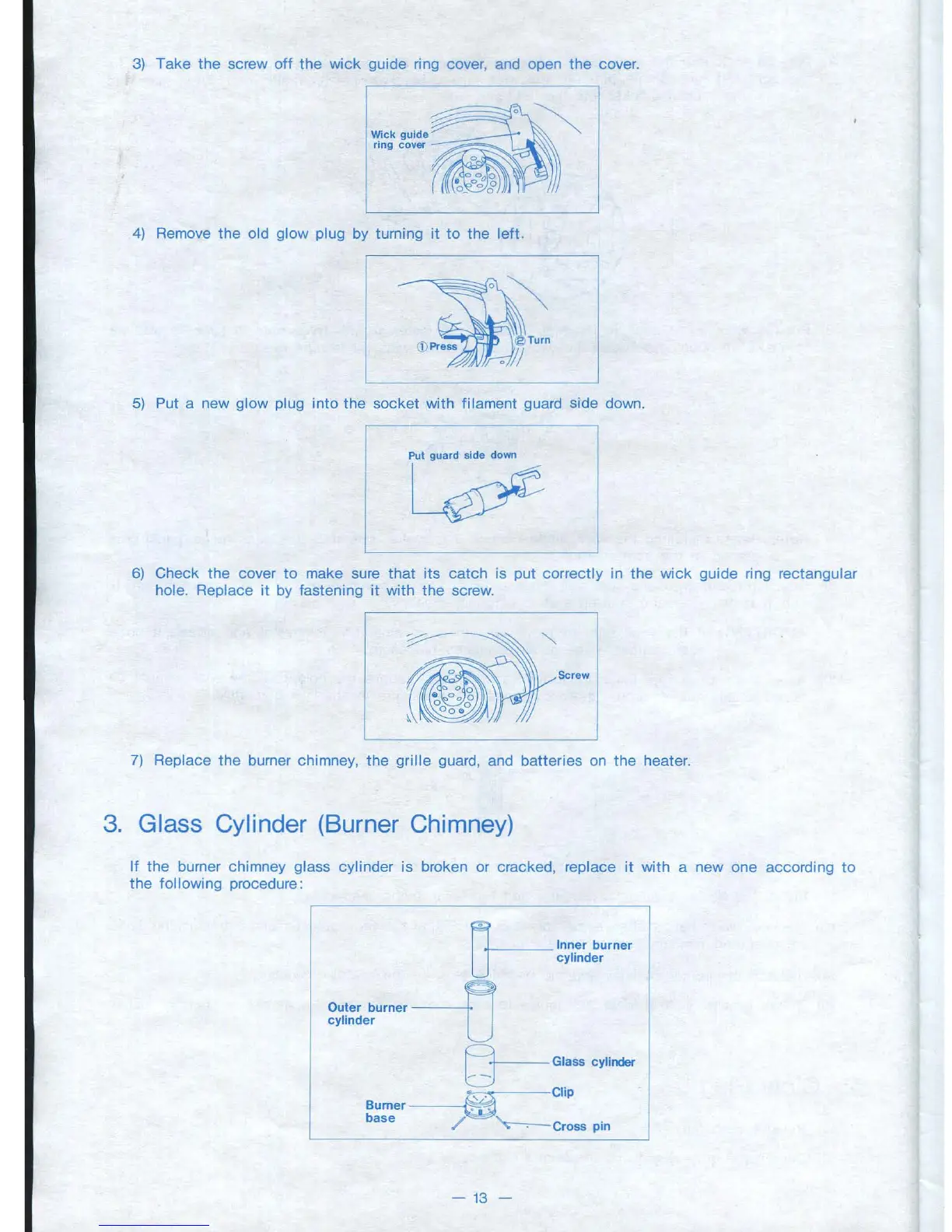

3) Take the screw off the wick guide ring cover, and open the cover.
Wick guide ---=::::;;;;:: \ ~
ring cover ~ ~ ·
4) Remove the old glow plug by turning it to the left .
5) Put a new glow plug into the socket with filament guard side down.
Put guard side down
L#
6) Check the cover to make sure that its catch is put correctly in the wick guide ring rectangular
hole. Replace
it by fastening it with the screw.
Screw
7) Replace the burner chimney, the grille guard, and batteries on the heater.
3. Glass Cylinder (Burner Chimney)
If the burner chimney glass cylinder is broken or cracked, replace it with a new one according to
the following procedure:
f1_ -- Inner burner
u- cylinder
Burner Cross pin
base
- 1 3-
