Correlated Solutions Vic-3D v7 User Manual

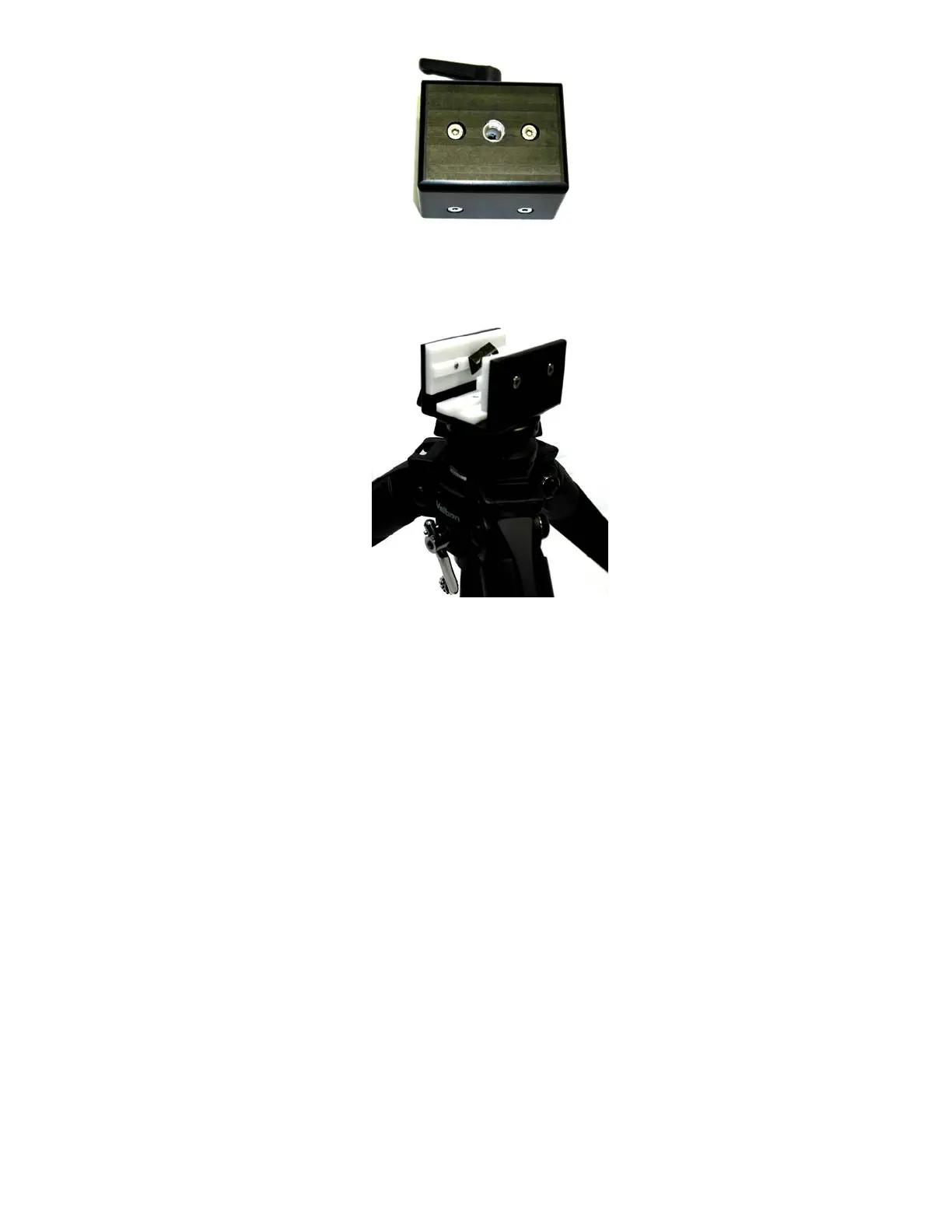

Figure 7. Slide block without helical insert
Figure 8. Slide block mounted to tripod
5. Carefully slide one of the 23” aluminum extrusion pieces into the slide block about halfway (the handle/T-nut
may need to be loosened in order to be to do this), and then hand tighten the handle on the side of the block
to fasten the extrusion in place.

Correlated Solutions Vic-3D v7 Specifications

General

Brand	Correlated Solutions
Model	Vic-3D v7
Category	Measuring Instruments
Language	English
