SOFTWARE CONTROLS

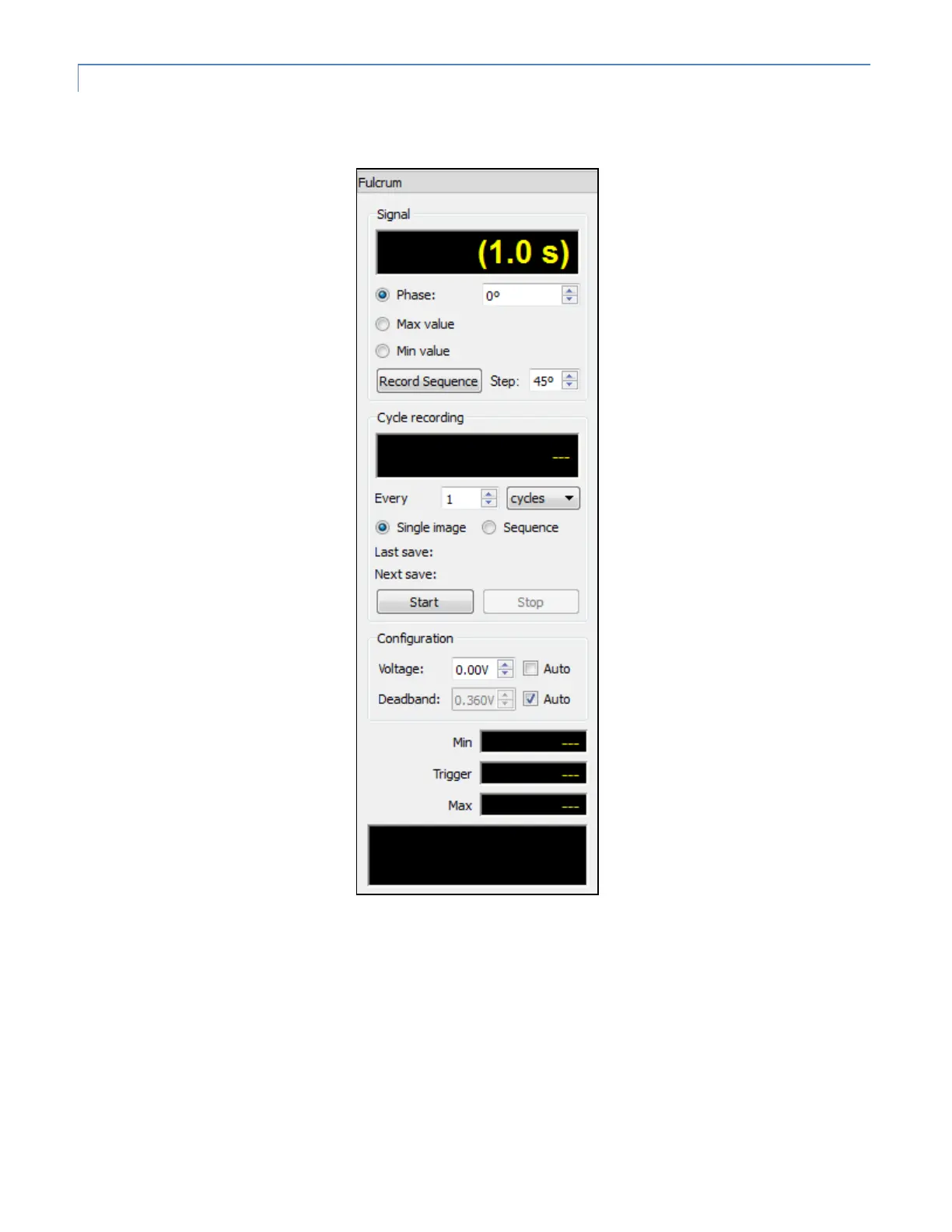

To being a measurement, start Vic-Snap and click the Fulcrum Dialog toolbar button, or select File… Fulcrum Dialog. The
Fulcrum control will appear in the workspace, and the cameras will be switched to hardware trigger mode.
The (1.0 s) indicates that the signal is initially being sampled for 1.0 seconds to determine the levels. This time will be
determined by the minimum frequency setting in the Advanced Options; for the best response, select a minimum
frequency that is just lower than the lowest frequency you expect to measure. After the limits are found, the trigger voltage
will be set to the mean voltage; the frequency should appear and the waveform will be displayed in the dialog.
