8. Attach the 4 end caps to the aluminum extrusion ends.

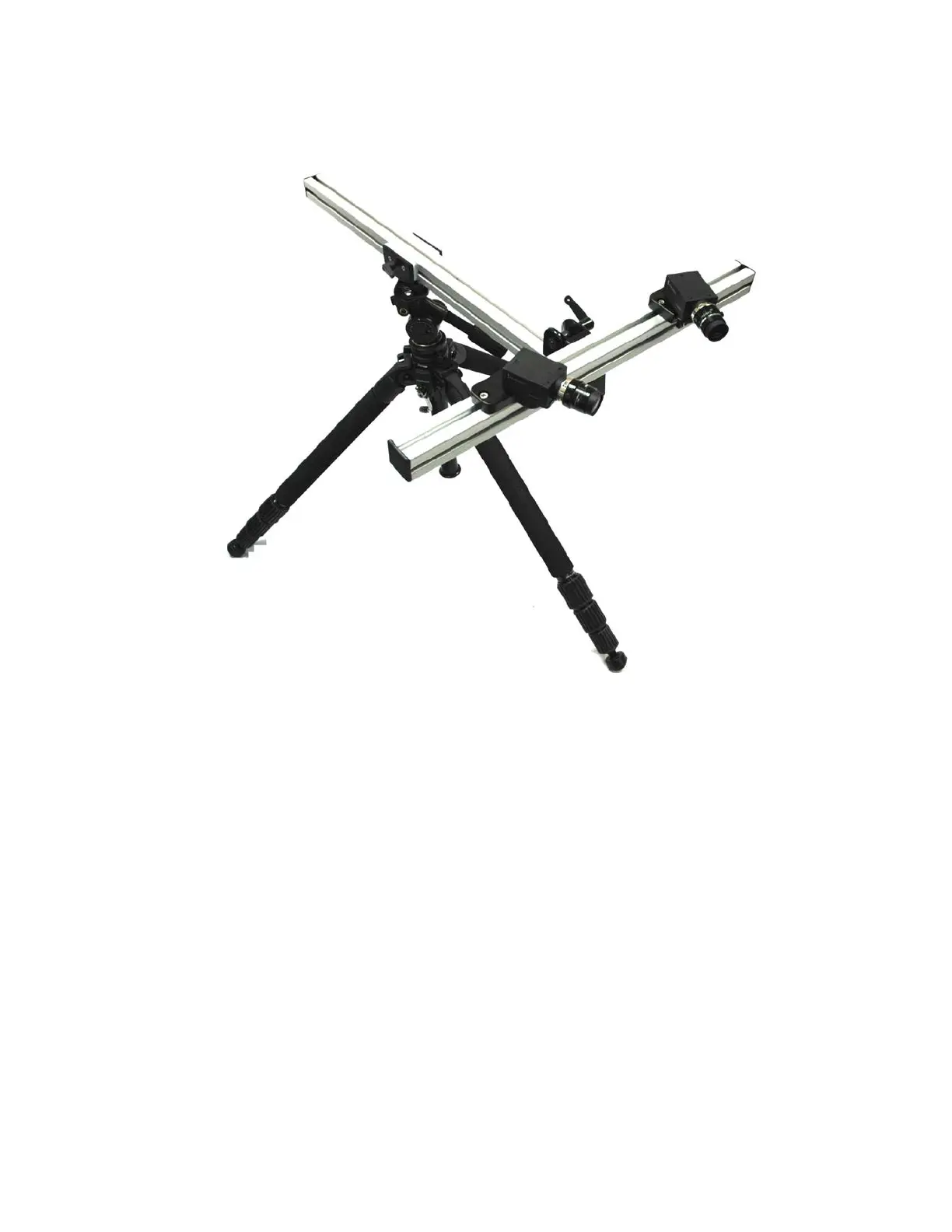

Figure 13. Attach all four end caps
9. Adjust all degrees of freedom to the desired locations and tighten.
Other mounting configurations are shown in Figures 14 and 15. Figure 14 displays the final configuration when the tripod
head is omitted. Figure 15 shows a configuration in which the cameras are mounted vertically (by mounting the hinge on a
different surface of the aluminum extrusion). Shape and curvature of the test subject will dictate whether cameras should
be mounted vertically or horizontally. Both cameras must see a given feature in order for VIC-3D to obtain a shape for that
feature. Therefore, if a specimen is curved around the vertical axis, a vertical camera mounting is ideal. This will allow for
more data extraction from the specimen.
