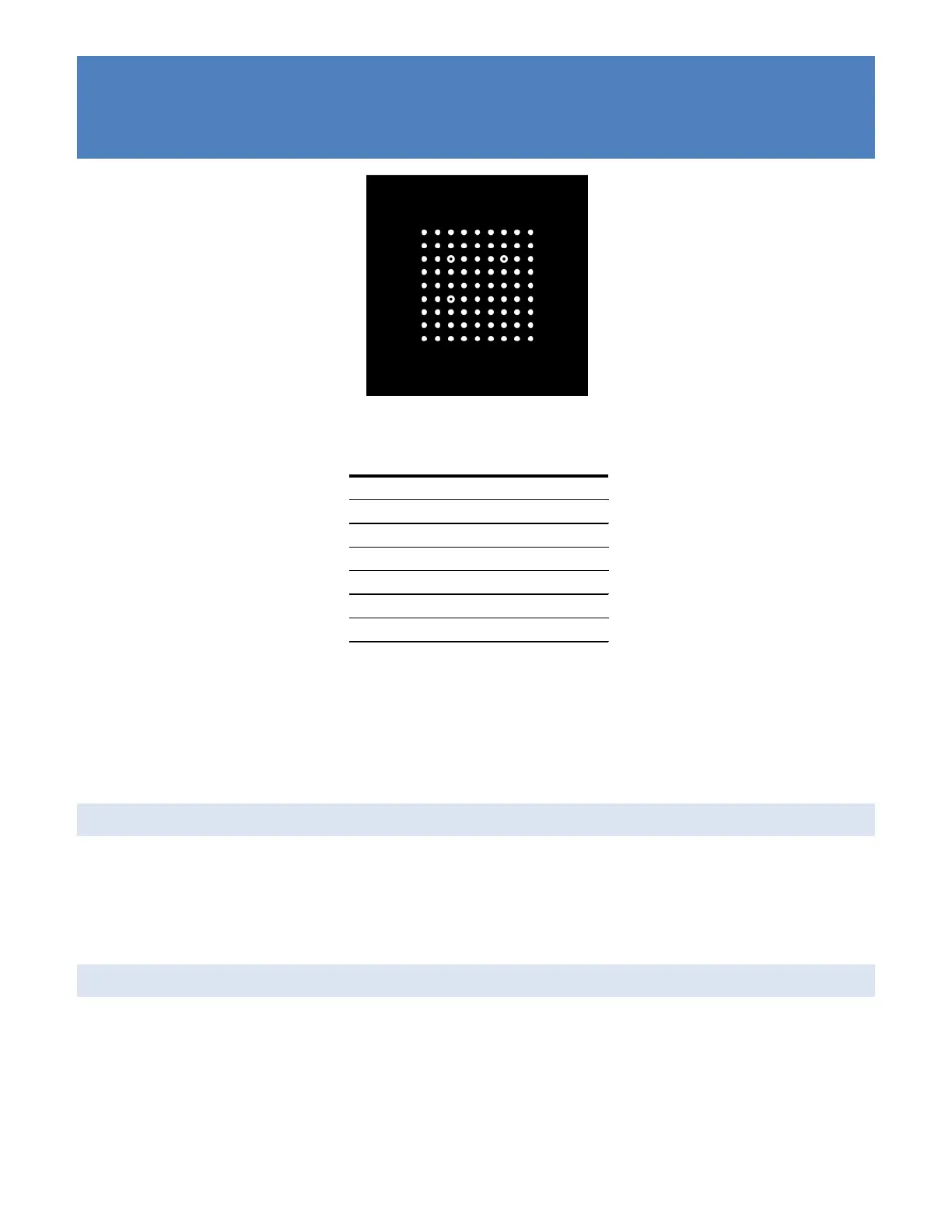

1” CALIBRATION TARGET
P/N AIG 052985
APPLICATION
The 1-inch calibration target is designed to be backlit by cold light illumination (e.g. fiber optic light source.)
Backlighting should be diffused (or at least positioned as far from the target as possible) while providing adequate
illumination for image capturing. The dark, coated surface of the target must face the cameras.
CLEANING
The 1-inch calibration target is made of sodalime glass with an extremely fragile etched coating. It may be gently
cleaned with lens-cleaning paper. If necessary, it may also be cleaned with a general-purpose glass cleaner and
soft, lint-free cloth.
Size (mm) 25.00
Pitch (mm) 3.00
Number of dots in X 9
Number of dots in Y 9
Offset in X 3
Offset in Y 3
Length in X 3
Length in Y
4
Tolerances +/- 0.002 mm
