Corsair H100i v2 User Manual

4 5

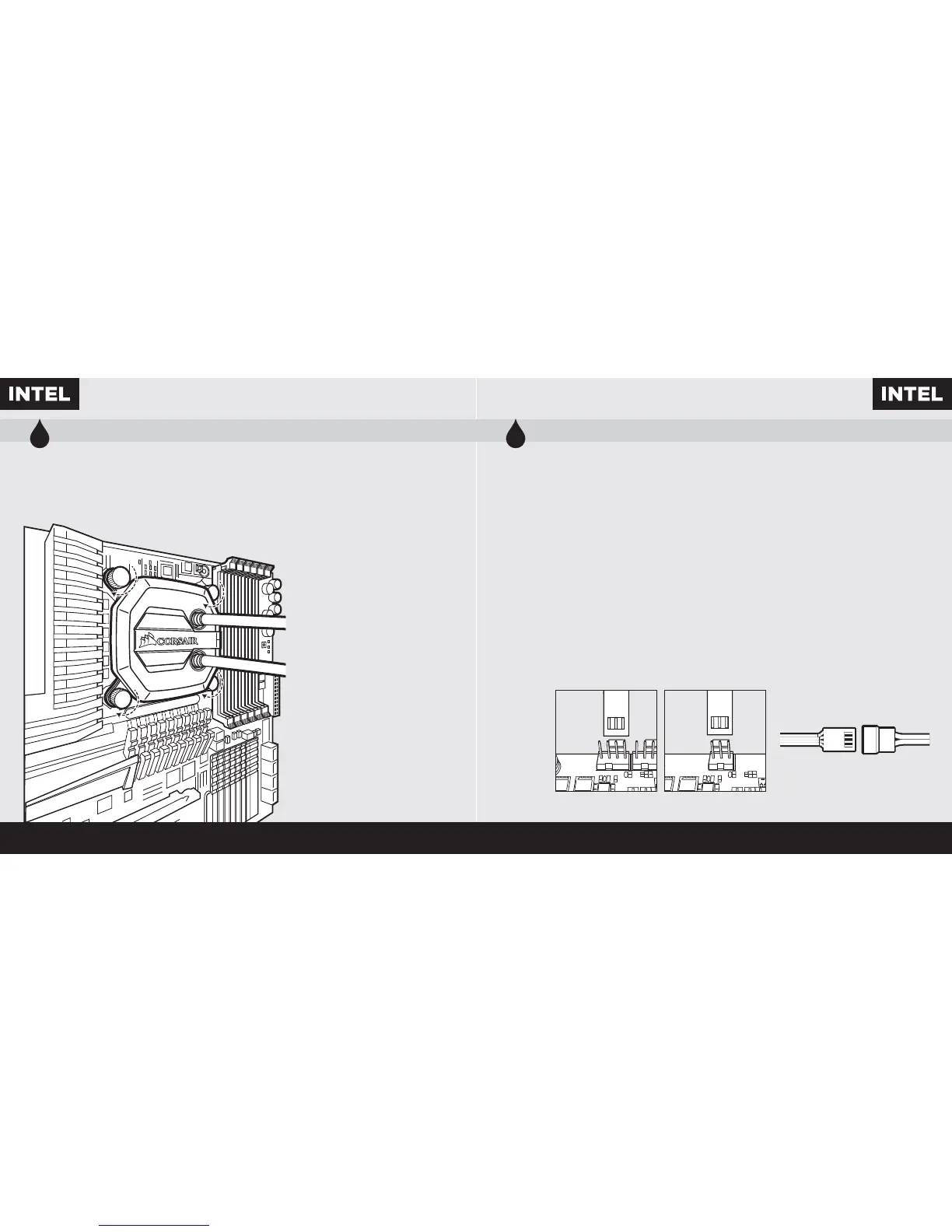

Installing the Pump Unit
• Align the bracket and pump over the
stando screws as shown.
• Tighten the thumbs screws until all
four corners are firmly secured.
Connect Power to the Fans and Pump
figure 1 figure 2
• Connect the pump power cable to the
CPU_FAN header on your motherboard.
• Connect the fans to the two connectors
coming o the pump.
4-PIN 3-PIN

Corsair H100i v2 Specifications

General

Radiator Dimensions	276mm x 125mm x 30mm
Fan Dimensions	120mm x 25mm
Noise Level	37.7 dBA
Radiator Material	Aluminum
Fan Airflow	70.69 CFM
Radiator Size	240mm
Tube Length	300mm
Warranty	5 years
Fan Speed	2435 RPM
Compatibility	Intel LGA 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, AMD AM2, AM3, FM1, FM2
Fan Static Pressure	4.65 mmH2O
Type	Liquid Cooling System
Tubing Material	Low-permeation rubber with black sleeving
