General| Total power | 750 W |
|---|---|
| AC input voltage | - V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+12V) | 62.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Cooling type | Active |
| Fan diameter | 92 mm |
| Product color | Black |

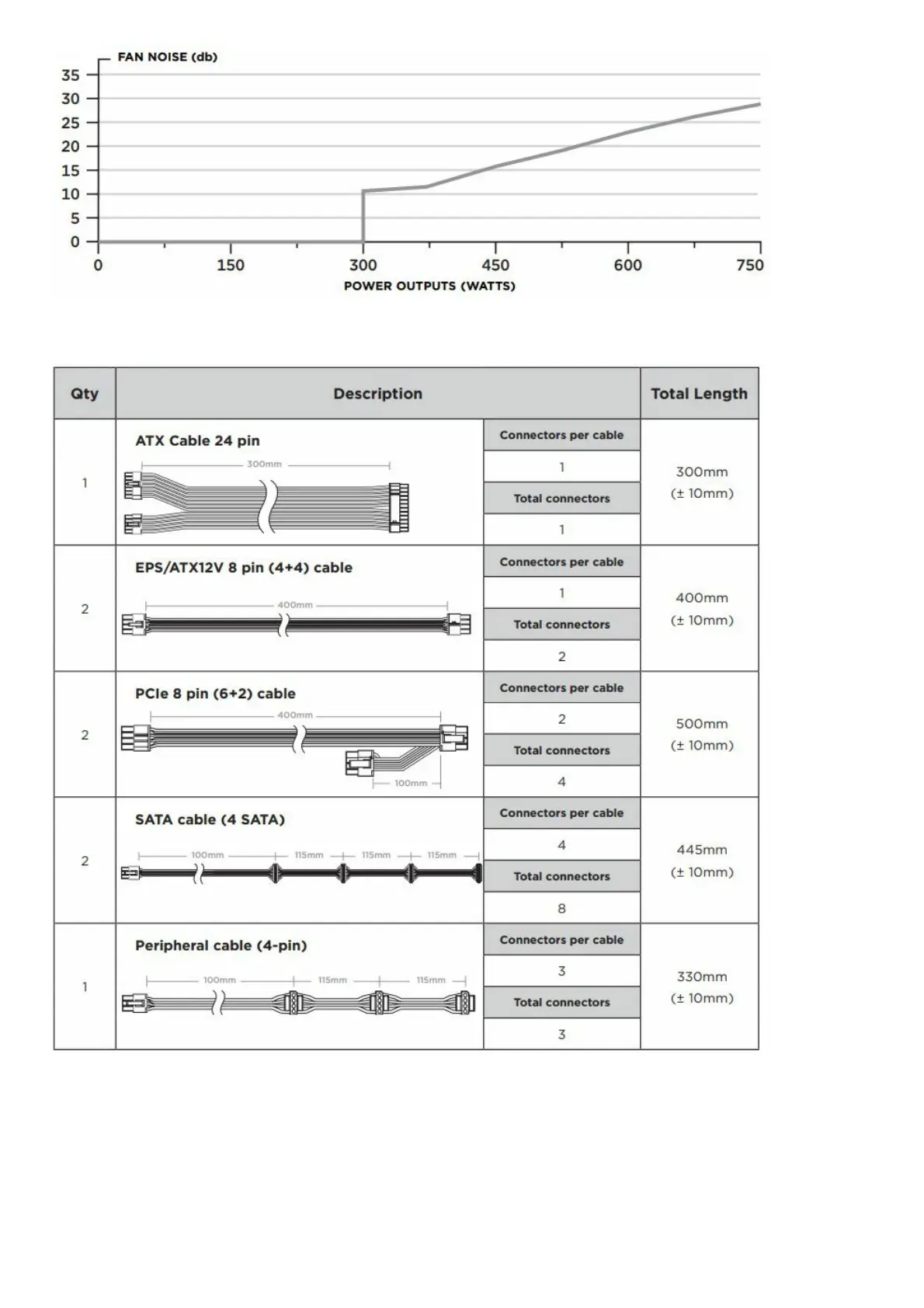

| Cabling type | Fully-Modular |
| CPU power cable length | 400 mm |
| SATA power cable length | 450 mm |
| EPS power connector (8-pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Floppy drive power connector | 0 |
| PCI Express power cable length | 500 mm |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (8-pin) | 4 |
| Peripheral (Molex) power cable length | 330 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Purpose | PC/server |
| ATX version | 2.4 |
| Bearing technology | Rifle |
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 100000 h |
| Continuous output rated temperature | 50 °C |
| Power supply unit (PSU) form factor | SFX |
| Harmonized System (HS) code | 84733020 |
Weight and Dimensions| Depth | 63 mm |
|---|---|
| Width | 125 mm |
| Height | 100 mm |
