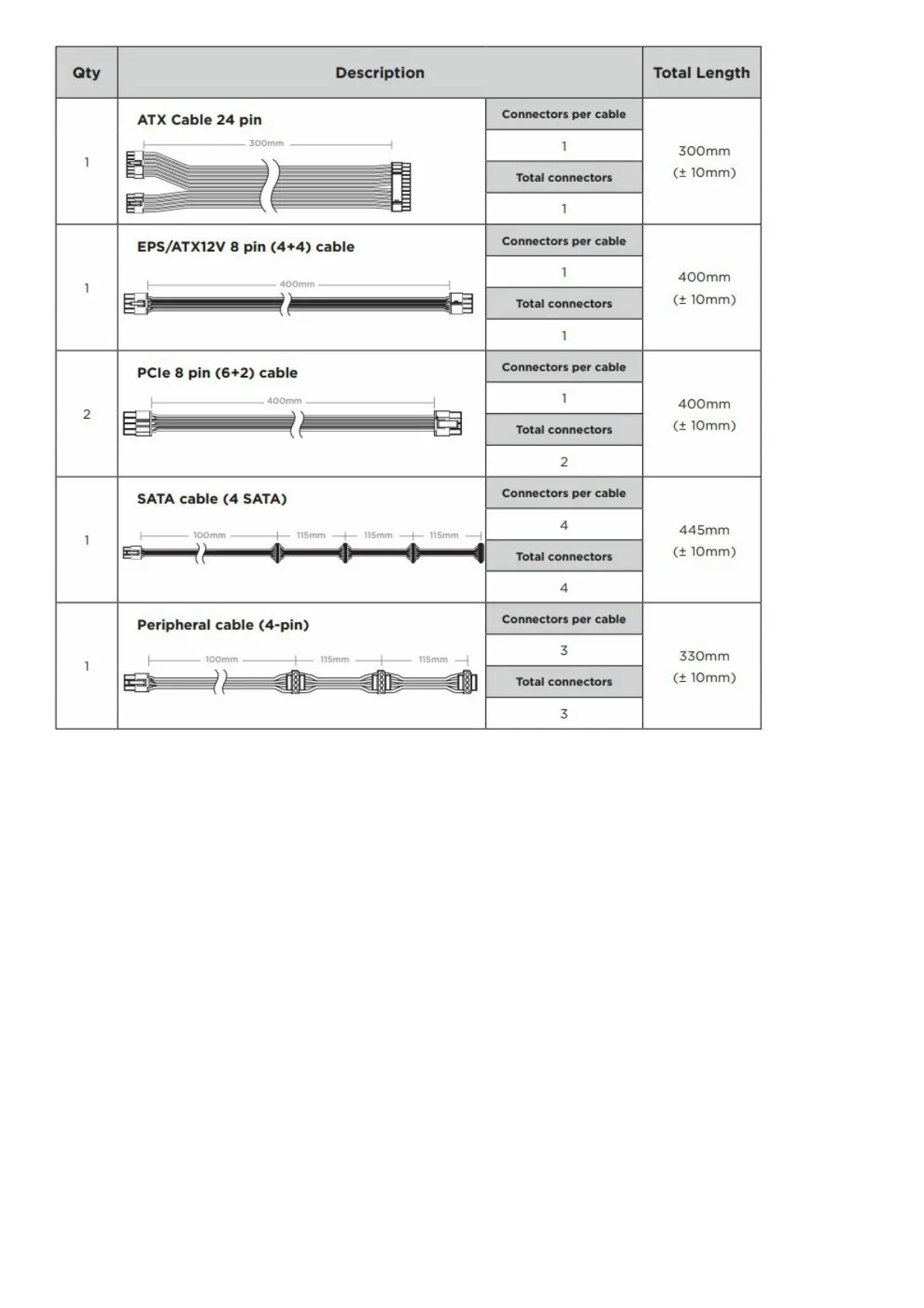

Page #9 background imageLoading...
Page #9 background image
Installing your NEW SF Series
Step A: Removing your existing power supply
If you are building a new system, skip to Step B.
1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing power supply.
4. Proceed to Step B.
Step B: Installing the CORSAIR SF Series power supply
1. Make sure the power supply’s AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3. Connect the 24-pin main power cable from the power supply directly to your motherboard.
4. Connect the eight-pin +12V (EPS12V) cable to the motherboard.
A. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
B. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this
four-pin cable directly to your motherboard.
5. Connect the peripheral cables, PCI-Express cables, and SATA cables.
A. Connect the peripherals cables to your hard drive and CD-ROM/DVD-ROM power sockets.
B. Connect the SATA cables to your SATA SSD or hard drive’s power sockets.
C. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
D. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
E. Make sure all the cables are tightly connected. Be sure to save any unused modular cables for future

Other manuals for Corsair SF750

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Corsair SF750 and is the answer not in the manual?

Corsair SF750 Specifications

General IconGeneral
Total power750 W
AC input voltage- V
Combined power (-12V)3.6 W
Combined power (+3.3V)130 W
Combined power (+5Vsb)12.5 W
Max output current (+12V)62.5 A
Max output current (-12V)0.3 A
Max output current (+3.3V)20 A
Max output current (+5Vsb)2.5 A
Cooling typeActive
Fan diameter92 mm
Product colorBlack
Cabling typeFully-Modular
CPU power cable length400 mm
SATA power cable length450 mm
EPS power connector (8-pin)Yes
Motherboard power connector24-pin ATX
Floppy drive power connector0
PCI Express power cable length500 mm
Number of SATA power connectors8
PCI Express power connectors (8-pin)4
Peripheral (Molex) power cable length330 mm
Peripheral (Molex) power connectors (4-pin)3
PurposePC/server
ATX version2.4
Bearing technologyRifle
80 PLUS certification80 PLUS Platinum
Mean time between failures (MTBF)100000 h
Continuous output rated temperature50 °C
Power supply unit (PSU) form factorSFX
Harmonized System (HS) code84733020
Weight and Dimensions IconWeight and Dimensions
Depth63 mm
Width125 mm
Height100 mm
