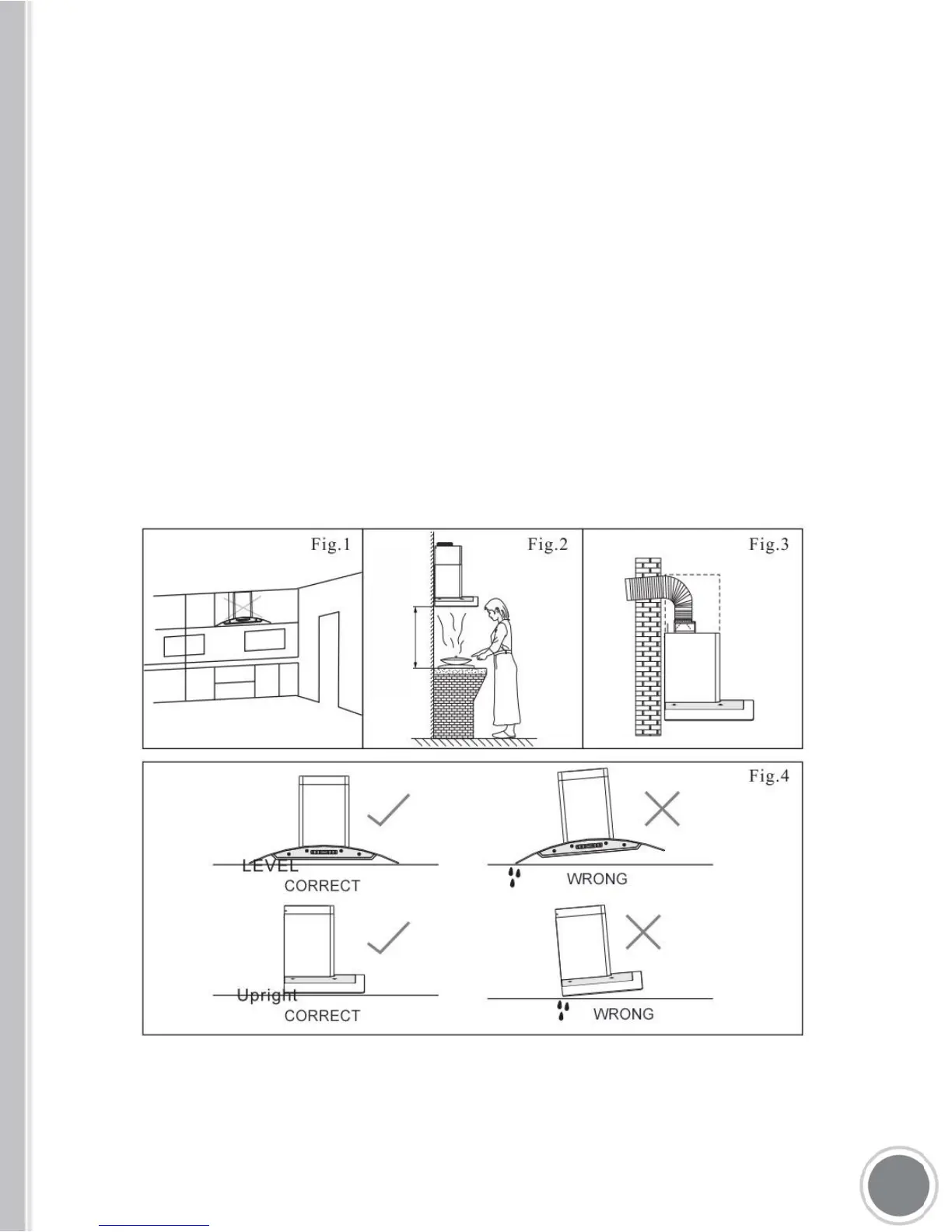

INSTALLATION REQUIREMENTS
1. Do not install the range hood where there are many open doors or
windows.This will cause reduced performance. (Fig. 1)
2. Install the range hood right above the cooktop. The optimal
distance between the cooktop and lower edge of the range hood is
25” to 35”. (Fig. 2)
3. In order to get optimal performance, do not over extend the
exhaust pipe and avoid unnecessary bending. (Fig. 3)
4. After hanging the unit on the wall, ensure the range hood is straight
5. The air outlet must be connected to chimney flues or combustion
gas ducts. Under no circumstances should the air outlet be connected
to ventilation ducts for rooms in which fuel-burning appliances are
installed.
6
25" to 35"
