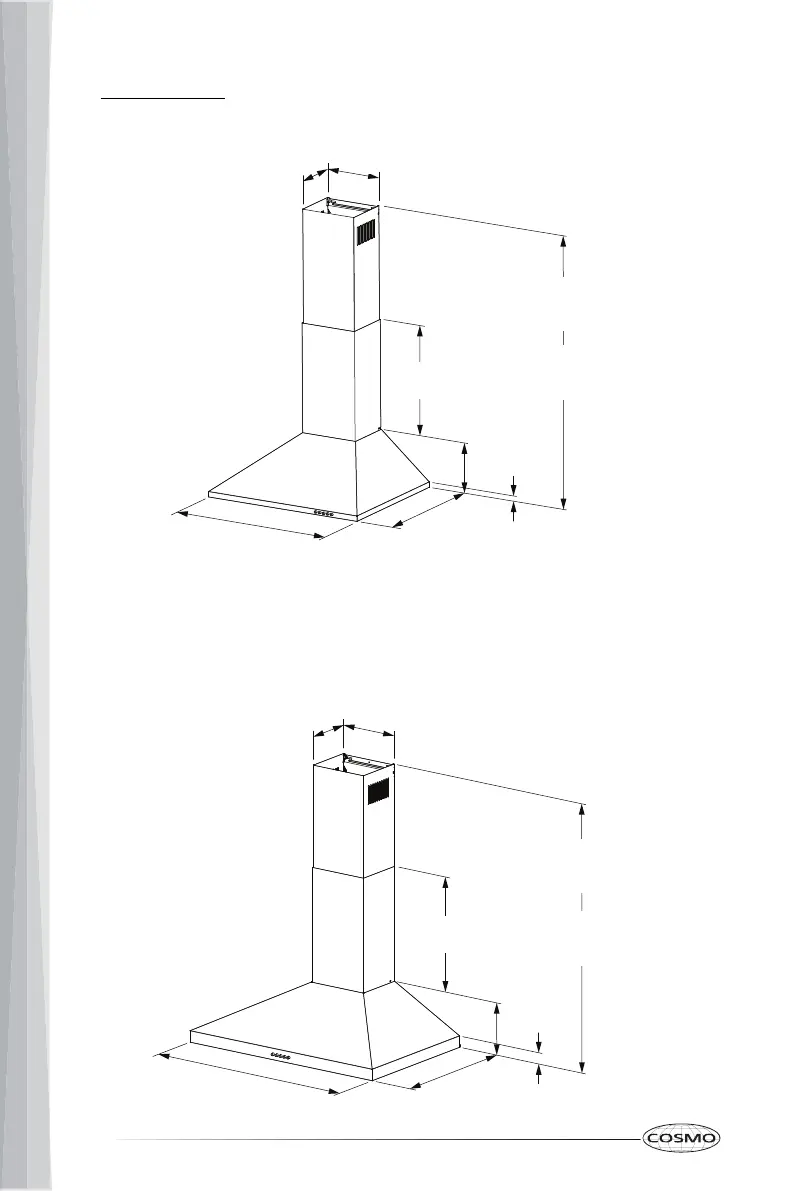

Cosmo COS-63190 - Step 7: Inner Chimney Final Attachment; Step 8: Filter Installation

12
COS-6324EWH
COS-63024P
6 ³⁄₄"
(17.2 cm)
8 ¹⁄₄"
(20.9 cm)
23 ⁷⁄₁₆" (59.5 cm)
18 ¹⁵⁄₁₆"
(48.1 cm)
¹³⁄₁₆"
(2.0 cm)
15 ¹⁄₂"
(39.3 cm)
7 ¹⁄₁₆"
(18.0 cm)
Ducted (Vented):
22 ⁹⁄₁₆" (57.3 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
Ductless (Recirculating):
26 ¹¹⁄₁₆" (67.8 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
6 ³⁄₄"
(17.2 cm)
8 ¹⁄₄"
(20.9 cm)
15 ¹⁄₂"
(39.3 cm)
7 ¹⁄₁₆"
(18.0 cm)
Ducted (Vented):
22 ⁹⁄₁₆" (57.3 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
1 ⁹⁄₁₆"
(4.0 cm)
29 ⁵⁄₁₆" (74.5 cm)
18 ⁷⁄₈"
(48.0 cm)
Ductless (Recirculating):
26 ¹¹⁄₁₆" (67.8 cm) min.
36 ⁵⁄₁₆" (92.3 cm) max.
