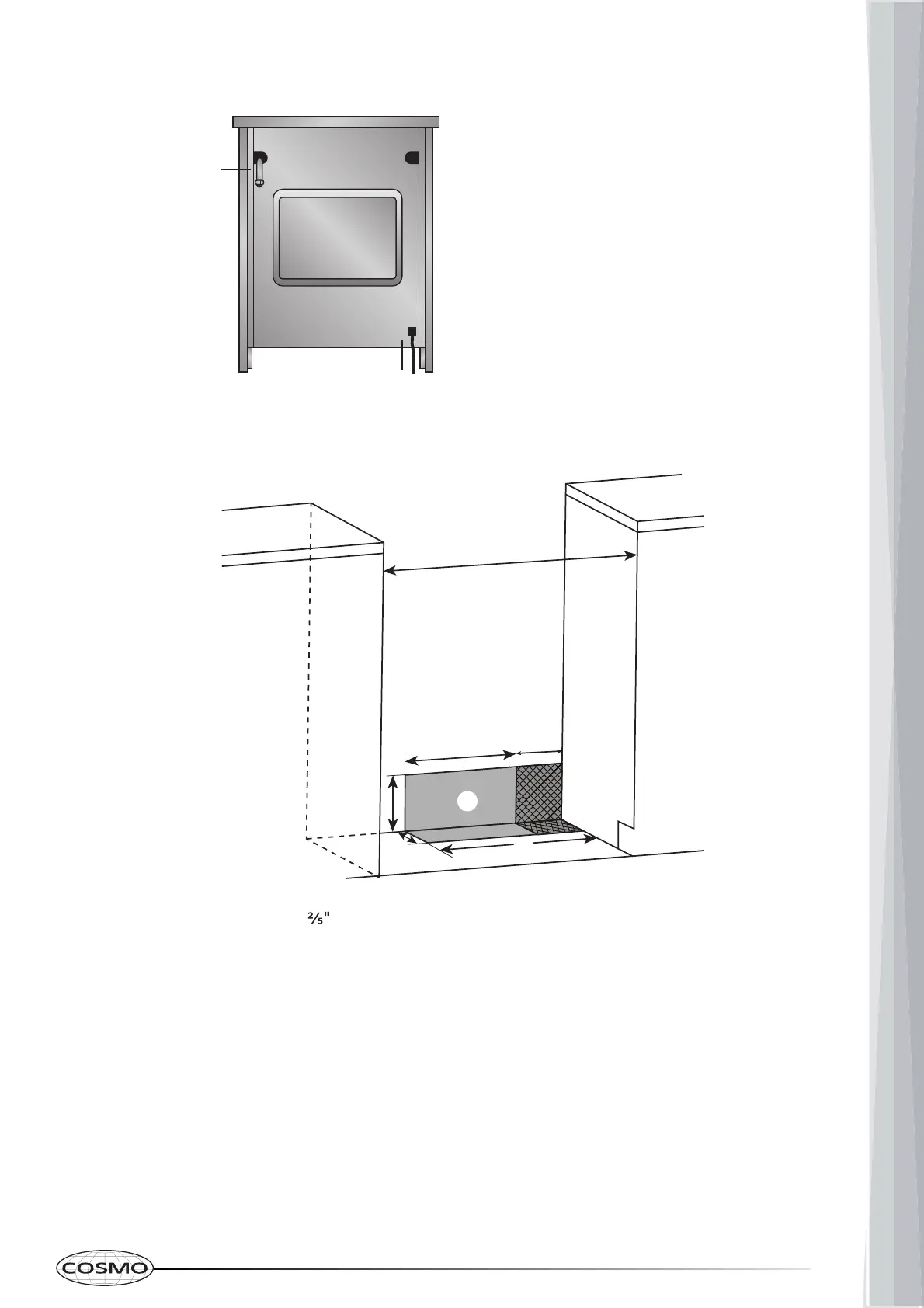

IMPORTANT: An electrical outlet in the floor, may be either recessed
or surface mounted, but an electrical outlet in the wall must be
recessed to make the connection.
a
b
e
d
g
h
c
f
a
b 11½" (29.2 cm)
c 6" (15.2 cm)
35 (90cm)
d 7¼" (18.4 cm)
e 3" (7.6 cm)
f 17½" (44 cm)
g Recommended Location for
Electrical Outlet
h Recommended Location for
Gas Supply Connection
*NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is
covered by not less than 1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024"
(0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the cooking and the bottom of an
uncovered wood or metal cabinet.
a
b
