DO NOT USE EXTENSION CORDS WITH
THIS APPLIANCE AS IT MAY RESULT IN
FIRE, ELECTRIC SHOCK OR OTHER
type of PERSONAL INJURY.
The appliance is equipped at the factory with an
electric supply cord set 4 wires type with ring
terminals (L1, L2, N, Ground) suitable for range
use UL/CSA listed type S RDT/DRT 2x6AWG (L1,
L2)+2x8AWG (N, G) rated 300V, 40 or 50A with
fused plug type NEMA 14‐50P; cable length 1,5
m.;incasethesupplycordsetmustbereplaced,it
shall be replaced with anidentical set havi ng the
same technical specs and following carefully the
instructionsanddiagramsbelow:

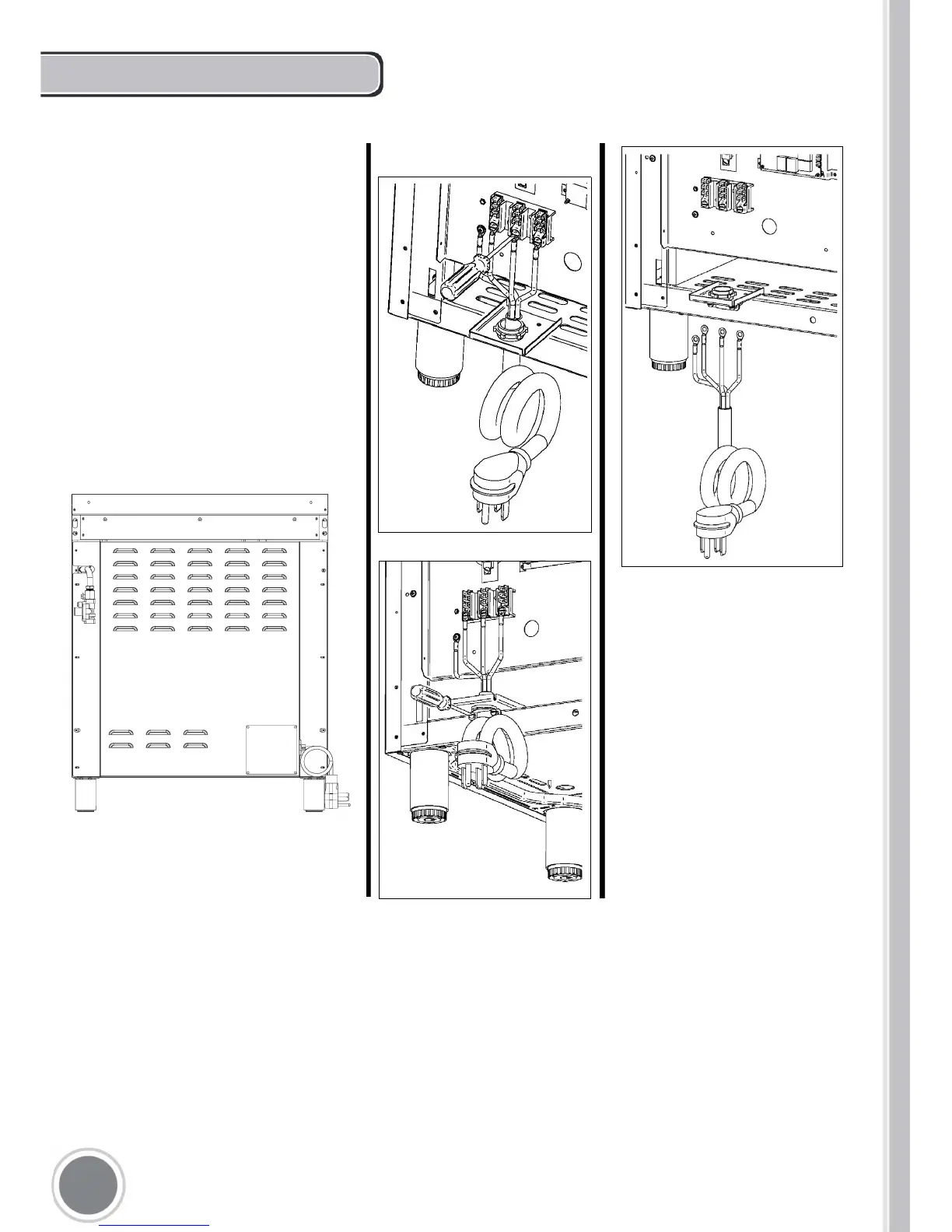

1) Disconnect appliance from electrical power
supplyreceptacle
2) Slideouttheappliancefrominstallationplace
toaccesstobackenclosurepanel
3) Remove back enclosure panel by removing
the6screwsasshownbelow
4)
Loosestrainreliefbyunscrewingthetwo
strainrelief'sscrewsasindiagram.
5)
Remove damaged supply cord set by taking
off the 4 electrical connection screws (block L1,
N,L2andGroundscrew,seediagram)
6) Insert the new supply cord set in the strain
relief and lock it with two strain relief's
screwsinsuitableposition.
7) FixwelltheringterminalsG,L1,N,L2ofthe
new supply cord set asshown in diagram
withits4screws
8) Re‐install the back enclosure panel with 6
screws
9) Slide the appliance back into itsproper
location
10) Re‐connect the appliance to the electrical
power.
