ELECTRICAL CONNECTION
The appliance shall be connected to a single phase
electric line rated at 120/208Vac or 120/240Vac
and 60Hz frequency.
Electric power rating:
- 120/208Vac: 10 A max
- 120/240Vac: 12 A max
Heating elements power rating:
- Oven bake element = 1500 Watt
- Oven circular element = 3200 Watt
- Oven broil element = 2850 Watt

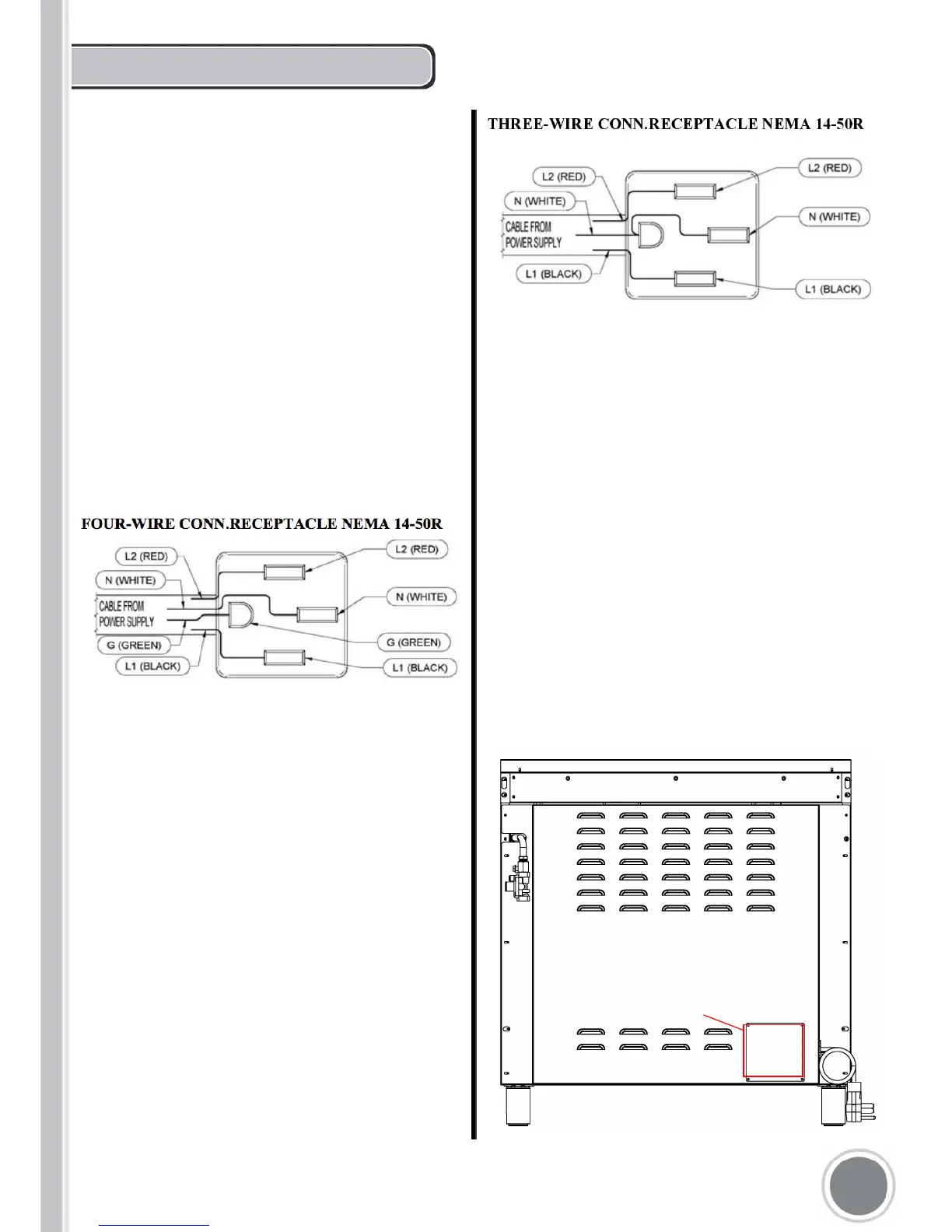

Install a suitable electric power supply receptacle
connection type NEMA 14-50R able to support a
load of at least 30 A (per line) according to local
code requirements. For four wires power
supply connection system see diagram below.
- Connect the GROUND receptacle terminal to the
incoming GROUND (GREEN) electrical supply wire
M
e o
Check your local code for which of the options below
should be used in grounding the receptacle power
suppliy connections.
e oeo
- Connect the L1 receptacle terminal to the
incoming BLACK electrical supply wire(L1-hot
wire)
- Connect the L2 receptacle terminal to the
incoming RED electrical supply wire (L2-hot
wire)
- Connect the NEUTRAL receptacle terminal to
the incoming NEUTRAL (WHITE) electrical
supply wire
When electrical connection,
please refer to the rating label, the rating
label locat near the entrance of power
supply cord.
11
e oeo
ӡ1
1ӡ
ӡ2
2ӡ
ӡ
Rating label.
