Cosmo COS-EPGR486G - Oven Handle Installation

34
EPGR486G
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

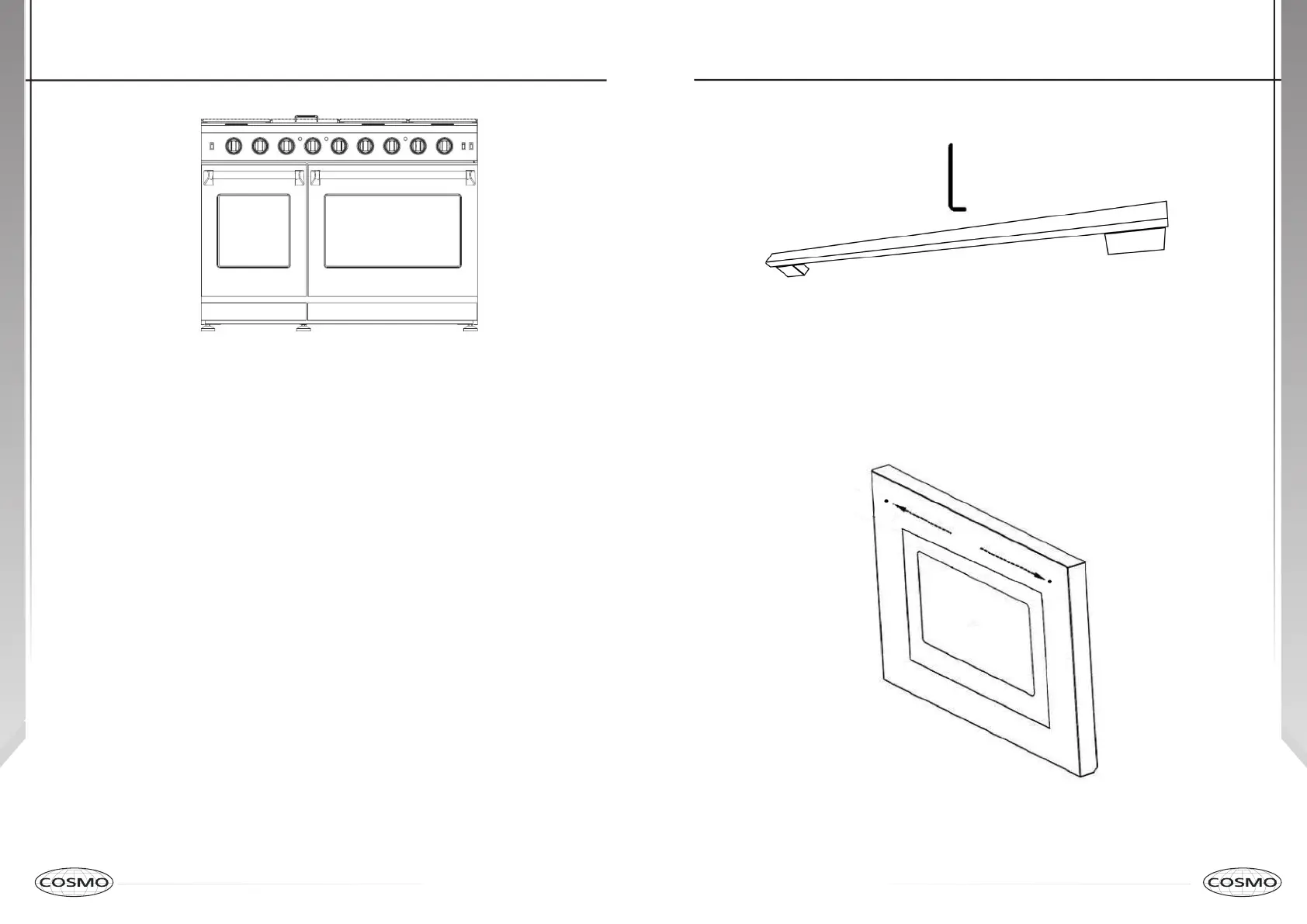

EPGR486G (From Left to Right):
① ②: Surface Valve Knob
③ ④: Griddle/Small Oven Thermostat Knob
⑤ ⑥: Surface Valve Knob
⑦: Big Oven Thermostat Knob
⑧ ⑨: Surface Valve Knob
Oven Knob Installation Oven Handle Installation
1.) Check your installation kit for door handles.
1.) Open the Oven Door to access the door handle
screws which are pre-installed.
Your range may have a handle that needs to be
installed. Please use the following procedures
for oven door handle installation.
2.) Remove the pre-installed screws from the
oven door using the screwdriver.
60 61
• Handle (For 18”, 30” or 36” Oven): 1 pcs
• Screwdriver: 1 pc
