iLEARN System Manual

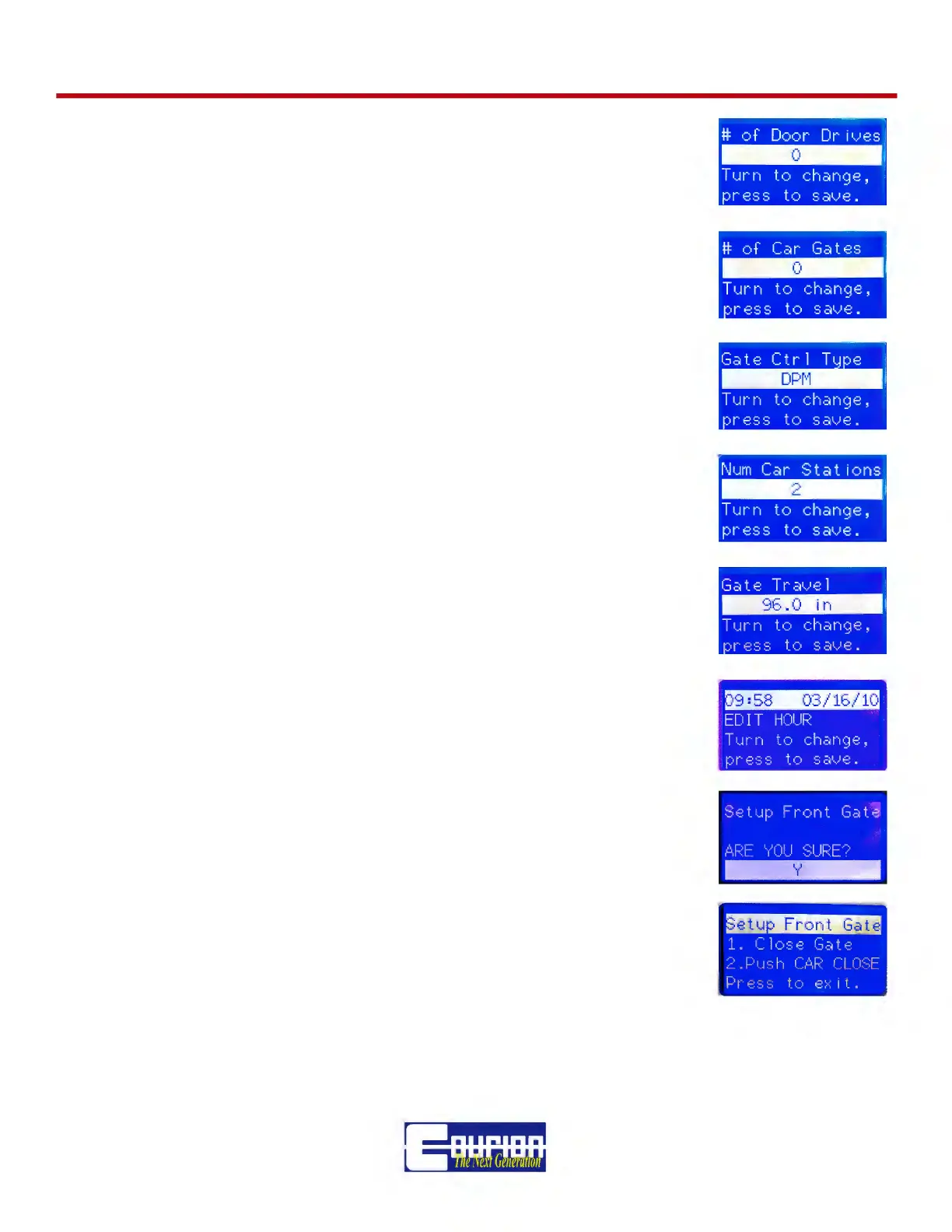

b. Enter the # of Hoistway iDRIVEs (both front and rear openings) in your
hoistway.
c. Enter the # of Car Gates (1 or 2) in your hoistway. System Default = 0.
d. Enter the Car Top Control Type (iDRIVE.G or iDRIVE.PLC). See label on
Car Top Control Enclosure for Car Top Control Type.
e. Enter the # of Car Stations (1 or 2) in your hoistway. System Default = 2.
f. Enter Gate Travel (generally the height of your Opening). System Default =
96”.
g. Set the correct Time and Date for your System.
h. If you have entered 1 or 2 Car Gates during Step #9 above, then select
Yes to set up the FULL OPEN and FULL CLOSE position for your Front and
Rear Gate.
i. Close the Front (Rear) Gate and push the COP Close Button.
