iLEARN System Manual
Initial Startup and Adjustment
A. Insure that all Hoistway Doors and Car Gates are in the FULL CLOSE Position.
B. Ensure that you have correctly completed all of your hoistway and car top wiring per COURION’s
Wiring Diagrams and the iSYSTEM User’s Manual. Most iSYSTEM malfunctions result from hoist-
way wiring errors or loose connections.
C. DO NOT complete the Elevator Control Interconnection until after completing the Initial Start-Up
and Adjustment Steps.
D. Please make sure you have placed the following temporary jumpers on COURION’s iLEARN
Door Control - L1 to INS (Inspection), L1 to HPB (Hall Push Buttons), and L1 to FSH (Fire Service
Phase-2 Hold). These jumpers will be removed after completing the interconnection interface with
the Elevator Control after the Start-Up and Adjustment procedures are completed.
E. If your Push Button Fixtures (Hall and COP) do not include a STOP button, then you need to pro-
vide a permanent jumper between DI-Common and DIO4 - Stop Button at EACH iDRIVE VFD Floor
Control and iDRIVE VFD Gate Control.
F. If you do not have an Emergency Unlocking Device at a particular oor, you need to provide a
permanent jumper between DI-Common and DI02 - EUD at EACH iDRIVE VFD Floor Control where
there is no EUD.
1. iLEARN Startup Wizard
a. Power up the 240 VAC Hoistway Power and 110 VAC to the iLEARN Door Control. The iLEARN
Door Control will automatically boot up to the STARTUP WIZARD screen. If it does not boot to the
STARTUP WIZARD, use the SELECT/MENU Knob on the iLEARN Door Control to scroll to the # of
iDRIVE Parameter under EDIT PARAMETER Menu Item and change the number of iDRIVEs to 0.
Restart the System.

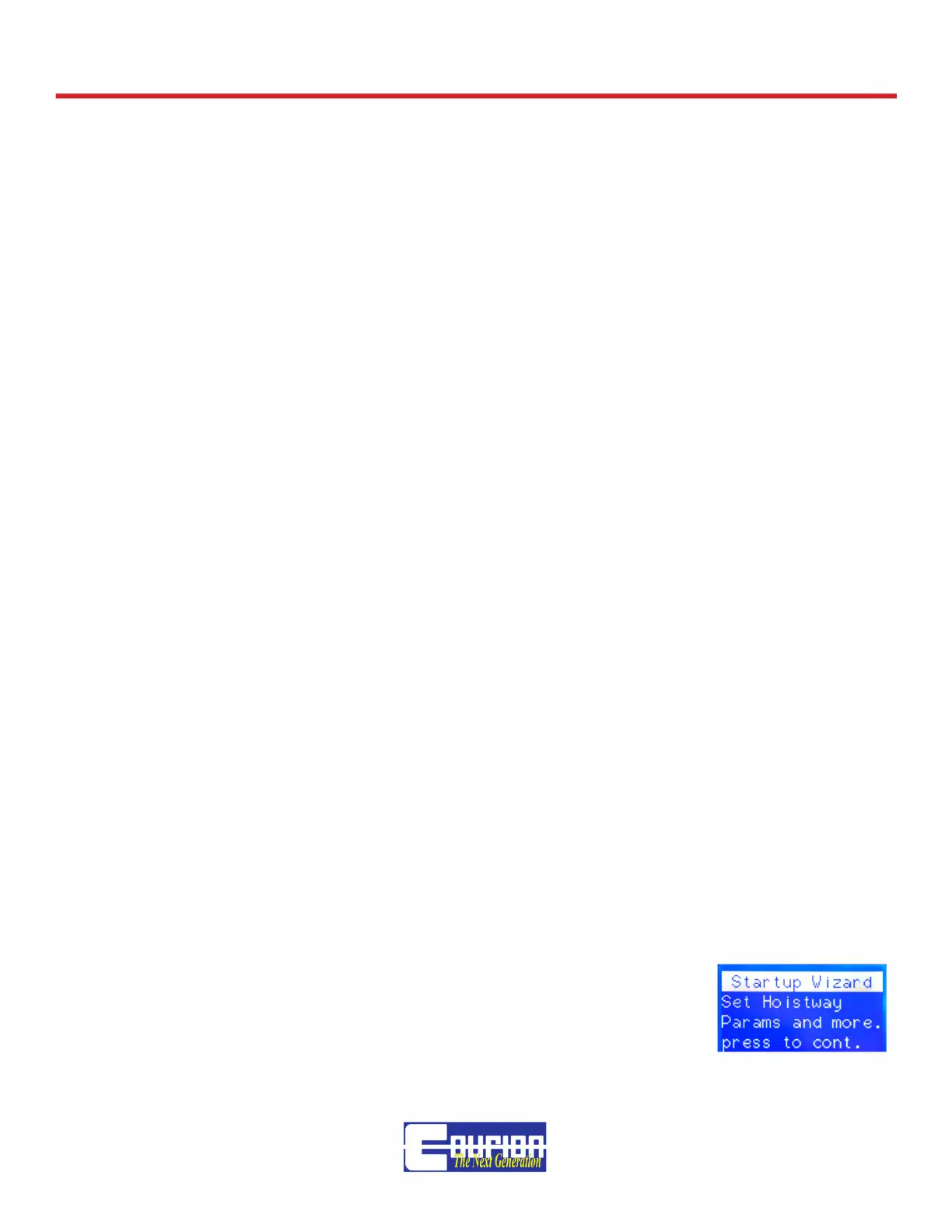

STARTUP WIZARD Screen - Press SELECT/MENU Knob to continue.
