iLEARN Door Control Menu Screens (continued)
1.7.2 Relay Outputs - This diagnostic allows the relay outputs to be tested one at a time.
When one of the following is selected, the relay is closed and the output is made.
DCF - Door Closed Front Relay
DCR - Door Closed Rear Relay
DNC - Dor Not Closed Relay
DNO - Door Not Open Relay
ALL - All four Relays
1.7.3 iLEM Function - Use only when the iLEARN Door Control is attached to an iLEARN Ex-
pansion Module (iLEM) and the iLEM Function is set to ON (See Section 4.9.11). An iLEM is
required only when COURION’s iLEARN System is interconnected with certain Elevator Con-
trols.
1.7.3.1 iLEM Version - This is the actual version of rmware loaded in the iLEM.
1.7.3.2 iLEM DINS - Indicates the status of the iLEMs digital inputs:
FO - Front Open RO - Rear Open
FC - Front Closed RC - Rear Closed

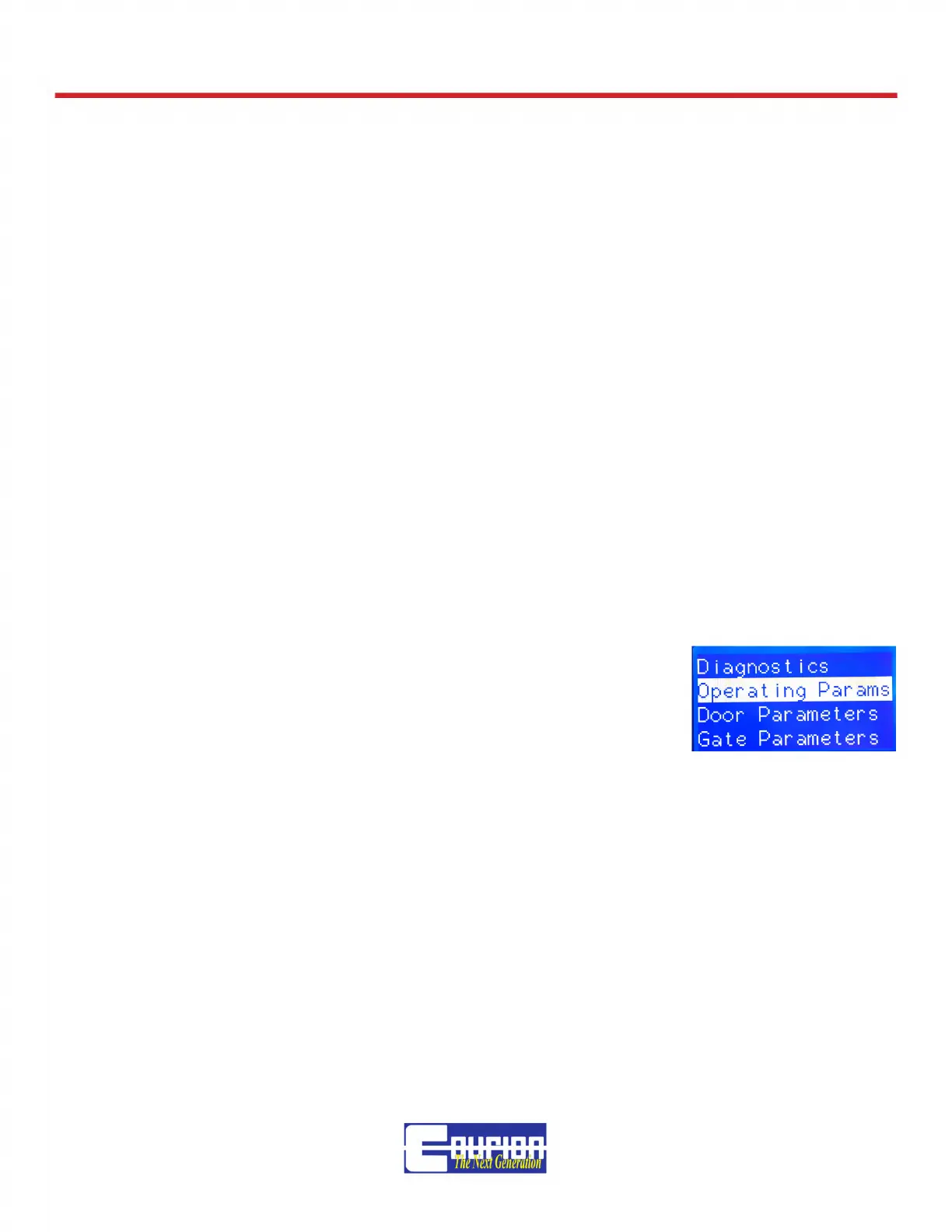

Operating Parameters
This menu allows operational parameters to be adjusted to suit the
needs of individual installations.
IMPORTANT - For changes to these Parameters to take effect, the
COURION CANbus Network must by RESTARTED using Restart
System under Diagnostics.
2.1 # of Door iDRIVES - This is the number of iDRIVE VFD Floor Controls (door openings) in the
system (both Front and Rear).
2.2 # of Car Gates - This is set to ‘1’ for front only or ‘2’ for a front and rear gate system.
2.3 Gate Control Type - Default = DPM. This is an iDRIVE.G Car Top Controller. If you have an
iDRIVE.PLC Car Top Controller, change the selection to PLC
2.4 # of Car Stations - Default = 2. This is the number of Car Stations (both front and rear).
When # of Car Stations is set to 1, and there are two (2) Car Gates, then the iLEARN System as-
sumes that the Front and Rear Openings are staggered.
To Next Page
