iLEARN System Manual
iLEARN Door Control Menu Screens (continued)
2.5 Warning Bell Timer - Default = 5.0s. Time the Warning Bell sounds before the gate begins
closing. Not in effect while in Fireman’s Service.
2.6 Timed Close - Default = 1.0 min. Time before an Automatic Close operation is initiated follow-
ing an Open operation. The Automatic Timed Close function is enabled by setting the ATC input
high.
2.7 Constant Pressure Close - (On or Off) Default = ON. When ON, the close button must be
held until the doors and gates are completely closed. When OFF, the close button requires Mo-
mentary Pressure.
2.8 Stay Set - (On or Off) Default = ON. When ON, an Automatic Open will be generated when
the doors “bounce” by ¾” or more. Both the Open and Close Door iSENSORs must be initialized
for Stay Set to operate.
2.9 Operate Together - (On or Off) Default = OFF. When ON, Passenger Sequence Operation is
turned off and the doors and gate operate together.
2.10 Fire Service Type - Standard ASME (default) or New York City or Chicago

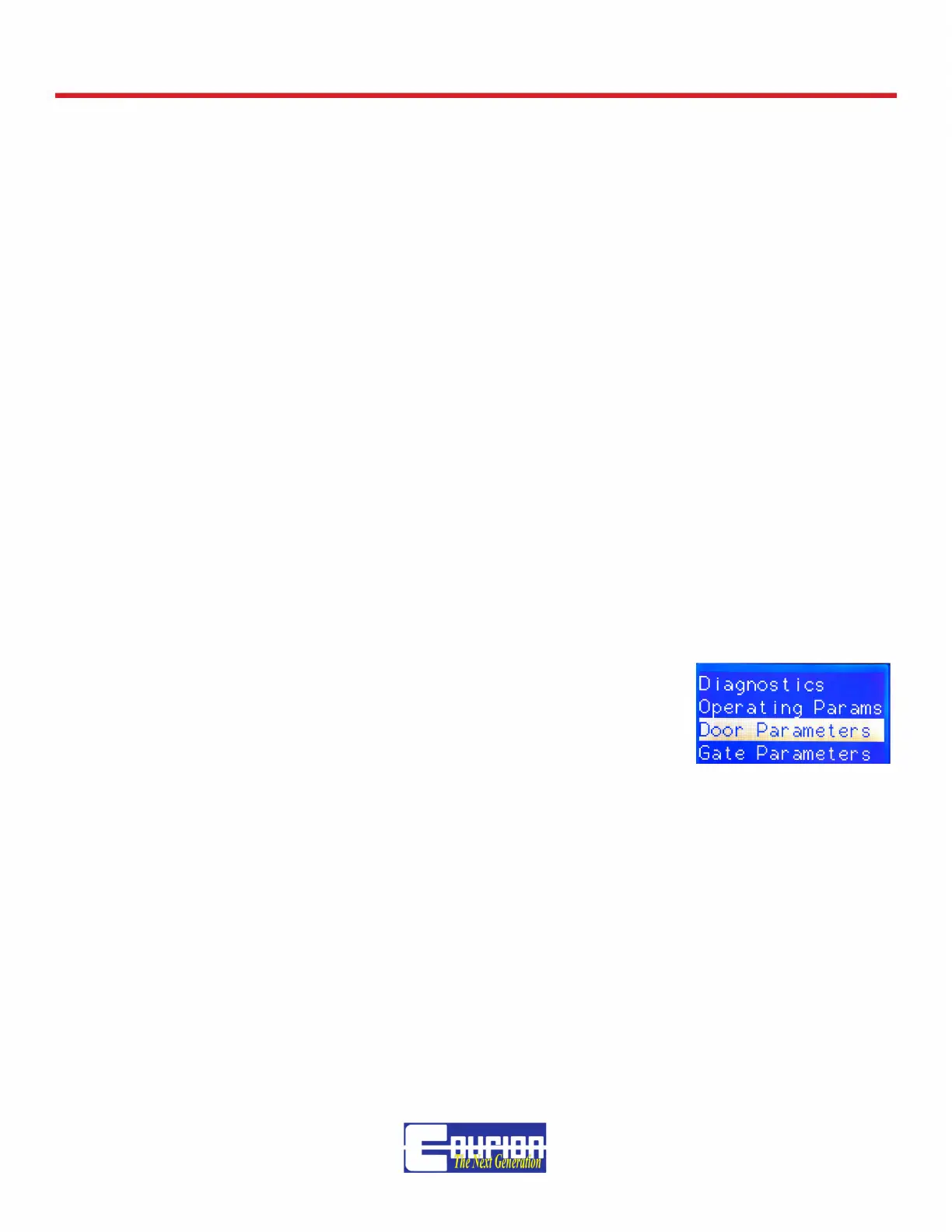

Door Parameters
This menu allows hoistway door operational parameters to be adjusted to
suit the needs of individual installations.
IMPORTANT - For changes to these Parameters to take effect, the
COURION CANbus Network must by RESTARTED using Restart
System under Diagnostics.
3.1 Extra Door Time - (On or OFF) Turning this ON changes the Door Timeout from 30s to 50s.
This is used when you have a large single section door panel. Call Courion for additional details.
This parameter does not affect the Gate Timeout (30s).
3.2 Fast Door Speed - Default = 100%. (100% corresponds to 60Hz). This is the speed the
doors run before reaching the “Slowdown Distance” (approximately 8” from FULL OPEN or FULL
CLOSE).
3.3 Slow Door Speed - Default = 50%. (50% corresponds to 30Hz). This is the speed the doors
run when in the “Slowdown Distance” (approximately 8” from FULL OPEN or FULL CLOSE).
