iLEARN System Manual
PA & PAE INTERLOCK
WIRING DIAGRAM

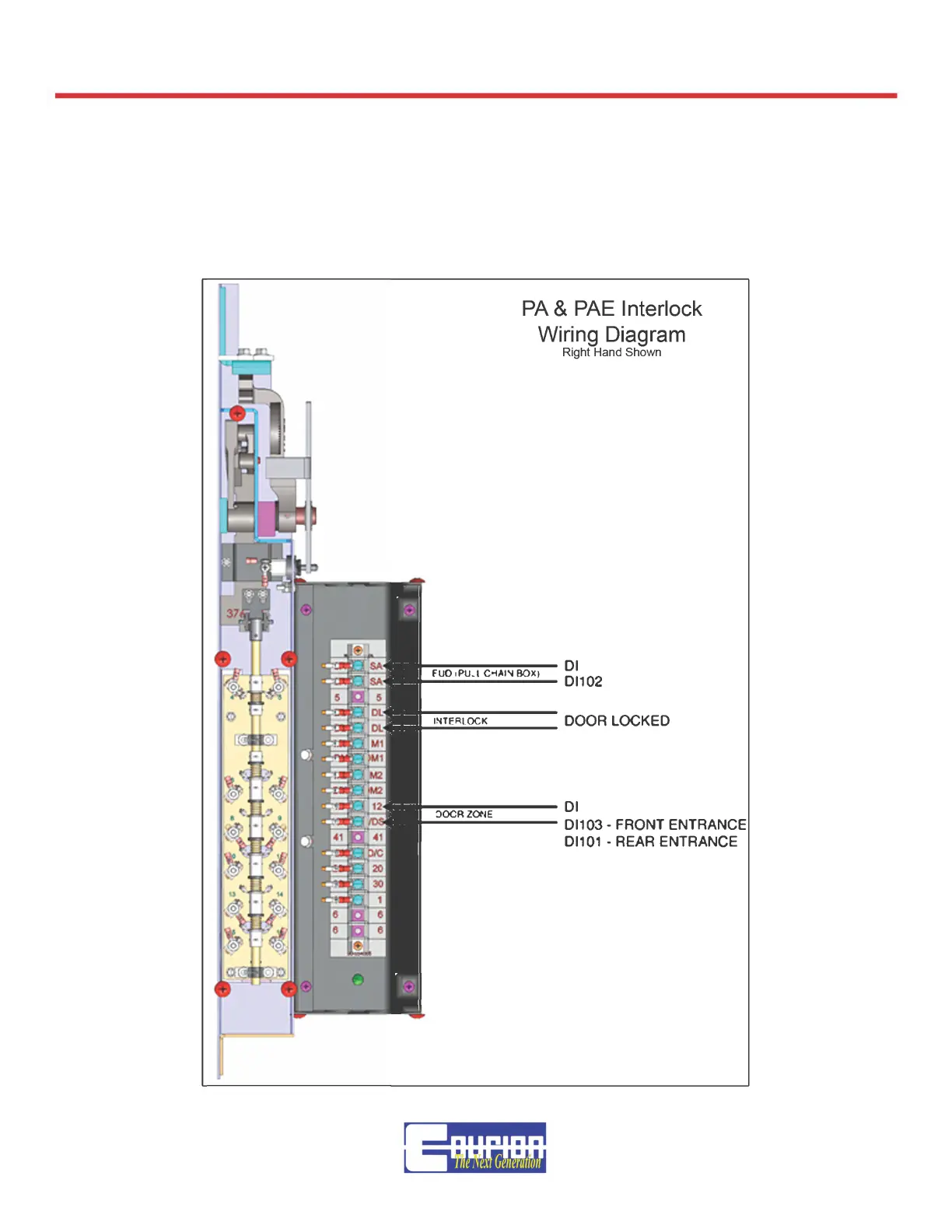

When wiring COURION’s “PA” Style Interlocks, refer to the terminal cross reference on the PA Inter-
lock connection diagram located below. Be sure to properly locate type “PAE” interlocks only at oors
with emergency unlocking devices (also known as EUDs). After wiring the “PA” interlocks, check
adjustment of the roller lever as indicated on the diagram located on the next page.
