Disassembling and refitting
4-4
Coway co., Ltd
4-2-2

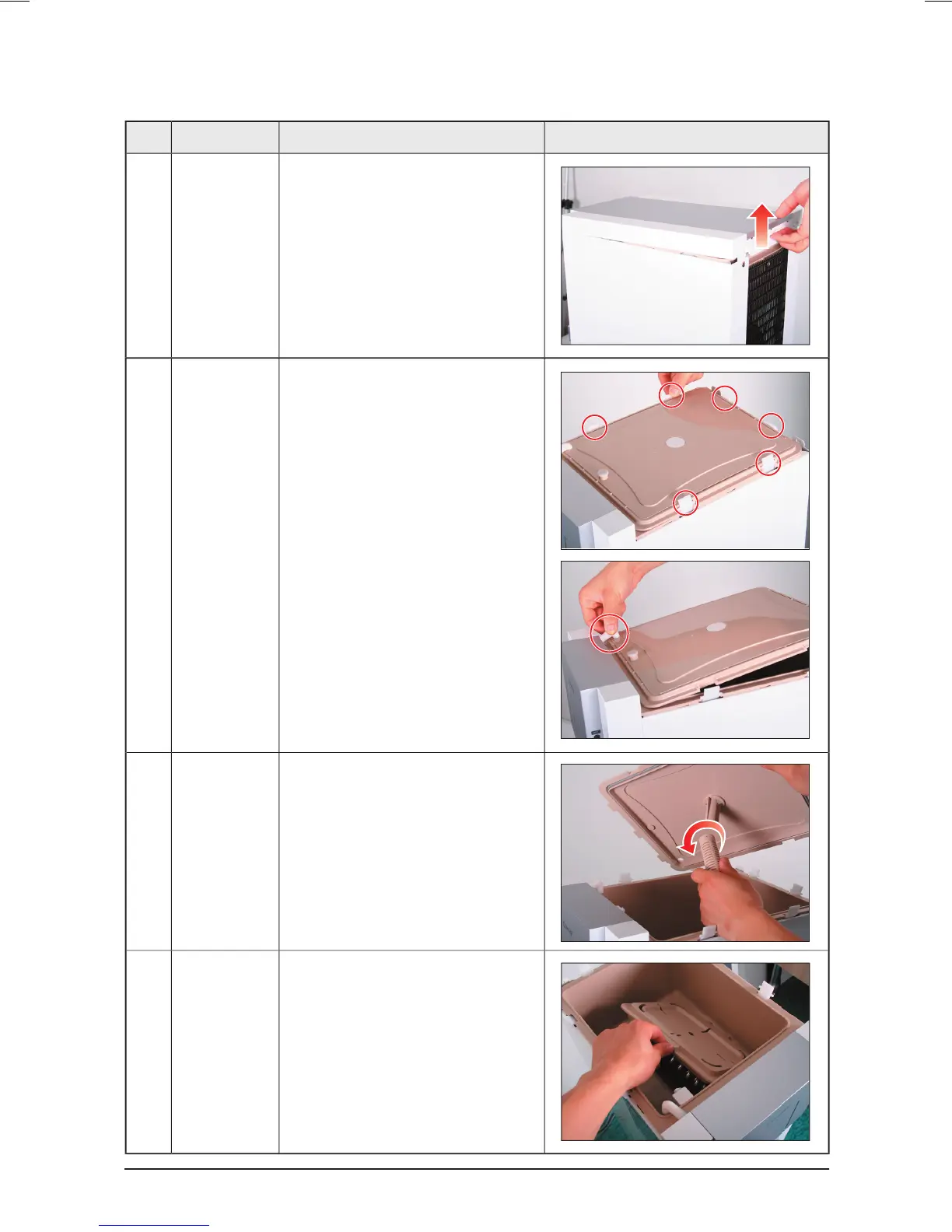

Separating the top cover
No.
Part name
Explanation
Reference picture
1
T
op cover
Assy
1)
Separate the top cover assy in
the direction of the arrow
.
2
Main tank
cap
Assy
1)
Open the 6 tank sealing clips.
2)
Separate the overheating hose
from the main tank cap assy
.
3
Ceramic
filter
1)
Remove the ceramic filter by
turning it counter clockwise.
4
Separate
board
1)
Remove the separate board
(cold water/purified water
separation board).
CHP-06EL-eng.indb 4
2007-10-19 ｿﾀﾈﾄ 1:03:28
