Coway CHP-06EL - Separating the Front Upper Part; Separating the Front Lower Part

Disassembling and refitting
Coway co., Ltd
4-5

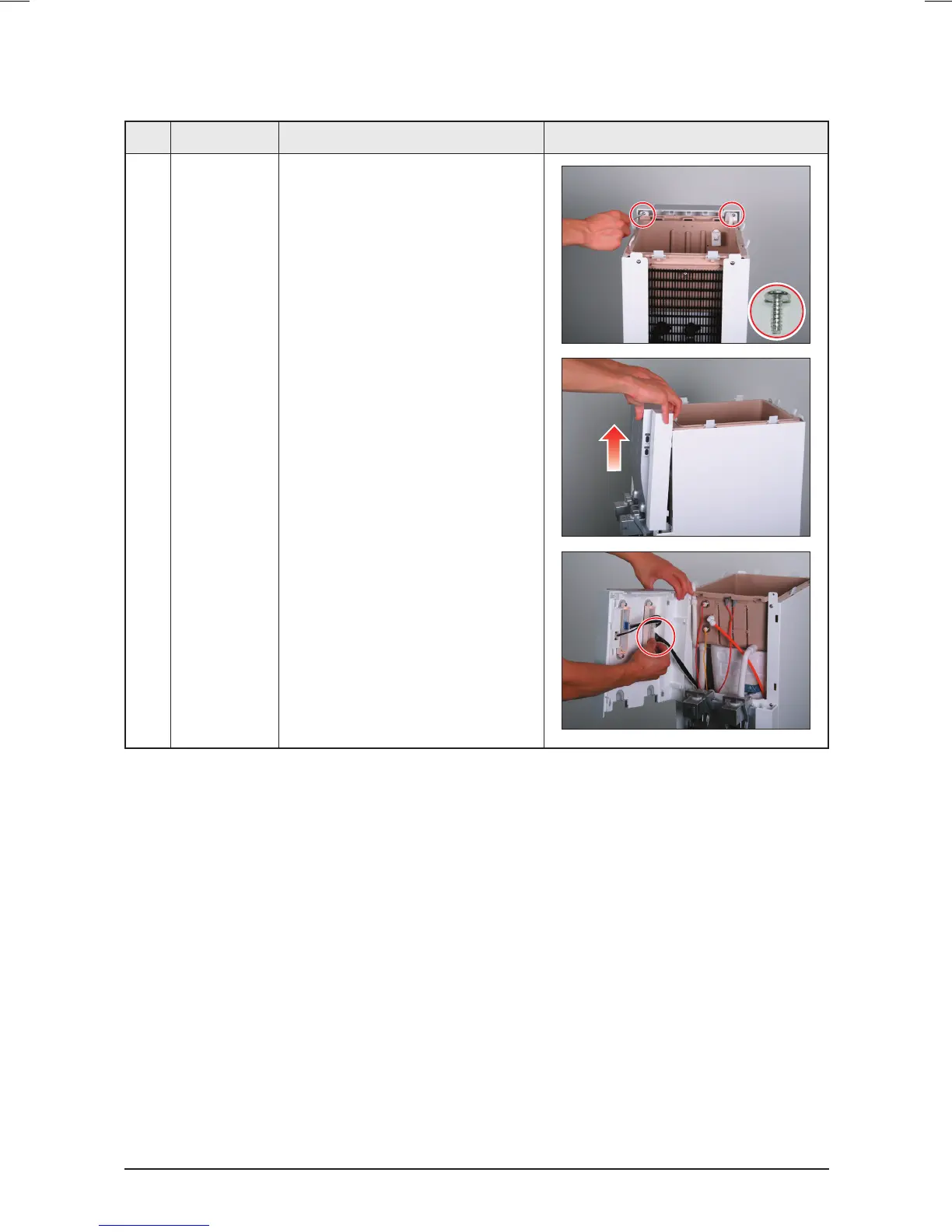

4-2-3 Separating the front upper part
No. Part name Explanation Reference picture
1 Front upper
assy
1) Remove the 2 screws from the
back of the front upper part.
: 2 screw tappings (THT2, 4x10,
MSWR, Ni-P)
2) Remove the front upper assy by
lifting it upward.
3) Separate the connector to the
front upper assy.
