Disassembling and refitting
4-6
Coway co., Ltd

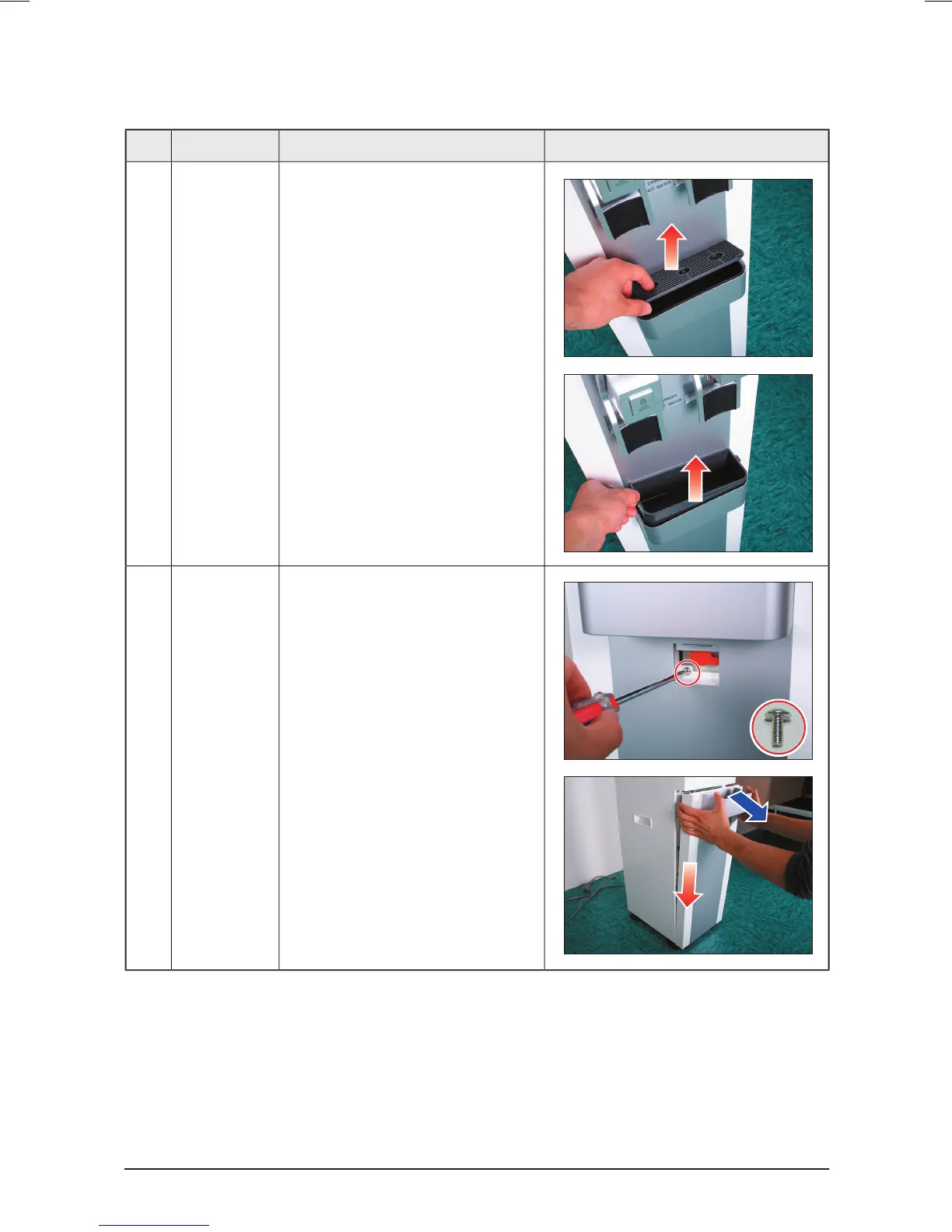

4-2-4
Separating the front lower part
No.
Part name
Explanation
Reference picture
1
T
ray
1)
Remove the tray grille by lifting it
upward.
2)
Remove the tray
.
2
Front lower
cover assy
1)
Remove the screw from the front
lower cover assy
.
:
Screw machine (THM, 4X10,
SUS430)
2)
Remove the front lower cover
assy by pushing it downward.
CHP-06EL-eng.indb 6
2007-10-19 ｿﾀﾈﾄ 1:03:43
