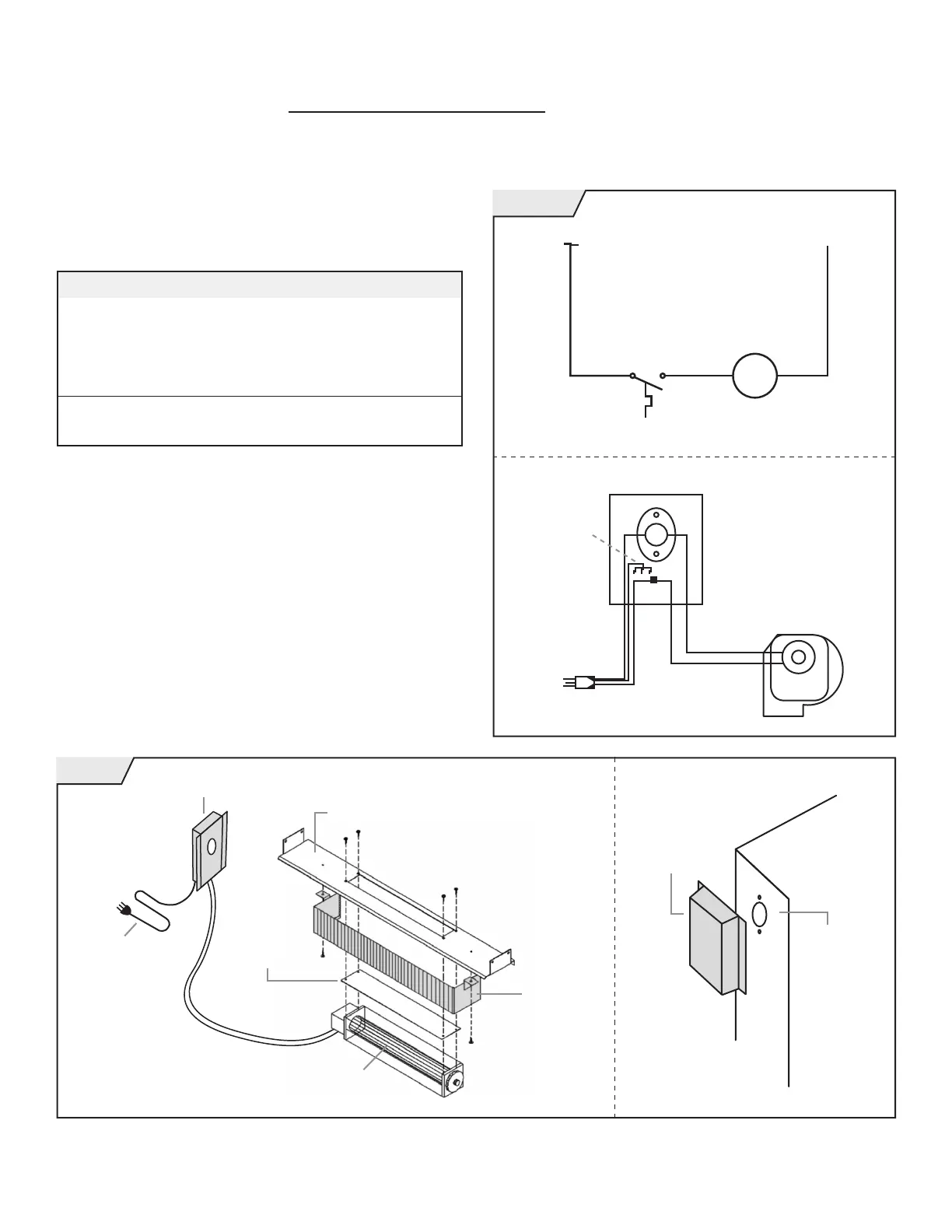

DVB-3BLOWERKITINSTALLATION-(OPTIONAL)
This kit must be installed by a qualified installer or service technician only.
Compatable with CDV15-C / CDV25-C / CDV33-C Series.
L1 L2
Blue Black
Fan Switch
LADDER
SCHEMATIC
Motor
Fan Switch
Blower Motor
Green
Power Cord
Black
Black
Black
Blue
PICTORIAL
SCHEMATIC
Junction Box
Floor
Shield
Power
Cord
Blower
Cover
Shield
(Remove
& Discard)
Blower
Shield
Junction
Box
Wrapper
Fig. 15-B
If any of the original wire supplied with this appliance has
to be replaced, it must be replaced with type 105 degree
C wire or its equivalent.
PART DESCRIPTION PART NO.
BLOWER HOUSING w/ Motor & Blower 70201
JUNCTION 43610
JUNCTION BOX COVER 43620
FAN SWITCH 120 Degree 70110
CORD SET 80202
COVER SHIELD 43078
BLOWER SHIELD CDV25/33-C 43625
FIG. 15-A
Black Black
