2.6.6 High Voltage Cables
The X-ray tube should be mounted in its normal fixture i.e. tube stand or other device.To connect
the High Voltage Cables:
GND
-CATHODE-
+ANODE+
CMPTANK.CDR

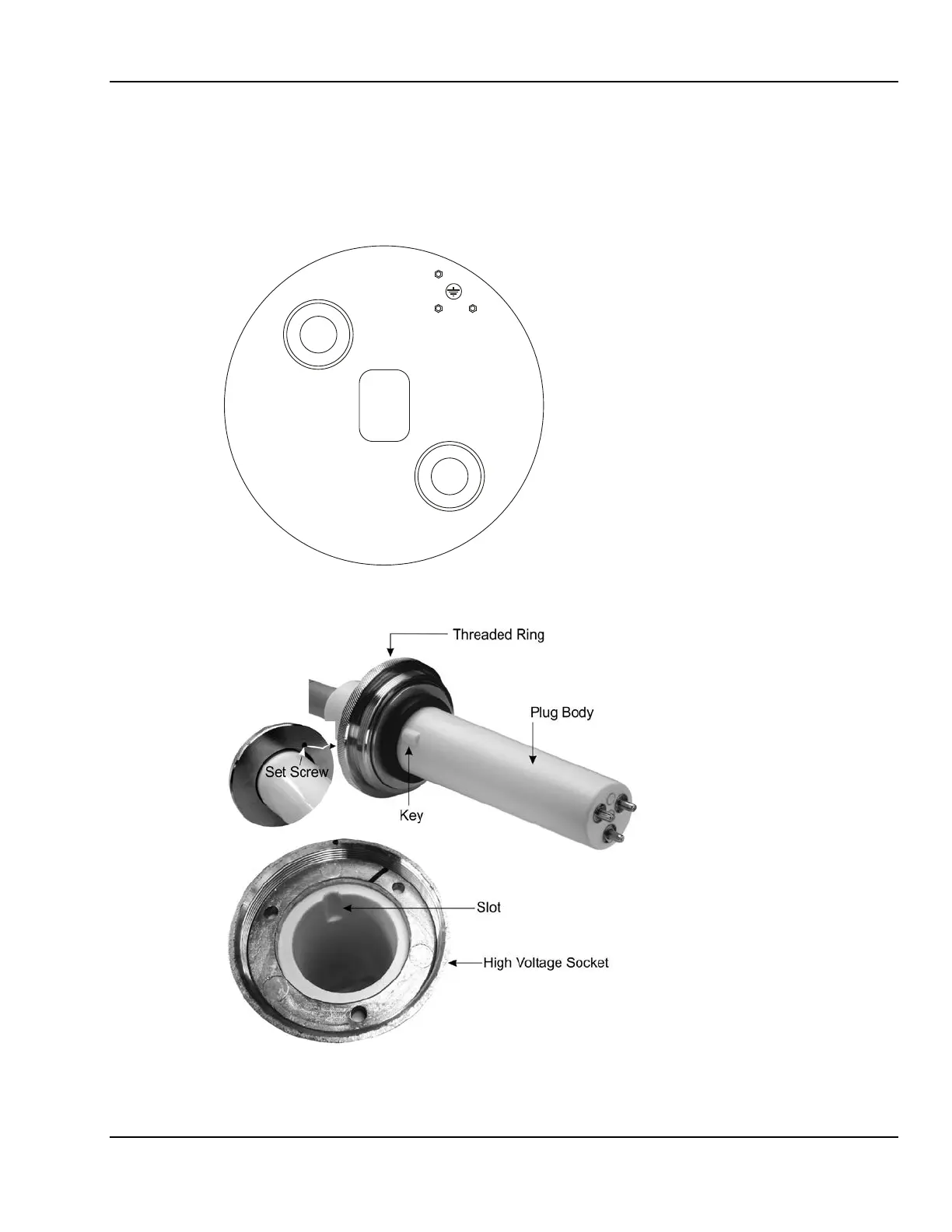

Figure 2-9A: HV connector identification
Figure 9B: HV cable and socket
