CPI CMP 200 - Hand Switch (Optional)

CPI Canada Inc. Installation 2
2.6.1 Control Console (Cont)

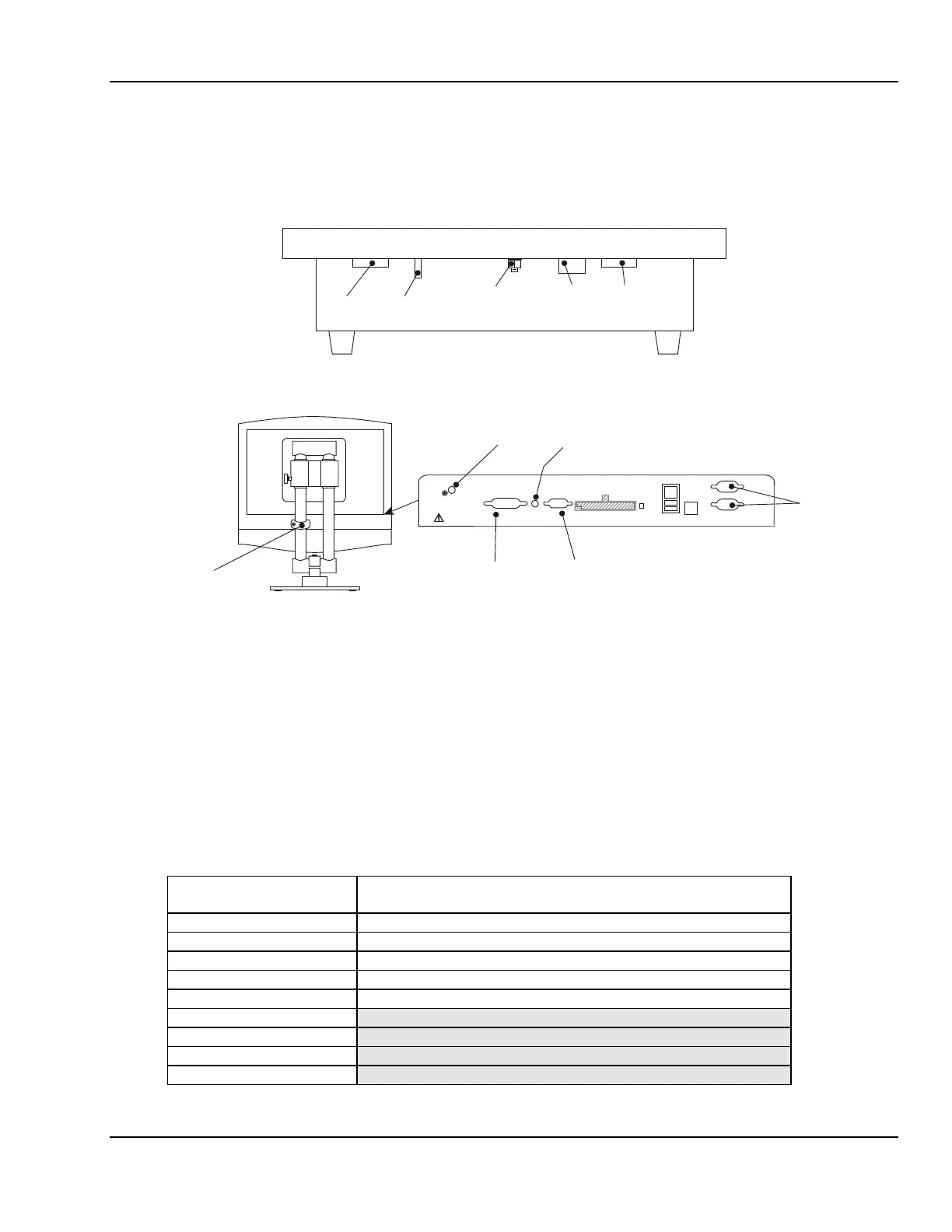

Figure 2-4 shows the designations of the connectors on the rear panel of the membrane and touchscreen
consoles.
J3
HAND
SWITCH
LCD
CONTRAST
CONSOLE
GROUND
J8
GENERATOR
INTERFACE
J4
DATA
LINK
FILE: CMP RAD_CONS2.CDR
MEMBRANE CONSOLE
TOUCH SCREEN
CONSOLE
HS
HAND
SWITCH
COM 1
COM 2
&
SERIAL
PORTS
GEN
GENERATOR
INTERFACE
SET SCREW
COLLAR
CONSOLE
GROUND
COM 1
COM 2
USBB
ETH
USBA
SW1
CF
HS
LO
GEN
LO
AUDIO
LINE OUT
Figure 2-4: Rear of control console
2.6.2 Hand Switch (Optional)
The optional hand switch, if ordered from CPI Canada Inc, is supplied pre-wired to a male 9 pin
subminiature “D” connector. This connects to J3 on the membrane console or to HS on the touchscreen
console. A male 9 pin subminiature “D” connector will need to be provided by the installer if the CPI
supplied hand switch is not used.
Pin assignments are as follows:
PIN NUMBER
PIN CONNECTIONS
(J3 membrane console) / HS touchscreen console)
1
X-ray
2
No Connection
3
Prep
4
No Connection
5
Common (ground)
6
NOT USED
7
NOT USED
8
NOT USED
9
NOT USED
Use and disclosure is subject to the restrictions on the title page of this CPI document.
CMP 200

X-Ray Generator Service Manual Ch # 901476-02 Rev. P Page 2-9
