2 Installation CPI Canada Inc.
2.8.2 Tube type setting on DIP switch SW1 for DSS Boards #728877-06 and #903132-02 (Cont)
THE DIP SWITCH SHOWN IN FIGURE 2-10 IS REPRESENTATIVE OF ONE STYLE OF SWITCH
ONLY. DEPENDING ON MANUFACTURER, YOUR DIP SWITCH STYLE MAY VARY. PLEASE NOTE
THE ON / OFF POSITIONS CAREFULLY FOR YOUR UNIT.

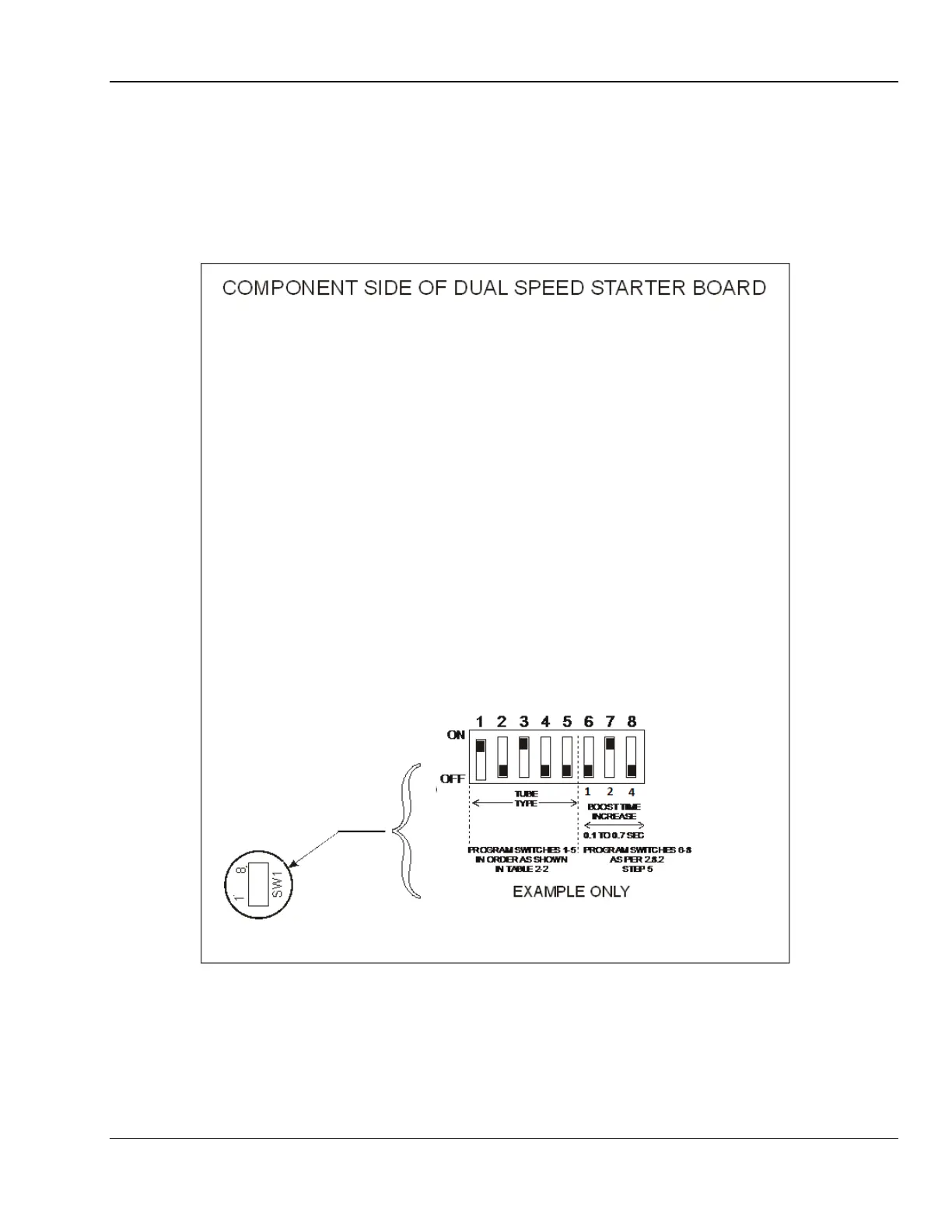

Figure 2-10: Dual-Speed Starter DIP switch SW1
Use and disclosure is subject to the restrictions on the title page of this CPI document.
Page 2-22 CMP 200
ļ
X-Ray Generator Service Manual Ch # 901476-02 Rev. P
