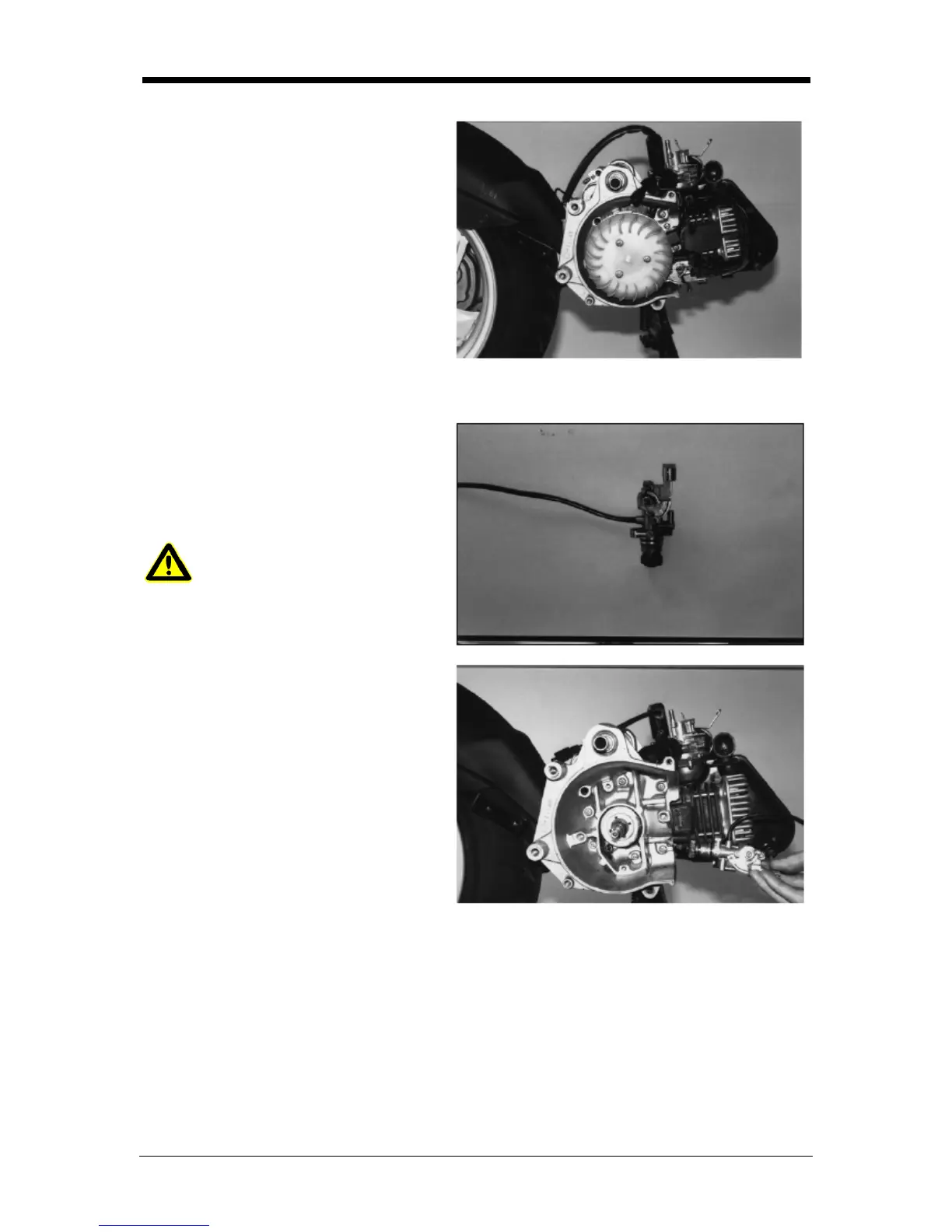

OIL PUMP LB-3
REMOVAL
Remove the underside paneling.
Remove the fan cover, the impeller, and the
generator.
Remove the oil leads.
After removing the supply line from the oil
reservoir and the delivery line, which leads
to the carburetor, both lines must be plugged
with suitable plugs so that no oil can flow
out.
Unhook the oil pump control cable.
Loosen the fastening screws of the oil pump
and remove the oil pump.
INSPECTION
Check the oil pump for leakage.
Check the O-ring, the drive sprocket and the
shaft seal for wear and damage.
Check the driving tab for wear.
Do not dismantle the oil pump!
INSTALLATION
The O-ring seal has to be replaced prior to
reinstalling. Provide the O-ring with clean
oil.
Mount the oil pump in reverse order.
